Polaris•Schematic assembly

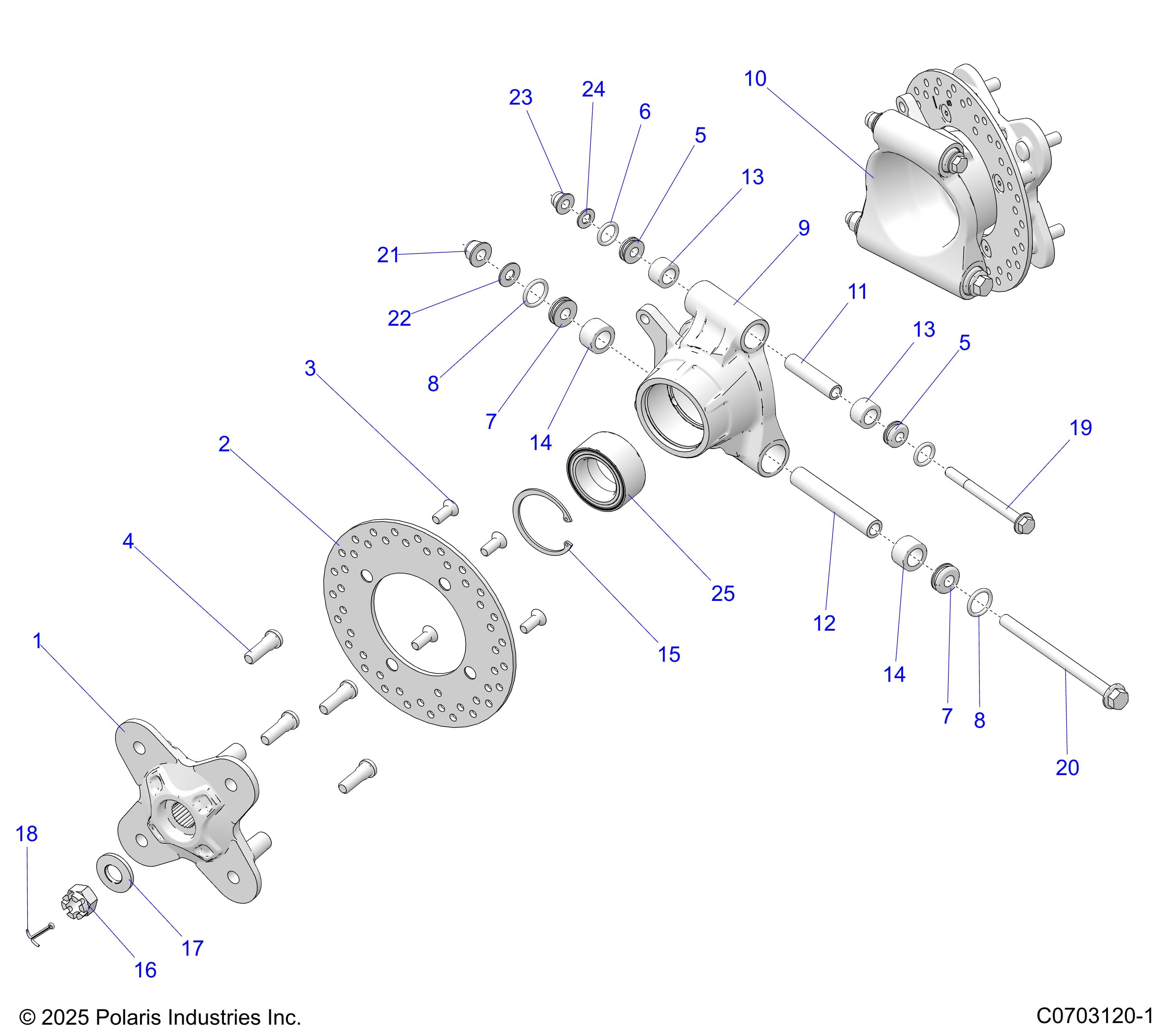

SUSPENSION, REAR CARRIER
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 220908
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 32 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5142019-458 | HUB-WHEEL,MACH,BLK | 2 | Price TBD | Out of stock | |
| 2 | 5263266 | ROTOR,BRAKE | 2 | Price TBD | Out of stock | |
| 3 | 7518978 | SCR-M10X1.5X20 8.8 TXCS FL ZOD | 8 | Price TBD | Out of stock | |
| 4 | 7519753 | STUD-WHEEL,M12-1.5 | 8 | Price TBD | Out of stock | |
| 5 | 1543611 | ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING] | 4 | Price TBD | Out of stock | |
| 5 | 5139968 | CAP-PIVOT SEAL,M10 | 4 | Price TBD | Out of stock | |
| 5 | 1543611 | ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING] | 4 | Price TBD | Out of stock | |
| 5 | 5139968 | CAP-PIVOT SEAL,M10 | 4 | Price TBD | Out of stock | |
| 6 | 5415653 | O-RING,2-210 | 4 | Price TBD | Out of stock | |
| 7 | 1543612 | ASM-PIVOT CAP, SEALED, M12 [INCLUDES CAP & O-RING] | 4 | Price TBD | Out of stock | |
| 7 | 5139992 | CAP-PIVOT SEAL,M12 | 4 | Price TBD | Out of stock | |
| 7 | 1543612 | ASM-PIVOT CAP, SEALED, M12 [INCLUDES CAP & O-RING] | 4 | Price TBD | Out of stock | |
| 7 | 5139992 | CAP-PIVOT SEAL,M12 | 4 | Price TBD | Out of stock | |
| 8 | 5415654 | O-RING,2-213 | 8 | Price TBD | Out of stock | |
| 9 | 5139979 | CARRIER, BEARING, WHEEL, LH | 1 | Price TBD | Out of stock | |
| 10 | 5139980 | CARRIER, BEARING, WHEEL, RH | 1 | Price TBD | Out of stock | |
| 11 | 5139990 | SHAFT-PIVOT, SHORT, M10 | 2 | Price TBD | Out of stock | |
| 12 | 5139991 | SHAFT-PIVOT, LONG, M12 | 2 | Price TBD | Out of stock | |
| 13 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 4 | Price TBD | Out of stock | |
| 14 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 4 | Price TBD | Out of stock | |
| 15 | 7710440 | RING-RETAINING,2.875,INTERNAL | 2 | Price TBD | Out of stock | |
| 16 | 7547337 | NUT-M18X1.5,CASTLE,ZINC/YELLOW | 2 | Price TBD | Out of stock | |
| 17 | 7557134 | WSHR-AXLE,M18,42X4.5 | 1 | Price TBD | Out of stock | |
| 18 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 2 | Price TBD | Out of stock | |
| 19 | 7519365 | SCR-HXFL-M10X1.25X115 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 20 | 7520294 | SCR-HXFL-M12X1.5X170 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 21 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 22 | 7556212 | WASHER-7/16 SAE,STF,THRU-HRD-Y | 2 | Price TBD | Out of stock | |
| 23 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 24 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 2 | Price TBD | Out of stock | |
| 25 | 3514924 | BEARING-BALL,SEALED,44X72X33.1 | 2 | Price TBD | Out of stock | |
| 25 | 3515090 | BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL] | 2 | Price TBD | Out of stock |
