Schematic diagram
Polaris•Schematic assembly

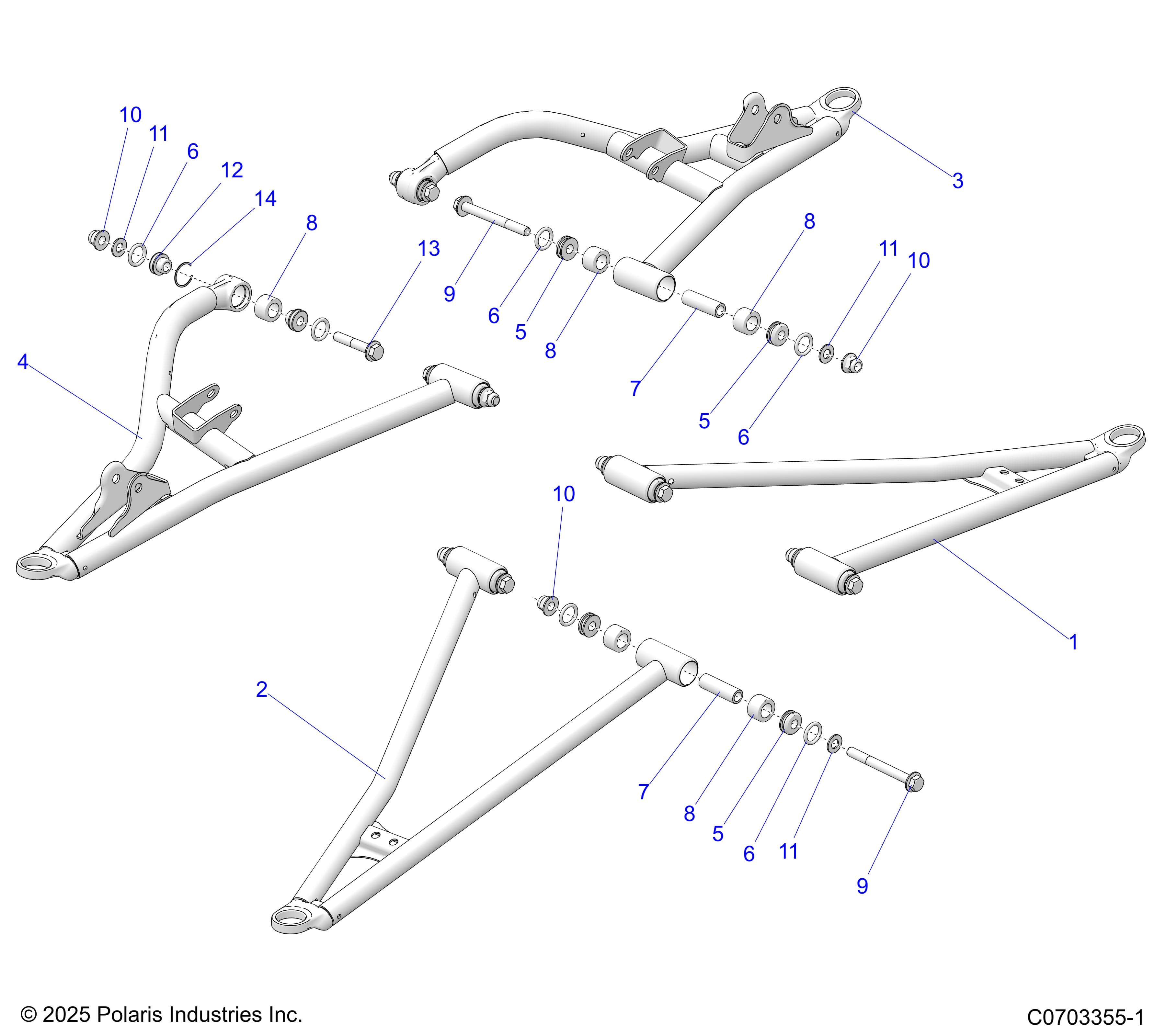

SUSPENSION, FRONT CONTROL ARMS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 220912
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 20 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1021416-458 | WELD-CTRL ARM,LWR,FRT,LH,60,BL | 1 | Price TBD | Out of stock | |
| 2 | 1021417-458 | WELD-CTRL ARM,LWR,FRT,RH,60,BL | 1 | Price TBD | Out of stock | |
| 3 | 1023223-458 | WELD-CTRL ARM,UPR,FRT,LH,60,BK | 1 | Price TBD | Out of stock | |
| 4 | 1023224-458 | WELD-CTRL ARM,UPR,FRT,RH,60,BK | 1 | Price TBD | Out of stock | |
| 5 | 1543611 | ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING] | 12 | Price TBD | Out of stock | |
| 5 | 5139968 | CAP-PIVOT SEAL,M10 | 12 | Price TBD | Out of stock | |
| 5 | 1543611 | ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING] | 12 | Price TBD | Out of stock | |
| 5 | 5139968 | CAP-PIVOT SEAL,M10 | 12 | Price TBD | Out of stock | |
| 5 | 1543611 | ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING] | 12 | Price TBD | Out of stock | |
| 5 | 5139968 | CAP-PIVOT SEAL,M10 | 12 | Price TBD | Out of stock | |
| 6 | 5415653 | O-RING,2-210 | 12 | Price TBD | Out of stock | |
| 7 | 5144658 | SHAFT-PIVOT,SHORT,M10 | 2 | Price TBD | Out of stock | |
| 8 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 14 | Price TBD | Out of stock | |
| 9 | 7519043 | SCR-HXFL-M10X1.25X95 10.9 ZOD | 6 | Price TBD | Out of stock | |
| 10 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 8 | Price TBD | Out of stock | |
| 11 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 8 | Price TBD | Out of stock | |
| 12 | 1543735 | ASM-PIVOT CAP,SEALED,SLIM,M10 [INCLUDES CAP & O-RING] | 4 | Price TBD | Out of stock | |
| 12 | 5140343 | CAP-PIVOT SEAL,M10,SLIM | 4 | Price TBD | Out of stock | |
| 13 | 7519285 | SCR-HXFL-M10X1.25X55 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 14 | 7710845 | 28MM SPIRAL RING,STEEL | 2 | Price TBD | Out of stock |
