Schematic diagram
Polaris•Schematic assembly
BRAKES, BRAKE LINES AND MASTER CYLINDER
Product Description

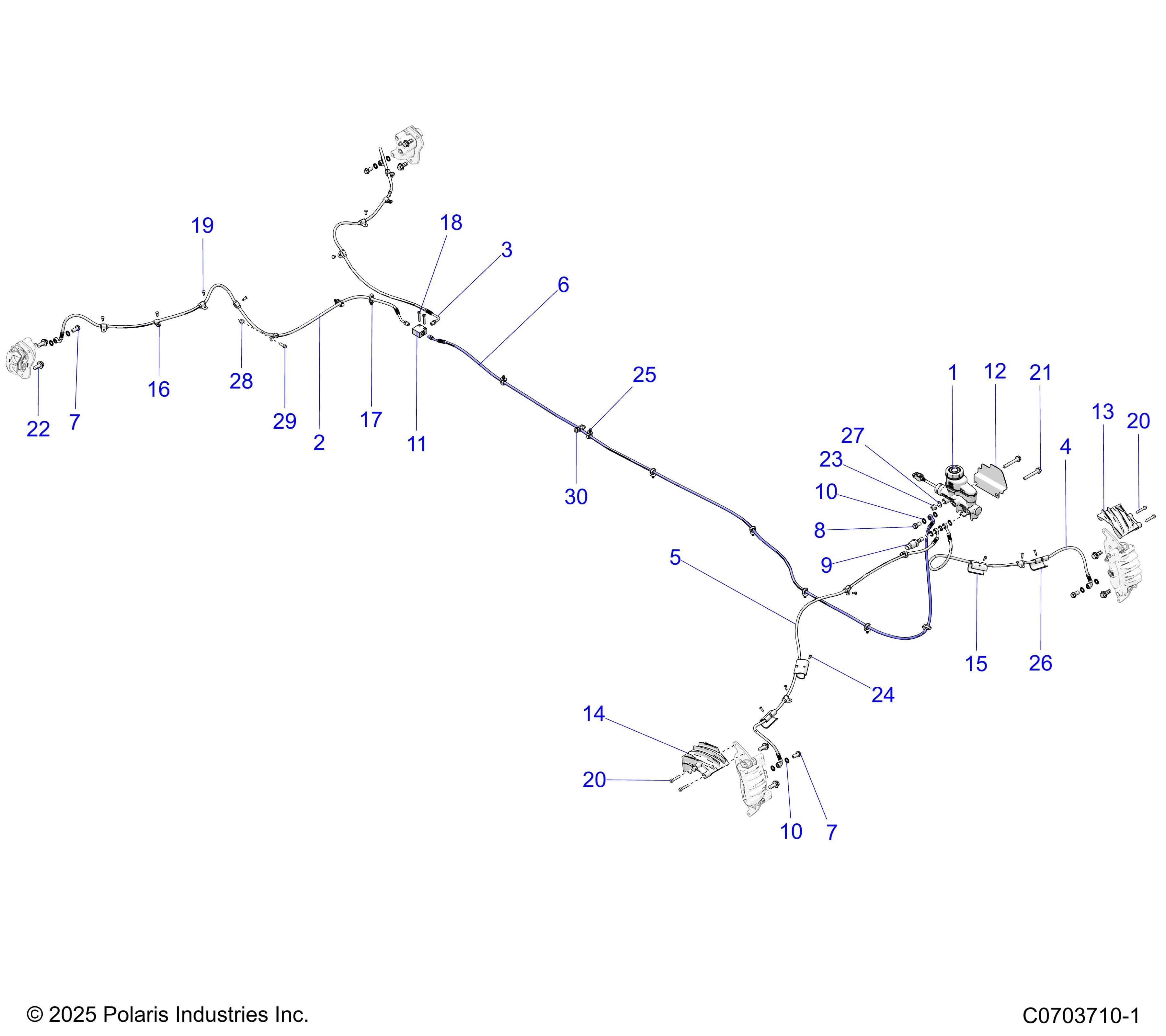

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 PREMIUM Assembly ID: 224717
Vehicle Compatibility
- 2026 Polaris GENERAL XP4 1000 PREMIUM
Checkout Note
Please note that 22 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1911982 | ASM., MASTER CYLINDER, TANDEM [INCLUDES 30-32] | 1 | $164.99 | In stock | |
| 2 | 1913525 | LINE-BRK,RR,59,30F,90D75G,55�J | 1 | $99.99 | In stock | |
| 3 | 1913524 | LINE-BRK,RL,45,90F,90D165G,16� | 1 | $84.99 | In stock | |
| 4 | 1913522 | LINE-BRK,FL,36,20B,90SB,160�J | 1 | $79.99 | In stock | |
| 5 | 1913523 | LINE-BRK,FR,49,70B,90SB,236�J | 1 | $94.99 | In stock | |
| 6 | 1913595 | LINE-BRK,MCT,107,70B,20F,301�J | 1 | $104.99 | In stock | |
| 7 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 4 | Price TBD | Out of stock | |
| 8 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | Price TBD | Out of stock | |
| 9 | 4081117 | SWITCH-BRK,M10X1.25,DBL | 1 | Price TBD | Out of stock | |
| 10 | 5413212 | SEAL-STAT-0-3/8, 70EP | 13 | Price TBD | Out of stock | |
| 11 | 7052293 | FITTING-TEE,BRAKE | 1 | Price TBD | Out of stock | |
| 12 | 5259049 | SHIELD, MASTER CYLINDER | 1 | Price TBD | Out of stock | |
| 13 | 5633829 | SCRAPER,RZR,T,FRONT,LH | 1 | $39.99 | In stock | |
| 14 | 5633830 | SCRAPER,RZR,T,FRONT,RH | 1 | $39.99 | In stock | |
| 15 | 5451487 | CLIP, BRAKE LINE, INNER | 2 | Price TBD | Out of stock | |
| 16 | 7081246 | CLAMP, WIRE/TUBE .25 DIA | 2 | Price TBD | Out of stock | |
| 17 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 2 | Price TBD | Out of stock | |
| 18 | 7512025 | SCR-10-24X1.25TFM PN TRX TRI-Y | 2 | Price TBD | Out of stock | |
| 19 | 7621432 | RIVET-POP 3/16(.126-.250)-ST-B | 8 | Price TBD | Out of stock | |
| 20 | 7519280 | SCR-HXFL-M6X1.0X35, W/PATCHLOK | 4 | Price TBD | Out of stock | |
| 21 | 7519298 | SCR-HXFL-M8X1.25X60 8.8 ZOD | 2 | Price TBD | Out of stock | |
| 22 | 7518760 | SCR-HXFL-M10X1.25X25 8.8 Z NY | 8 | Price TBD | Out of stock | |
| 23 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 24 | 7621323 | RIVET-POP 5/32(.251-.375)-ST-B | 7 | Price TBD | Out of stock | |
| 25 | 7662310 | CLIP-NYLON, C, FIR-TREE | 8 | Price TBD | Out of stock | |
| 26 | 5451488 | CLIP, BRAKE LINE, OUTER | 2 | Price TBD | Out of stock | |
| 27 | 7555954 | WSHR-.344X.750X.062-Y | 2 | Price TBD | Out of stock | |
| 28 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 29 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 1 | Price TBD | Out of stock | |
| 30 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | Price TBD | Out of stock |
