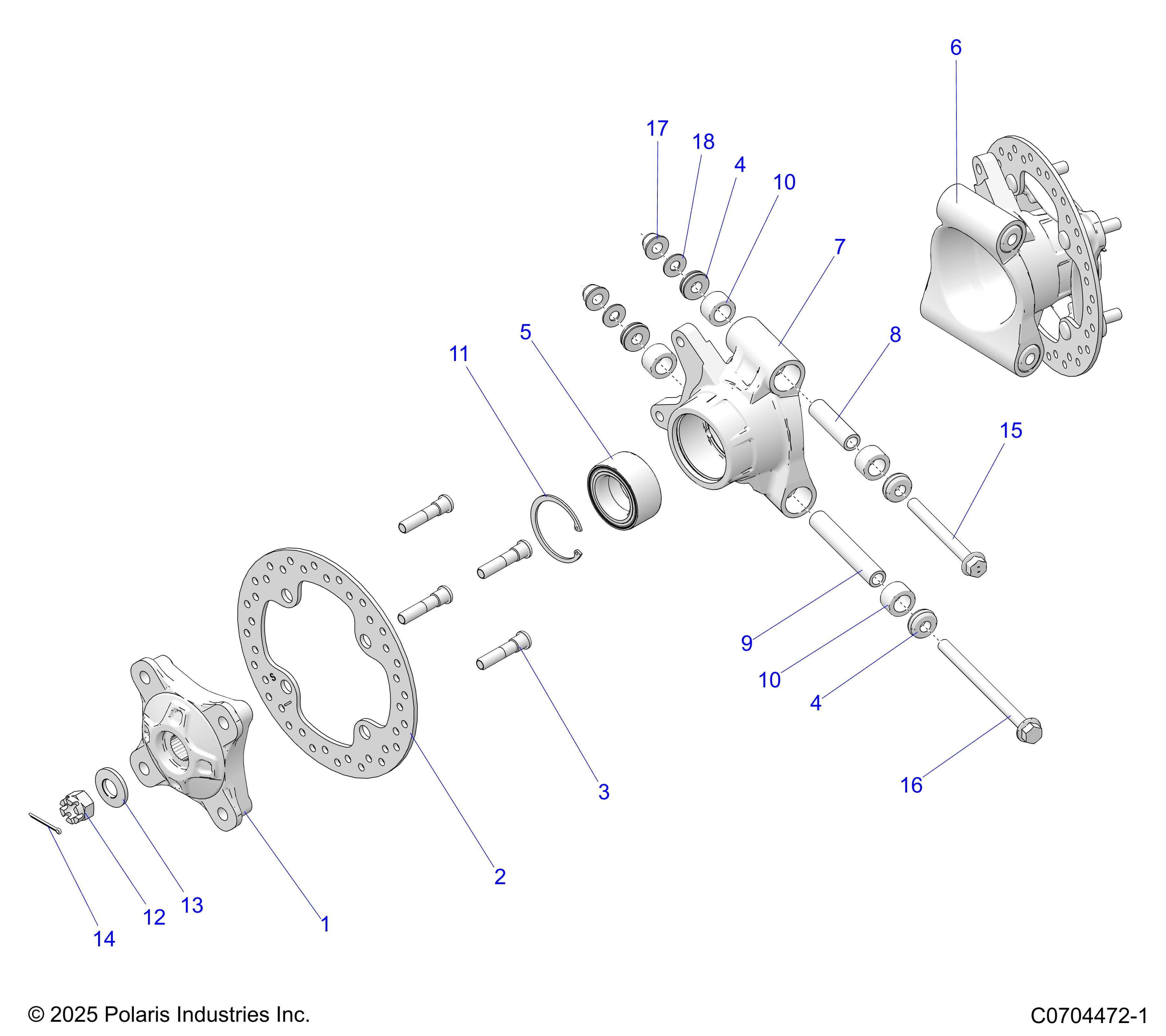

2026 GENERAL XP4 1000 PREMIUM — SUSPENSION, REAR CARRIER diagram

Schematic diagram

Polaris•Schematic assembly

SUSPENSION, REAR CARRIER

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 PREMIUM Assembly ID: 224727

Vehicle Compatibility

  • 2026 Polaris GENERAL XP4 1000 PREMIUM

Checkout Note

Please note that 20 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
15142020-067HUB-WHEEL,MACH,BLK2$144.99
In stock
25257196DISC, BRAKE2Price TBD
Out of stock
37519792STUD-WHEEL,M12-1.58Price TBD
Out of stock
41543612ASM-PIVOT CAP, SEALED, M128Price TBD
Out of stock
45139992CAP-PIVOT SEAL,M128Price TBD
Out of stock
45415654O-RING,2-2138Price TBD
Out of stock
41543612ASM-PIVOT CAP, SEALED, M128Price TBD
Out of stock
45139992CAP-PIVOT SEAL,M128Price TBD
Out of stock
45415654O-RING,2-2138Price TBD
Out of stock
53514924BEARING-BALL,SEALED,44X72X33.12Price TBD
Out of stock
53515090BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]2Price TBD
Out of stock
65142720CARRIER-BEARING,WHEEL,LH1$124.99
In stock
75142721CARRIER-BEARING,WHEEL,RH1$124.99
In stock
85341799TUBE-PIVOT,LONG,SEALED,M122$39.99
Out of stock
Est. Aug 3, 2026
95139991SHAFT-PIVOT, LONG, M122Price TBD
Out of stock
105452271BUSHING-STANDARD, SUSP, M124Price TBD
Out of stock
117710440RING-RETAINING,2.875,INTERNAL2Price TBD
Out of stock
127547337NUT-M18X1.5,CASTLE,ZINC/YELLOW2Price TBD
Out of stock
137557134WSHR-AXLE,M18,42X4.52Price TBD
Out of stock
147661404PIN-COTTER 1/8X1 1/2-Y2Price TBD
Out of stock
157521137SCR-HXFL-M12X1.5X120 10.9 ZFB2$8.99
In stock
167520294SCR-HXFL-M12X1.5X170 10.9 ZOD2Price TBD
Out of stock
177547334NUT-M12X1.5, FLG, NYLOC-OLIVE D2Price TBD
Out of stock
187556287WSHR-13.0X24.0X2.5 ZPC4Price TBD
Out of stock
