Polaris•Schematic assembly
ELECTRICAL, COMPONENTS AND OPTIONS
Product Description

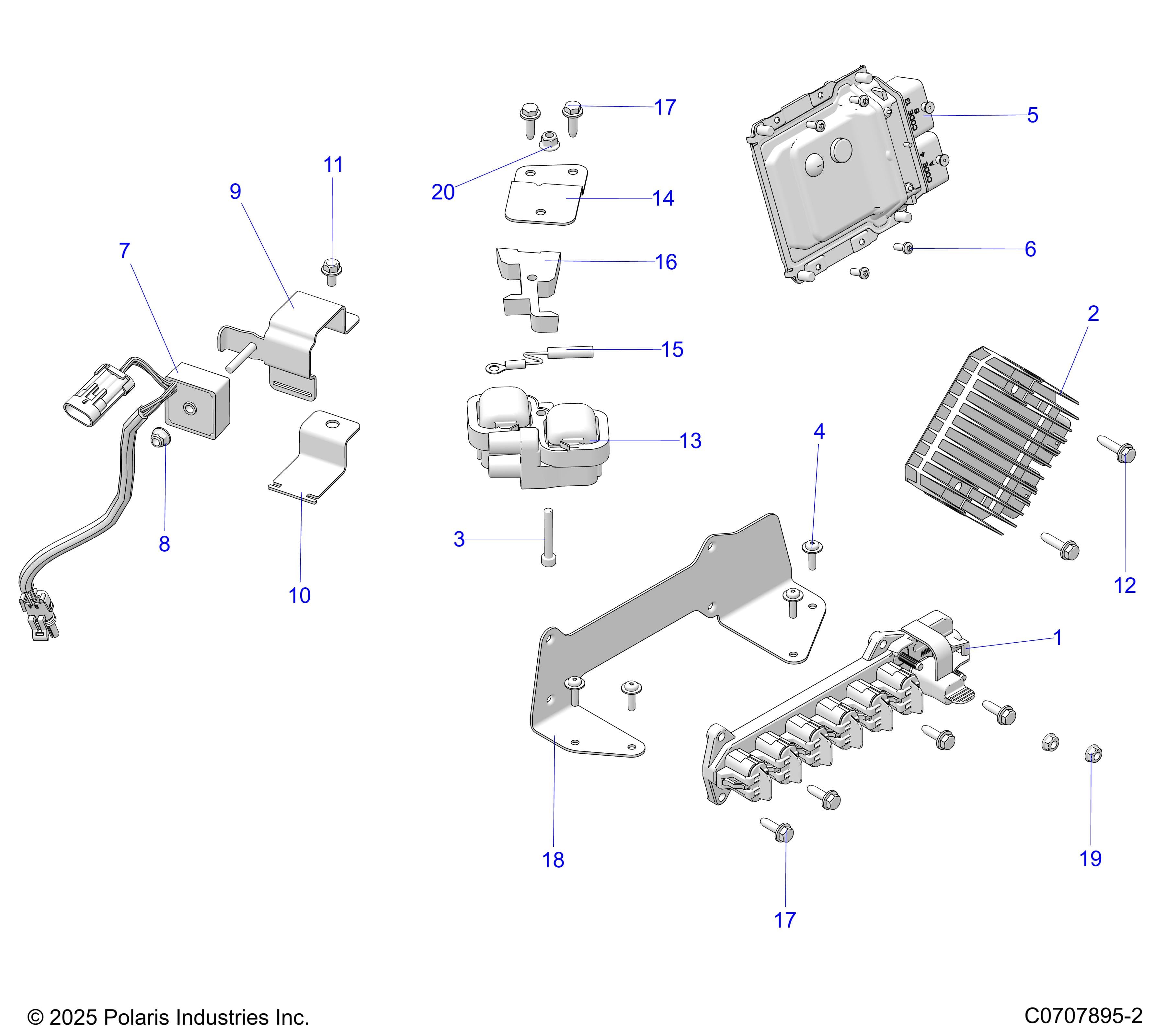

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 PREMIUM Assembly ID: 224741
Vehicle Compatibility
- 2026 Polaris GENERAL XP4 1000 PREMIUM
Checkout Note
Please note that 17 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4016007 | BLOCK-TERMINAL,3 POST,TALL | 1 | Price TBD | Out of stock | |
| 1 | 4013891 | FUSE-CARTRIDGE,40A | 1 | Price TBD | Out of stock | |
| 1 | 5454283 | PLUG,ACCY TB | 6 | Price TBD | Out of stock | |
| 1 | 5454284 | COVER,TB,JCASE | 1 | Price TBD | Out of stock | |
| 2 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | Price TBD | Out of stock | |
| 3 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | Price TBD | Out of stock | |
| 4 | 7518196 | SCR-10-24X3/4 PH/TX/TRI-SEMS Y | 4 | Price TBD | Out of stock | |
| 5 | 4014125 | ECM-HARD,ME17,2CYL,250K [DEALER INSTALL REQUIRED] | 1 | Price TBD | Out of stock | |
| 6 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | Price TBD | Out of stock | |
| 7 | 4081742 | RELAY-SOLID STATE,9A | 1 | $94.99 | In stock | |
| 8 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | Price TBD | Out of stock | |
| 9 | 5267577-458 | BRKT-RELAY,INNER MOUNT,BLK | 1 | $34.99 | In stock | |
| 10 | 5267578-458 | BRKT-RELAY,OUTER MOUNT,BLK | 1 | $29.99 | In stock | |
| 11 | 7517704 | SCREW-HXFL-M6X1.0X12 8.8 ZPB | 1 | $8.99 | In stock | |
| 12 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | Price TBD | Out of stock | |
| 13 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 14 | 5260553 | BRKT-COIL MOUNT | 1 | $17.99 | In stock | |
| 15 | 4014422 | JUMPER, COIL GROUND | 1 | Price TBD | Out of stock | |
| 16 | 5436577 | SPACER-COIL MOUNT | 1 | Price TBD | Out of stock | |
| 17 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 6 | Price TBD | Out of stock | |
| 18 | 5266257-458 | BRKT-MOUNT,PULSE,BLK | 1 | $34.99 | In stock | |
| 19 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | Price TBD | Out of stock | |
| 20 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | Price TBD | Out of stock |
