Polaris•Schematic assembly
ENGINE, COOLING SYSTEM
Product Description

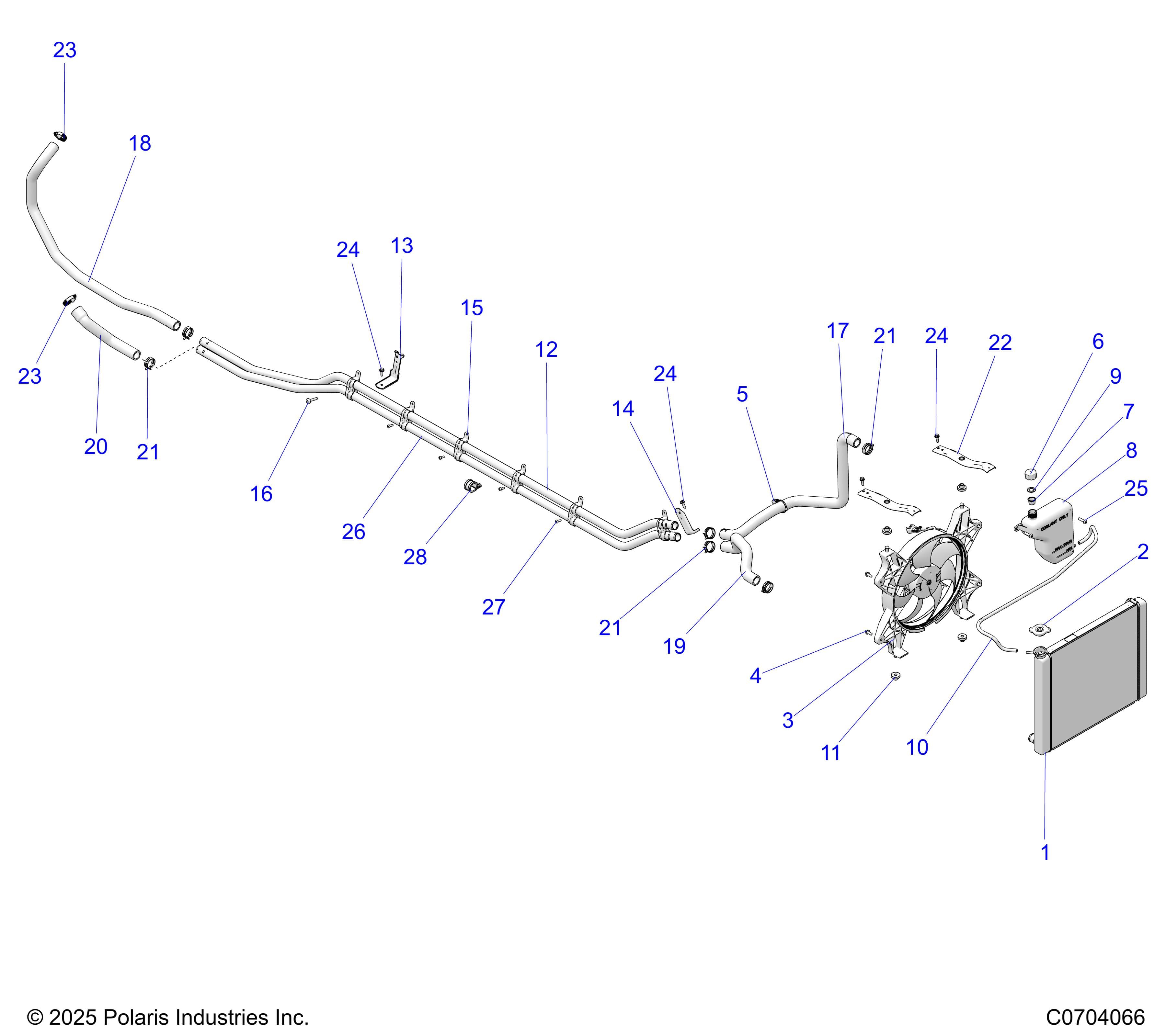

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 PREMIUM Assembly ID: 225044
Vehicle Compatibility
- 2026 Polaris GENERAL XP4 1000 PREMIUM
Checkout Note
Please note that 23 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1241123 | ASM., RADIATOR [INCLUDES 1-4] | 1 | Price TBD | Out of stock | |
| 1 | 1241135 | ASM., RADIATOR, CORE | 1 | $619.99 | In stock | |
| 2 | 1240694 | CAP | 1 | Price TBD | Out of stock | |
| 3 | 2413044 | FAN, ASM. | 1 | $419.99 | In stock | |
| 4 | 7518591 | SCREW-HXFL-M6X1.0X16 8.8 ZPB | 4 | Price TBD | Out of stock | |
| 5 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 6 | 5430743 | CAP-OVER FLOW BOTTLE,DRILLED | 1 | Price TBD | Out of stock | |
| 7 | 5433774 | PLUG-CAP 9X(GREEN) FLEX TEMP | 1 | Price TBD | Out of stock | |
| 8 | 5439202 | TANK-SURGE | 1 | Price TBD | Out of stock | |
| 9 | 5810279 | GASKET-OVERFLOW CAP | 1 | Price TBD | Out of stock | |
| 10 | 8450003-95 | FUEL LINE-95 CENTIMETERS | 0 | Price TBD | Out of stock | |
| 11 | 7052028 | GROMMET-FLANGED,.36X.56X1.06 | 4 | Price TBD | Out of stock | |
| 12 | 5347091 | TUBE-COOLANT,1" | 1 | Price TBD | Out of stock | |
| 13 | 5259433-329 | BRACKET, COOLANT TUBE, BLACK | 1 | Price TBD | Out of stock | |
| 14 | 5260766-329 | BRACKET, COOLANT TUBE, BLACK | 1 | Price TBD | Out of stock | |
| 15 | 5451221 | BRACKET-COOLANT TUBE | 6 | Price TBD | Out of stock | |
| 16 | 7519001 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 2 | Price TBD | Out of stock | |
| 17 | 5417056 | HOSE, UPPER, RADIATOR | 1 | $59.99 | In stock | |
| 18 | 5415451 | HOSE, ENGINE OUTLET, REAR | 1 | Price TBD | Out of stock | |
| 19 | 5414532 | HOSE, LOWER, RADIATOR, LONG | 1 | Price TBD | Out of stock | |
| 20 | 5415452 | HOSE-ENGINE INLET | 1 | $39.99 | In stock | |
| 21 | 7080844 | SPRINGBAND-CLAMP 35/12,BLK | 6 | Price TBD | Out of stock | |
| 22 | 5263390-329 | BRACKET, UPPER RADIATOR MOUNT, BLACK [TO 2/17/2025] | 2 | $44.99 | In stock | |
| 22 | 5276402 | BRKT-UPR RAD MNT [FROM 2/17/2025] | 2 | $44.99 | In stock | |
| 23 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | Price TBD | Out of stock | |
| 24 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 25 | 7518158 | SCR-#14X1 HI/LO-PH-PN TRX-M | 2 | Price TBD | Out of stock | |
| 26 | 5347092 | TUBE-COOLANT,1" | 1 | Price TBD | Out of stock | |
| 27 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 4 | Price TBD | Out of stock | |
| 28 | 7082306 | CLIP-P,1IN | 1 | $9.99 | In stock |
