Schematic diagram
Polaris•Schematic assembly

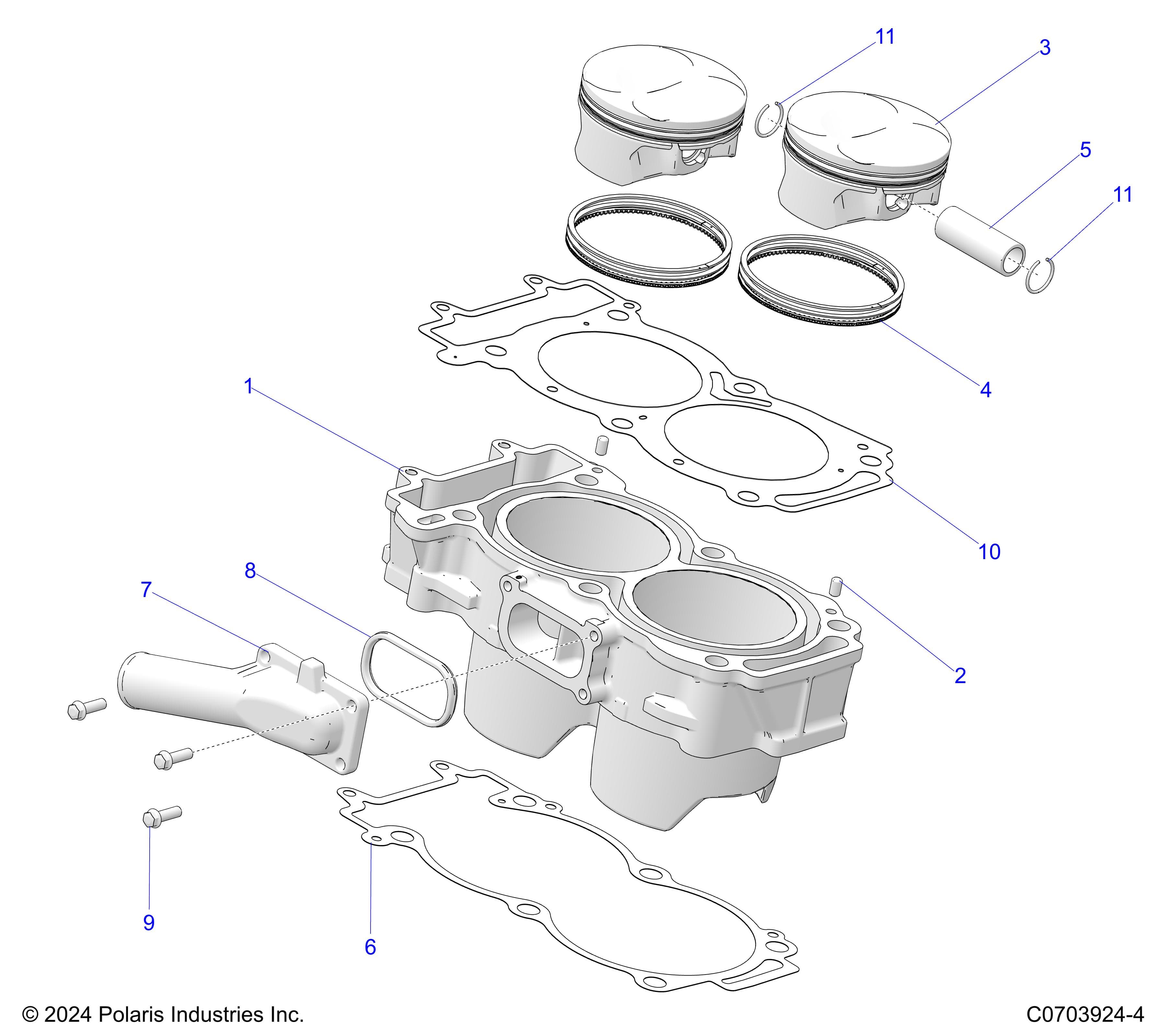

ENGINE, CYLINDER AND PISTON
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 225211
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023156 | ASM-CYLINDER,999 [INCLUDES 2] | 1 | Price TBD | Out of stock | |
| 2 | 5132835 | PIN-DOWEL,M6X10 | 2 | Price TBD | Out of stock | |
| 3 | 2205244 | KIT-PISTON 3022567 [INCLUDES 4,5,11] | 2 | Price TBD | Out of stock | |
| 3 | 3022567 | ASM-PISTON | 2 | Price TBD | Out of stock | |
| 4 | 2205245 | KIT-PISTON RINGS | 2 | Price TBD | Out of stock | |
| 5 | 3022358 | PIN-PISTON | 2 | Price TBD | Out of stock | |
| 6 | 5272970 | GASKET-BASE,2 CYL | 1 | Price TBD | Out of stock | |
| 7 | 5632557 | COVER-WATER INLET,CAST | 1 | Price TBD | Out of stock | |
| 8 | 5813736 | GASKET-WATER,INLET | 1 | Price TBD | Out of stock | |
| 9 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 3 | Price TBD | Out of stock | |
| 10 | 5814793 | GASKET-CYLINDER,HEAD | 1 | Price TBD | Out of stock | |
| 11 | 3022413 | RING-RTG,ROUND,20.0X1.6 | 4 | Price TBD | Out of stock |
