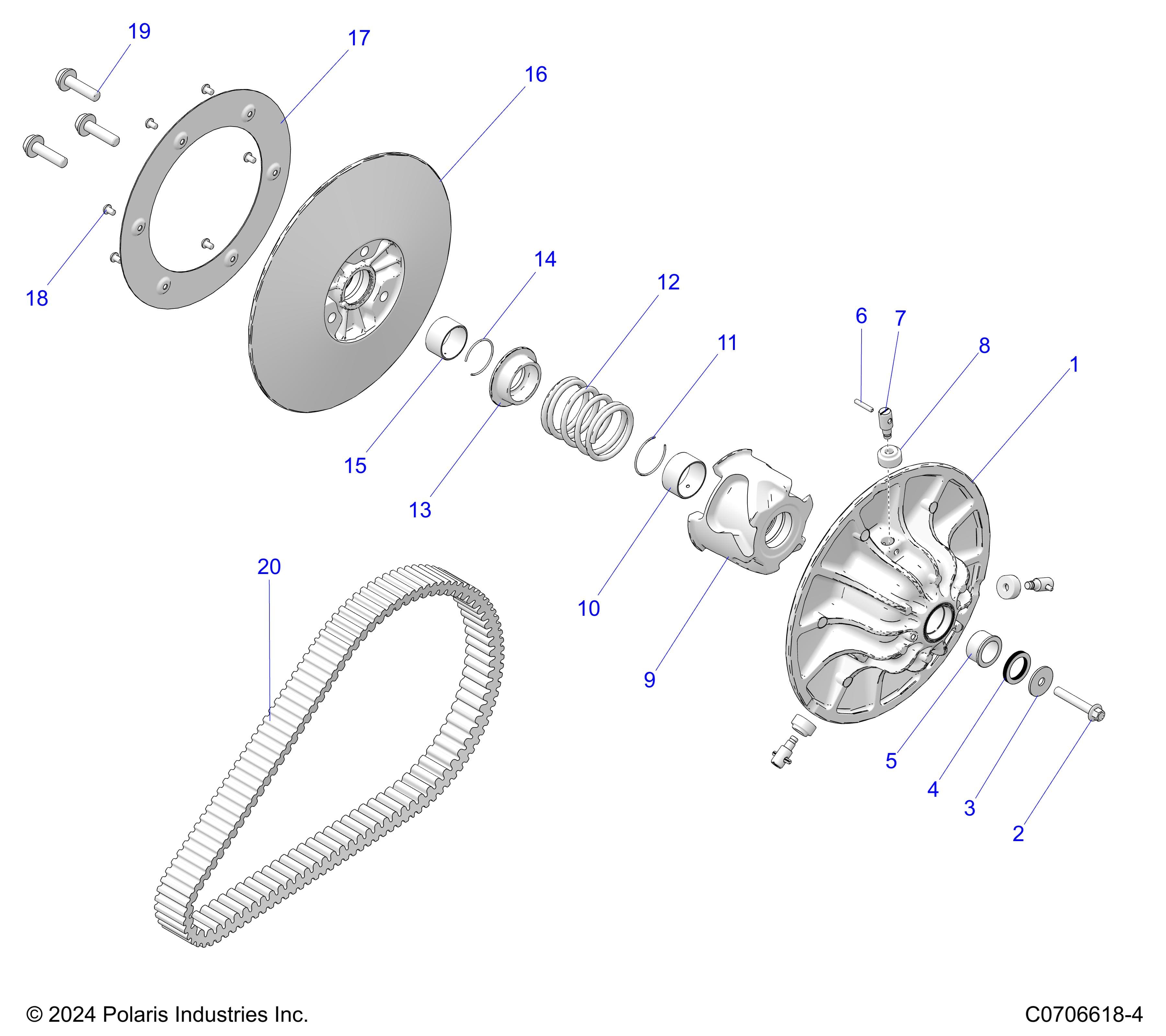

Schematic diagram
Polaris•Schematic assembly
DRIVE TRAIN, SECONDARY CLUTCH
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 226414
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 19 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1327121 | ASM-DRIVEN,STAT,P90X,HD [INCLUDES 5-8] | 1 | Price TBD | Out of stock | |
| 2 | 7521306 | SCR-HXFL-M8X1.25X50 10.9 ZPB | 1 | Price TBD | Out of stock | |
| 3 | 7556219 | WSHR-8.4X30. 0X2.0 ZPB | 1 | Price TBD | Out of stock | |
| 4 | 7557060 | SHIM-RING,23.25X32.25X0.5 | 0 | Price TBD | Out of stock | |
| 5 | 5141303 | BUSHING-P90X,29X22X17 | 1 | Price TBD | Out of stock | |
| 6 | 7662377 | SPRING-PIN-4X22,JIS B 2808 | 1 | Price TBD | Out of stock | |
| 7 | 5143130 | PIN-DRIVEN,ROLLER,12MM,CAP | 1 | Price TBD | Out of stock | |
| 8 | 5456608 | ROLLER-8X22X12.5,PAI,CAP | 2 | Price TBD | Out of stock | |
| 9 | 1323729 | ASM-HELIX,MACH,38-42F-BA65 [INCLUDES 10-11] | 1 | $89.99 | In stock | |
| 10 | 3515175 | BEARING-MU,35X20 | 2 | Price TBD | Out of stock | |
| 11 | 7710934 | RING-SNAP,INT,39X1.5 | 1 | Price TBD | Out of stock | |
| 12 | 7045644 | SPRING-DRIVEN,160-230 | 1 | $44.99 | In stock | |
| 13 | 5634403 | CUP-DRIVEN SPRING,P90X | 2 | Price TBD | Out of stock | |
| 14 | 7710935 | RING-SNAP,INT,36X1.5 | 2 | Price TBD | Out of stock | |
| 15 | 3515162 | BEARING-MU,32X36X20 | 1 | Price TBD | Out of stock | |
| 16 | 1327357 | ASM-DRIVEN,MOVEABLE,P90X,HD [INCLUDES 9-19] | 1 | $329.99 | In stock | |
| 16 | 1323812 | ASM-MOVEABLE SHEAVE [INCLUDES 14-16] | 1 | Price TBD | Out of stock | |
| 17 | 5269528 | PLATE-WINDAGE,DRIVE | 1 | Price TBD | Out of stock | |
| 18 | 7521023 | SCR-TXBH-M5X0.8X8 SPC TRILOBE | 6 | Price TBD | Out of stock | |
| 19 | 7521294 | SCR-HHSEMS-M10X1.5X40 10.9 SPC | 3 | Price TBD | Out of stock | |
| 20 | 3211186 | BELT-DRIVE | 1 | Price TBD | Out of stock | |
| 20 | 3212358 | BELT-DRIVE,12.1CD,HDY HD BELT | 1 | Price TBD | Out of stock |
