Polaris•Schematic assembly

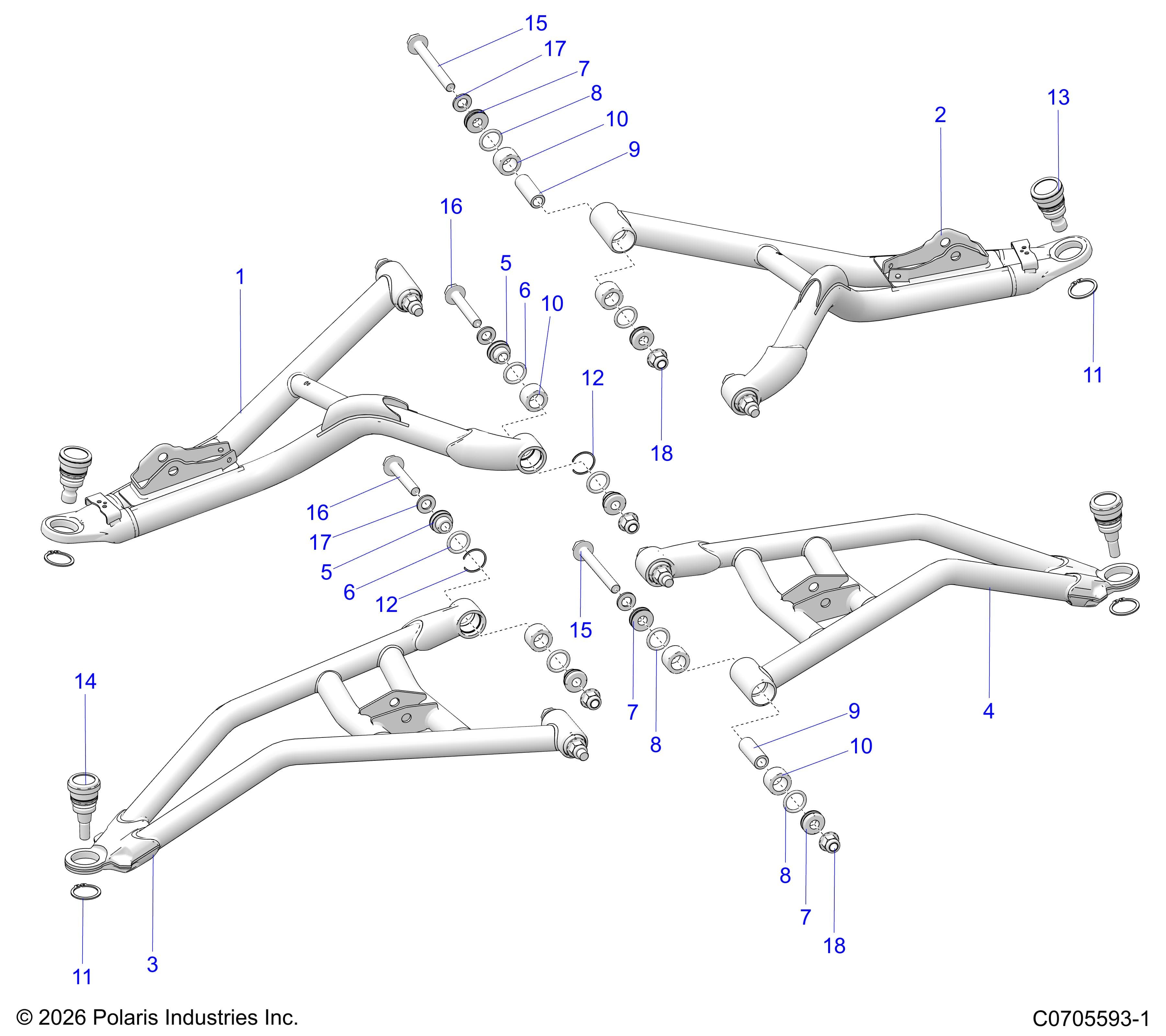

SUSPENSION, FRONT CONTROL ARMS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 226437
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 17 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1544461-458 | ASM-UCA,FRONT,LH,LOADED,BLK [INCLUDES 1 & 5-13] | 1 | $459.99 | In stock | |
| 1 | 1544377-458 | WELD-CTRL ARM,FR,UPR,LH,BLK [CONTROL ARM ONLY] | 1 | $299.99 | In stock | |
| 2 | 1544462-458 | ASM-UCA,FRONT,RH,LOADED,BLK [INCLUDES 2 & 5-13] | 1 | $459.99 | In stock | |
| 2 | 1544378-458 | WELD-CTRL ARM,FR,UPR,RH,BLK [CONTROL ARM ONLY] | 1 | $299.99 | In stock | |
| 3 | 1544463-458 | ASM-LCA,FRONT,LH,LOADED,BLK [INCLUDES 3, 5-12 & 14] | 1 | $369.99 | In stock | |
| 3 | 1544379-458 | WELD-CTRL ARM,FR,LWR,LH,64,BLK [CONTROL ARM ONLY] | 1 | $209.99 | In stock | |
| 4 | 1544464-458 | ASM-LCA,FRONT,RH,LOADED,BLK [INCLUDES 4-12 & 14] | 1 | $369.99 | In stock | |
| 4 | 1544380-458 | WELD-CTRL ARM,FR,LWR,RH,64,BLK [CONTROL ARM ONLY] | 1 | $209.99 | In stock | |
| 5 | 1543998 | ASM-PIVOT CAP,SEALED,M12,MINI [INCLUDES O-RING] | 8 | Price TBD | Out of stock | |
| 5 | 5141426 | CAP-PIVOT SEAL,M12,MINI [CAP ONLY] | 8 | Price TBD | Out of stock | |
| 5 | 1543998 | ASM-PIVOT CAP,SEALED,M12,MINI [INCLUDES O-RING] | 8 | Price TBD | Out of stock | |
| 5 | 5141426 | CAP-PIVOT SEAL,M12,MINI [CAP ONLY] | 8 | Price TBD | Out of stock | |
| 6 | 5415654 | O-RING,2-213 | 8 | Price TBD | Out of stock | |
| 7 | 1545138 | ASM-PIVOT CAP,SEALED,M12 [INCLUDES O-RING] | 8 | $8.99 | In stock | |
| 7 | 5139992 | CAP-PIVOT SEAL,M12 [CAP ONLY] | 8 | Price TBD | Out of stock | |
| 7 | 1545138 | ASM-PIVOT CAP,SEALED,M12 [INCLUDES O-RING] | 8 | $8.99 | In stock | |
| 7 | 5139992 | CAP-PIVOT SEAL,M12 [CAP ONLY] | 8 | Price TBD | Out of stock | |
| 7 | 1545138 | ASM-PIVOT CAP,SEALED,M12 [INCLUDES O-RING] | 8 | $8.99 | In stock | |
| 7 | 5139992 | CAP-PIVOT SEAL,M12 [CAP ONLY] | 8 | Price TBD | Out of stock | |
| 8 | 5418681 | O-RING,2-213,RED | 8 | $2.99 | In stock | |
| 9 | 5144660 | SHAFT-PIVOT,SHORT,M12 | 4 | Price TBD | Out of stock | |
| 10 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 12 | Price TBD | Out of stock | |
| 11 | 7710716 | RING-RTG,DSH-33ST | 4 | Price TBD | Out of stock | |
| 12 | 7710869 | 30MM SPIRAL RING,STEEL | 4 | Price TBD | Out of stock | |
| 13 | 7082892 | BALL-JOINT,HARDENED,HI-MISALGN | 2 | Price TBD | Out of stock | |
| 14 | 7083025 | BALL-JOINT | 2 | $59.99 | In stock | |
| 15 | 7521334-105 | SCR-HXFL-M12X1.75X105 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 16 | 7521334-70 | SCR-HXFL-M12X1.75X70 10.9,ZPC | 4 | Price TBD | Out of stock | |
| 17 | 7556287 | WSHR-13.0X24.0X2.5 ZPC | 8 | Price TBD | Out of stock | |
| 18 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 8 | Price TBD | Out of stock |
