Polaris•Schematic assembly

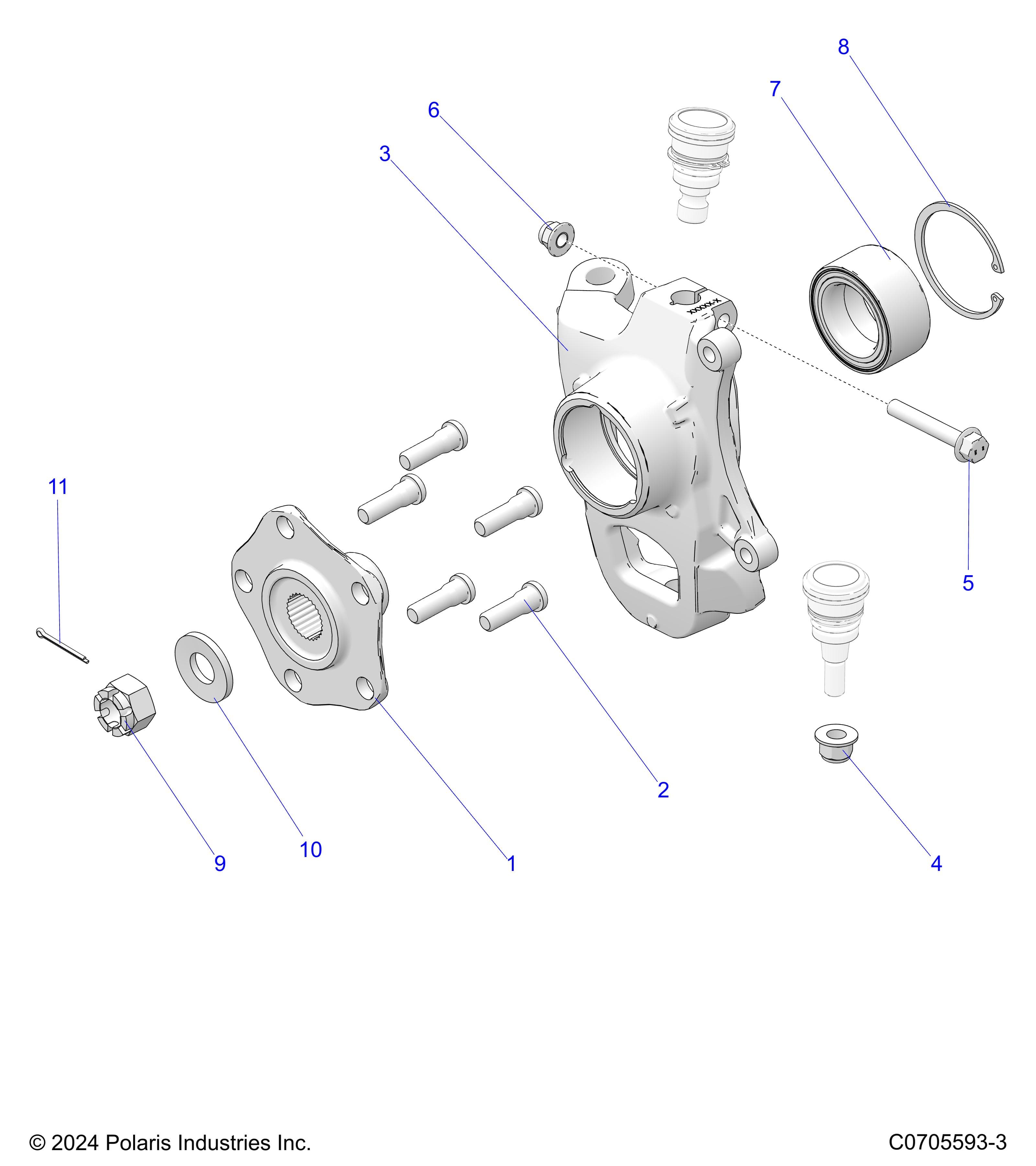

SUSPENSION, FRONT WHEEL HUB, KNUCKLE
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 226439
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1525112 | ASM-WHEEL HUB [INCLUDES STUDS] | 1 | Price TBD | Out of stock | |
| 2 | 7519753 | STUD-WHEEL,M12-1.5 | 5 | Price TBD | Out of stock | |
| 3 | 1523866 | ASM-KNUCKLE,RH,64 [INCLUDES 7 & 8] | 1 | $224.99 | Out of stock Est. Sep 1, 2026 | |
| 3 | 1523865 | ASM-KNUCKLE,LH,64 [INCLUDES 7 & 8] | 1 | $224.99 | In stock | |
| 4 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 1 | Price TBD | Out of stock | |
| 5 | 7521333-60 | SCR-HXFL-M10X1.5X60 10.9 ZFB | 1 | Price TBD | Out of stock | |
| 6 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 7 | 3514924 | BEARING-BALL,SEALED,44X72X33.1 | 1 | Price TBD | Out of stock | |
| 8 | 7710780 | RING-RETAINING,2.835,INTERNAL | 1 | Price TBD | Out of stock | |
| 9 | 7547949 | NUT-CASTLE-M20X1.5 ZFS | 1 | Price TBD | Out of stock | |
| 10 | 7557146 | WSHR-LOAD,21X45,5-5.6 | 1 | Price TBD | Out of stock | |
| 11 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 1 | Price TBD | Out of stock |
