Polaris•Schematic assembly
STEERING, STEERING ASM
Product Description

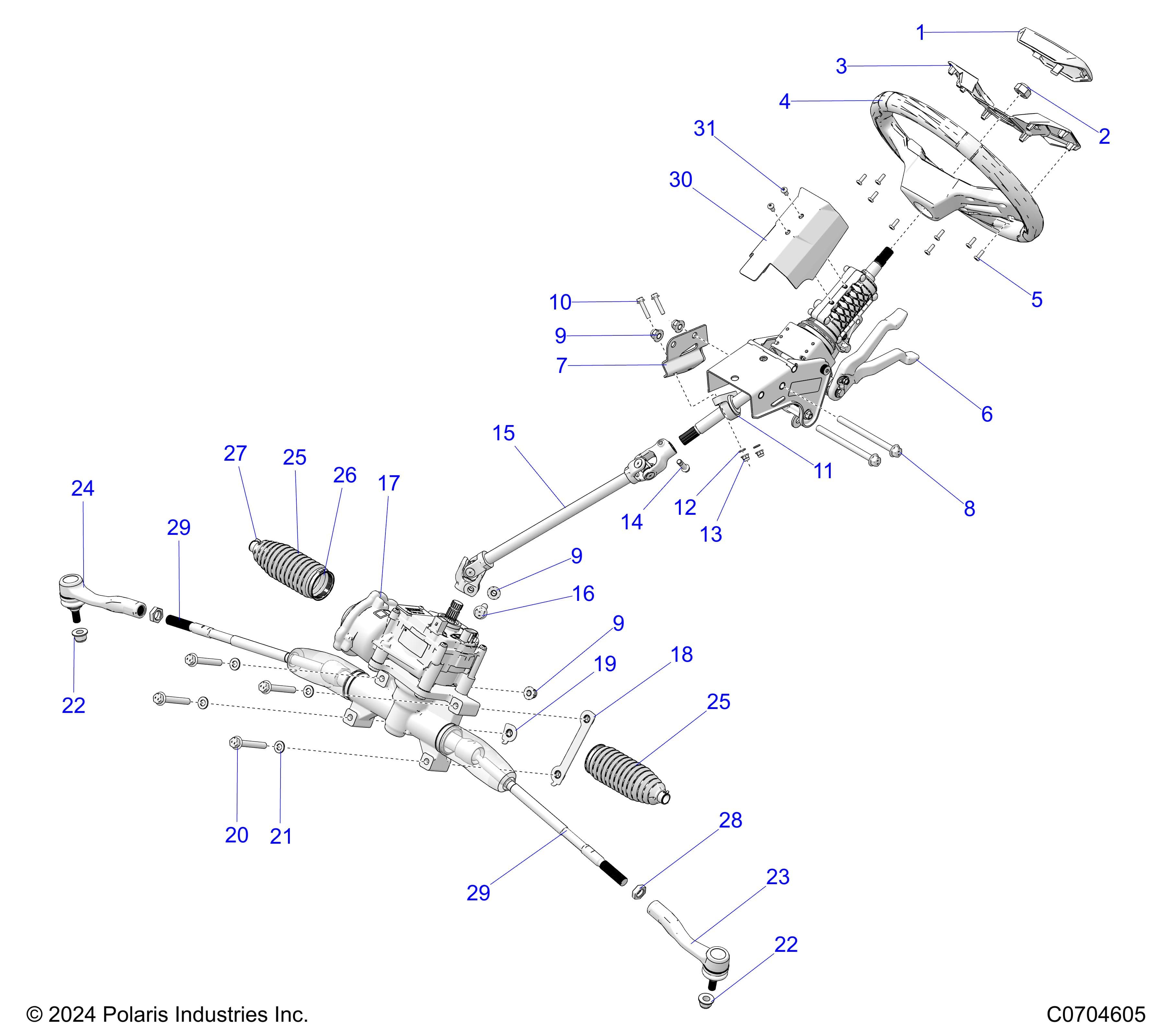

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227107
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5456866-070 | CAP-STEERING WHEEL,BASE,BLK | 1 | $16.99 | In stock | |
| 2 | 7547506 | NUT-HEX-M16X2, 8 ZC NYL | 1 | Price TBD | Out of stock | |
| 3 | 5458914-070 | TRIM-STEERING WHEEL,BLK | 1 | $24.99 | In stock | |
| 4 | 1824996 | WHEEL-STEERING | 1 | $114.99 | In stock | |
| 5 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 8 | Price TBD | Out of stock | |
| 6 | 1830160 | ASM-TILT/TELE,STEERING [TO 10/21/2025] | 1 | $649.99 | In stock | |
| 6 | 1830353 | ASM-TILT/TELE,STEERING [FROM 10/21/2025] | 1 | $649.99 | Out of stock Est. Aug 4, 2026 | |
| 7 | 5269481-329 | BRKT-STEERING SHAFT MOUNT,ECOT | 1 | $17.99 | In stock | |
| 8 | 7521333-130 | SCR-HXFL-M10X1.5X130 10.9 ZFB | 2 | $5.99 | In stock | |
| 9 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 10 | 7521331-30 | SCR-HXFL-M6X1.0X30 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 11 | 7061289 | BEARING-IGUS,PILLOW BLOCK 19MM | 1 | $54.99 | In stock | |
| 12 | 7557233 | WSHR-FLAT-M6X1.6 ZTB | 2 | $2.99 | In stock | |
| 13 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 14 | 7521014 | SCREW-HXFLGHD,M8X1.25X25,GEOMET | 1 | Price TBD | Out of stock | |
| 15 | 1825026 | SHAFT-STEERING,LWR,W/JNT,EPAS | 1 | $214.99 | In stock | |
| 16 | 7521333-45 | SCR-HXFL-M10X1.5X45 10.9 ZFB | 1 | Price TBD | Out of stock | |
| 17 | 1830393 | ASM-GEAR BOX W/EPS,STEERING [INCLUDES 23-29] | 1 | $2,799.99 | In stock | |
| 18 | 1025988-329 | WELD-STEERING RACK MNT,LH,ECOT | 1 | $12.99 | In stock | |
| 19 | 1025989-329 | WELD-STEERING RACK MNT,RH,ECOT | 1 | $8.99 | In stock | |
| 20 | 7521333-75 | SCR-HXFL-M10X1.5X75 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 21 | 7557235 | WSHR-FLAT-M10X2.0 ZTB | 4 | Price TBD | Out of stock | |
| 22 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 23 | 7061312 | LH OUTER TIE ROD END | 1 | $94.99 | In stock | |
| 24 | 7061313 | RH OUTER TIE ROD END | 1 | $94.99 | In stock | |
| 25 | 5417939 | BELLOW | 2 | Price TBD | Out of stock | |
| 26 | 7082812 | OETIKER CLAMP | 2 | Price TBD | Out of stock | |
| 27 | 7082811 | SPRING CLAMP | 2 | Price TBD | Out of stock | |
| 28 | 2209152 | JAM NUT | 2 | $7.99 | In stock | |
| 29 | 7061322 | TIE-ROD,INNER | 2 | $94.99 | In stock | |
| 30 | 5459422-070 | COVER-STEERING COLUMN,BLK | 1 | $34.99 | In stock | |
| 31 | 7519063 | SCREW-TXBH-M6X1.0X12 8.8 ZPB D20 | 2 | Price TBD | Out of stock |
