Schematic diagram
Polaris•Schematic assembly
DRIVE TRAIN, GEARCASE, MAIN
Product Description

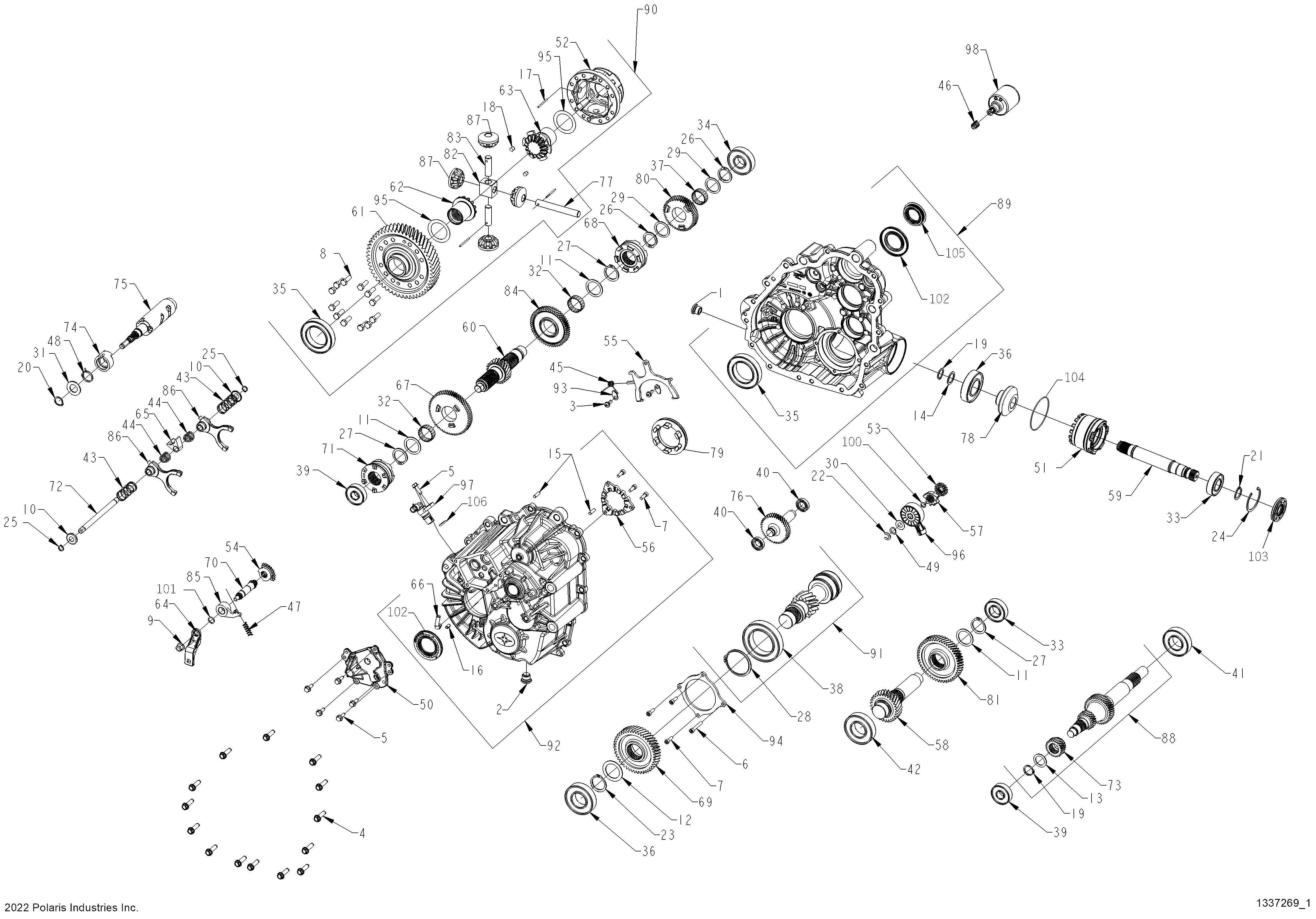

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227175
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 96 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1337269 | ASM-GEARCASE [INCLUDES ALL] | 1 | $4,899.99 | In stock | |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3234309 | SCREW, 6-LOBE, PAN HD M6 X 1 X 16 | 2 | Price TBD | Out of stock | |
| 4 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 14 | Price TBD | Out of stock | |
| 5 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | Price TBD | Out of stock | |
| 6 | 3235208 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 | 1 | Price TBD | Out of stock | |
| 7 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 6 | Price TBD | Out of stock | |
| 8 | 3236169 | SCREW, CAP HH M8 X 1.25 X 25 | 12 | Price TBD | Out of stock | |
| 9 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | Price TBD | Out of stock | |
| 10 | 3234091 | WASHER-CUP | 2 | Price TBD | Out of stock | |
| 11 | 3235211 | WASHER-32.3X42X1.5(115288) | 3 | Price TBD | Out of stock | |
| 12 | 3235212 | WASHER-35.6X57X1.5(115289) | 1 | Price TBD | Out of stock | |
| 13 | 3235991 | WASHER 22.70 X 32.0 X 1.5 | 1 | Price TBD | Out of stock | |
| 14 | 3236410 | WASHER, 22.5 X 30 X 1.5 | 1 | Price TBD | Out of stock | |
| 15 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 16 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | Price TBD | Out of stock | |
| 17 | 3236286 | PIN, DOWEL 3 X 40 | 3 | Price TBD | Out of stock | |
| 18 | 3236295 | PIN, DOWEL 8 X 10 | 2 | Price TBD | Out of stock | |
| 19 | 7710434 | RING, RETAINING BASIC EXTERNAL | 2 | Price TBD | Out of stock | |
| 20 | 3233045 | RING,RETAINING BASIC,EXTERNAL 0.75 | 1 | Price TBD | Out of stock | |
| 21 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 22 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 23 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 1 | Price TBD | Out of stock | |
| 24 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | Price TBD | Out of stock | |
| 25 | 3234090 | RING,RETAINING BASIC,EXTERNAL 0.428 | 3 | Price TBD | Out of stock | |
| 26 | 3234205 | RING, RETAINING, | 2 | Price TBD | Out of stock | |
| 27 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 2 | Price TBD | Out of stock | |
| 28 | 3235216 | RING-RETAIN,VSH-237(130298) | 1 | Price TBD | Out of stock | |
| 29 | 3233378 | WASHER,THRUST,1.187 X 1.500 X .0600 | 2 | Price TBD | Out of stock | |
| 30 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 31 | 3235883 | SPACER, 19.4 X 34.0 X 2.0 | 1 | Price TBD | Out of stock | |
| 32 | 3233014 | BEARING, NEEDLE | 1 | Price TBD | Out of stock | |
| 33 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 2 | Price TBD | Out of stock | |
| 34 | 3233020 | BEARING | 1 | Price TBD | Out of stock | |
| 35 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | Price TBD | Out of stock | |
| 36 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 2 | Price TBD | Out of stock | |
| 37 | 3233384 | BEARING-NEEDLE,30X35X13-CAGED | 1 | Price TBD | Out of stock | |
| 38 | 3235218 | BEARING, BALL, 6012 C3 60 X 95 X 18 | 1 | Price TBD | Out of stock | |
| 39 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 2 | Price TBD | Out of stock | |
| 40 | 3235807 | BEARING, BALL 6903 17 X 30 X 7 | 2 | Price TBD | Out of stock | |
| 41 | 3236746 | BEARING, BALL 62/32 PERFORMANCE | 1 | Price TBD | Out of stock | |
| 42 | 3239477 | BEARING,BALL 6207 PEER HP C3 35X72X17 | 1 | Price TBD | Out of stock | |
| 43 | 3234078 | SPRING,COMPRESSION, .92 O.D. X 2.000 | 2 | Price TBD | Out of stock | |
| 44 | 3234089 | SPRING, COMPRESSION, 0.46 I.D. X 0.73 | 2 | Price TBD | Out of stock | |
| 45 | 3234276 | SPRING, TORSION, RETURN | 1 | Price TBD | Out of stock | |
| 46 | 3234277 | SPRING,COMPRSSN.54ODX.44IDX.05 | 1 | Price TBD | Out of stock | |
| 47 | 3239338 | SPRING, COMPRESSION | 1 | $34.99 | In stock | |
| 48 | 3235885 | SPRING, TORSION | 1 | Price TBD | Out of stock | |
| 49 | 3235327 | WASHER-SPRING,210393 | 1 | Price TBD | Out of stock | |
| 50 | 3235809 | COVER, SECTOR GEARS MACH | 1 | Price TBD | Out of stock | |
| 51 | 3236120 | TUBE, SNORKEL MACH | 1 | Price TBD | Out of stock | |
| 52 | 3239522 | CARRIER, DIFFERENTIAL | 1 | $209.99 | In stock | |
| 53 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 54 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 55 | 3235455 | FORK, PIVOT SHIFT, REAR DIFF | 1 | Price TBD | Out of stock | |
| 56 | 3235456 | PLATE, PARK, 12 FACE | 0 | Price TBD | Out of stock | |
| 57 | 3236638 | STAR, DETENT | 1 | Price TBD | Out of stock | |
| 58 | 3235223 | SHAFT-IDLER,29T(285803) | 1 | Price TBD | Out of stock | |
| 59 | 3236411 | SHAFT, FRONT OUTPUT | 1 | Price TBD | Out of stock | |
| 60 | 3236689 | SHAFT, REVERSE 23T | 1 | Price TBD | Out of stock | |
| 61 | 3239368 | GEAR, 53T OUTPUT | 1 | $324.99 | In stock | |
| 62 | 3239367 | GEAR, OUTPUT 14T MACH | 1 | $194.99 | In stock | |
| 63 | 3239369 | GEAR, OUTPUT 14T DISCONNECT MACH | 1 | $199.99 | In stock | |
| 64 | 3239669 | BELLCRANK-OFFSET,2.25L | 1 | $39.99 | Out of stock Est. Oct 28, 2026 | |
| 65 | 3234073 | COLLAR-SHIFT | 1 | Price TBD | Out of stock | |
| 66 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 67 | 3235232 | GEAR-LOW,67T(352856) | 1 | Price TBD | Out of stock | |
| 68 | 3235233 | ENGAGEMENT DOG,6-FACE(352857) | 1 | Price TBD | Out of stock | |
| 69 | 3235236 | GEAR-46T,STAGE 3(352872) | 1 | Price TBD | Out of stock | |
| 70 | 3235238 | SHAFT-SHIFT(352973) | 1 | Price TBD | Out of stock | |
| 71 | 3235457 | SHIFT DOG, PARK/LOW (353357) | 1 | Price TBD | Out of stock | |
| 72 | 3235542 | RAIL-SHIFT SHAFT(353622) | 1 | Price TBD | Out of stock | |
| 73 | 3236132 | GEAR, LOW 25T | 1 | Price TBD | Out of stock | |
| 74 | 3235983 | CAM, PARK | 1 | Price TBD | Out of stock | |
| 75 | 3235984 | DRUM, SHIFT MACH, | 1 | Price TBD | Out of stock | |
| 76 | 3235986 | GEAR, IDLER 39T | 1 | Price TBD | Out of stock | |
| 77 | 3236292 | PIN, DIFFERENTIAL | 1 | Price TBD | Out of stock | |
| 78 | 3236412 | GEAR, 13T SNORKEL | 1 | Price TBD | Out of stock | |
| 79 | 3236293 | DOG, ENGAGEMENT | 1 | Price TBD | Out of stock | |
| 80 | 3236435 | GEAR, 52T | 1 | Price TBD | Out of stock | |
| 81 | 3236690 | GEAR, 50T STAGE 2 | 1 | Price TBD | Out of stock | |
| 82 | 3239489 | COUPLER, PIN | 1 | Price TBD | Out of stock | |
| 83 | 3239491 | PIN, DIFFERENTIAL | 2 | $13.99 | In stock | |
| 84 | 3239554 | GEAR. REVERSE 56T | 1 | Price TBD | Out of stock | |
| 85 | 3235452 | SUBASSEMBLY, PAWL, DETENT, ROLLER | 1 | Price TBD | Out of stock | |
| 86 | 3235920 | SUBASSEMBLY, SHIFT FORK | 2 | Price TBD | Out of stock | |
| 87 | 3236288 | SUBASSEMBLY, PINION GEAR | 4 | Price TBD | Out of stock | |
| 88 | 3236691 | SUBASSEMBLY, INPUT 43T/22T/25T | 1 | Price TBD | Out of stock | |
| 89 | 3236692 | SUBASSY, LH CASE | 1 | $529.99 | In stock | |
| 90 | 3239520 | SUBASSEMBLY, DIFFERENTIAL | 1 | $479.99 | In stock | |
| 91 | 3239521 | SUBASSEMBLY, PINION SP | 1 | Price TBD | Out of stock | |
| 92 | 3239627 | SUBASSY, RH CASE | 1 | $539.99 | Out of stock Est. Jan 13, 2027 | |
| 93 | 3234934 | RETAINER-FORK | 2 | Price TBD | Out of stock | |
| 94 | 3235241 | COVER-BEARING,CNTR DR. | 1 | Price TBD | Out of stock | |
| 95 | 3236294 | WASHER, THRUST, 40.83 X 56.25 X 0.38 | 2 | Price TBD | Out of stock | |
| 96 | 7662468 | SWITCH, ROTARY, 2 PIN RESISTIVE | 1 | Price TBD | Out of stock | |
| 97 | 4013908 | SENSOR-SPEED,TRANS | 1 | Price TBD | Out of stock | |
| 98 | 3239628 | SOLENOID HTQ | 1 | $219.99 | In stock | |
| 99 | 3234302 | O-RING | 1 | Price TBD | Out of stock | |
| 100 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 101 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock | |
| 102 | 3235052 | SEAL, TRIPLE LIP, VITON HELIX 40X70X7 | 2 | Price TBD | Out of stock | |
| 103 | 3236135 | SEAL, TRIPLE LIP 25 X 55 X 8 | 1 | Price TBD | Out of stock | |
| 104 | 3236136 | O-RING 2.989 I.D. X 0.07 | 1 | Price TBD | Out of stock | |
| 105 | 3239564 | SEAL-LGHTR LIP W/FLNGE,32X49X9 | 1 | Price TBD | Out of stock |
