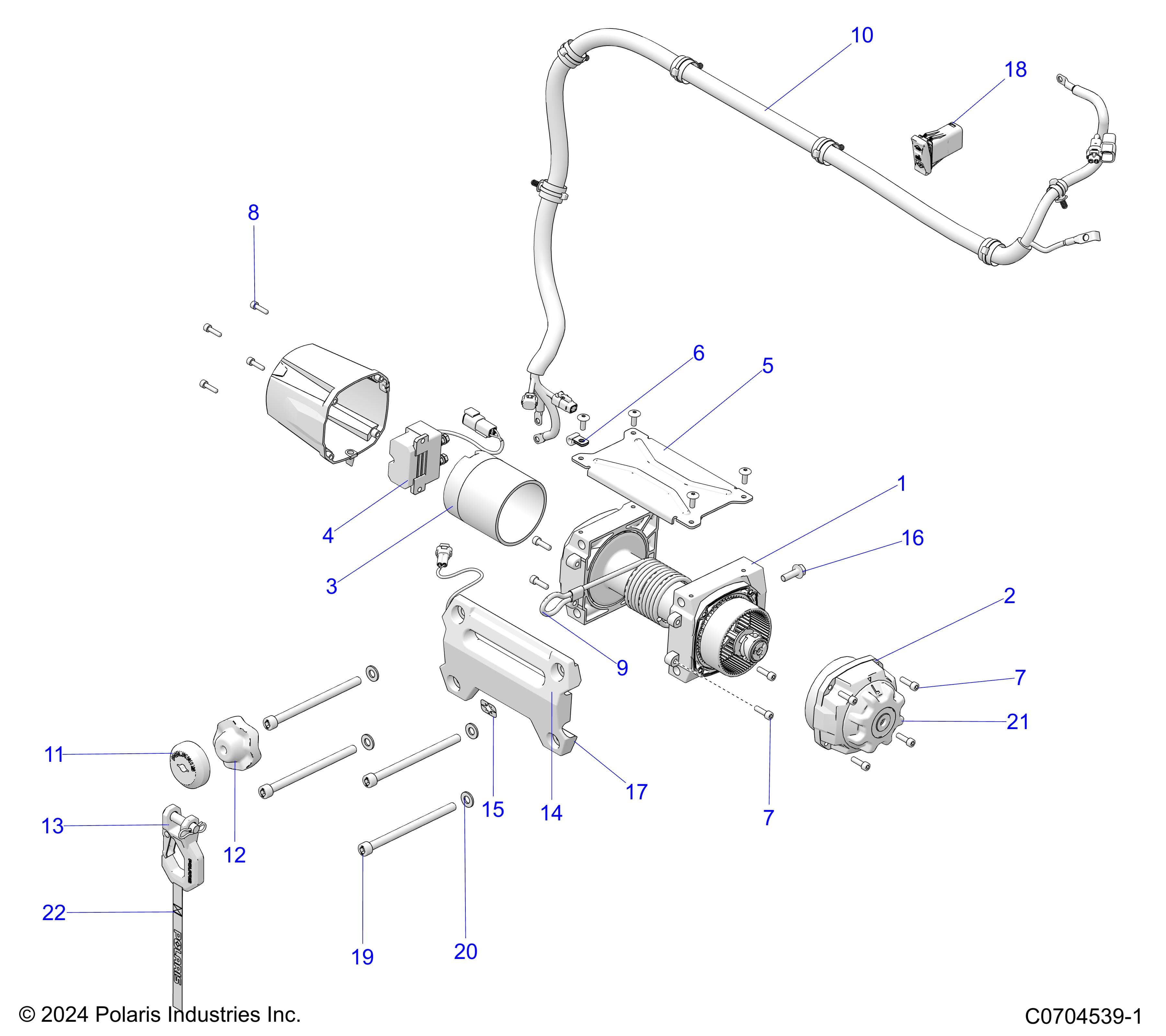

Polaris•Schematic assembly
ELECTRICAL, WINCH
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227710
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2639293 | ASM-WINCH,45 HD SS,ASTP,ADM [INCLUDES 1-17, & 21] | 1 | $999.99 | In stock | |
| 1 | 2211437 | WINCH-45 HD SS,INT,ASTP,ADM [INCLUDES 2-8, 17 & 21] | 1 | $599.99 | In stock | |
| 2 | 2209445 | ASM-SVC,GEARBOX,SS,45 INT,ADM | 1 | $99.99 | In stock | |
| 3 | 2416412 | ASM-MOTOR,45 INT,ADM | 1 | $139.99 | In stock | |
| 4 | 4081615 | CONTACTOR,WINCH,POL,SM,DEU | 1 | Price TBD | Out of stock | |
| 5 | 5272632 | BRKT-CONTACTOR MOUNT,ADM | 1 | $10.99 | In stock | |
| 6 | 7081246 | CLAMP, WIRE/TUBE .25 DIA | 1 | Price TBD | Out of stock | |
| 7 | 7517305 | SCREW-SH-M6X1.0X20 8.8 ZPB | 8 | Price TBD | Out of stock | |
| 8 | 7521248 | SCR-SH-M5X0.8X20 8.8 ZPB | 4 | $3.99 | In stock | |
| 9 | 2879187 | KIT-ROPE,WINCH,45,UHMW | 1 | Price TBD | Out of stock | |
| 10 | 4019350 | CABLE-WINCH,4500 | 1 | $214.99 | In stock | |
| 11 | 5415787 | STOP-MAGNET,BMPR,V2 | 1 | Price TBD | Out of stock | |
| 12 | 5418521 | BUMPER-JOUNCE,WINCH,ADM | 1 | $29.99 | In stock | |
| 13 | 5910706 | HOOK-LATCH,WINCH,ULT,LRG [INCLUDES 22] | 1 | Price TBD | Out of stock | |
| 14 | 7199040 | DECAL-WINCH,PINCH WARNING | 1 | Price TBD | Out of stock | |
| 15 | 7199177 | DECAL-WINCH,POLARIS STAR | 1 | Price TBD | Out of stock | |
| 16 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 17 | 2638138 | AUTOSTOP FAIRLEAD ASM,INT,ADM | 1 | $69.99 | In stock | |
| 18 | 4080801-13 | SWITCH-KSERIES,WINCH | 1 | Price TBD | Out of stock | |
| 19 | 7528027 | SCR-SH-M10X1.5X150 12.9 ZNC | 4 | $5.99 | In stock | |
| 20 | 7558782 | WASHER-M10X20X2 STL THR-HRD,BK | 4 | Price TBD | Out of stock | |
| 21 | 5466779 | HANDLE-WINCH,GEAR SEL,SGL SP | 1 | $4.99 | In stock | |
| 22 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | Price TBD | Out of stock |
