Polaris•Schematic assembly
ENGINE, COOLING
Product Description

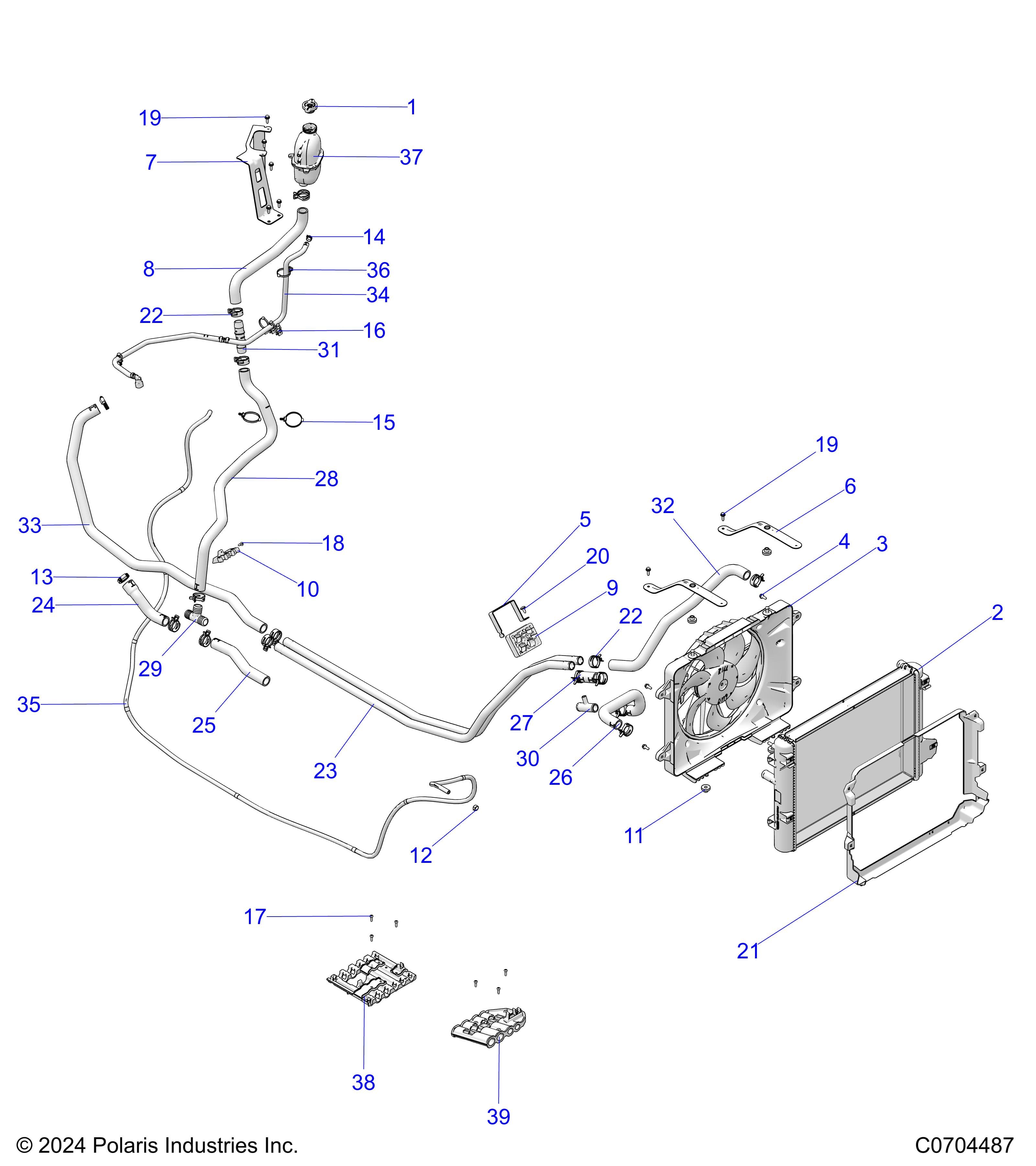

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION XP NORTHSTAR Assembly ID: 228232
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION XP NORTHSTAR
Checkout Note
Please note that 18 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1241379 | CAP-PRESSURE | 1 | Price TBD | Out of stock | |
| 2 | 1241447 | ASM-RADIATOR,CORE,HVAC | 1 | $619.99 | In stock | |
| 3 | 2415296 | FAN-ASSEMBLY,HVAC | 1 | $629.99 | In stock | |
| 4 | 7518591 | SCREW-HXFL-M6X1.0X16 8.8 ZPB | 4 | Price TBD | Out of stock | |
| 5 | 5269611-329 | BRKT-ROUTING GROMMET,BLK | 1 | $11.99 | In stock | |
| 6 | 5269919-329 | BRKT-RADIATOR MOUNT,HVAC,ECOAT | 2 | $12.99 | In stock | |
| 7 | 5272723-329 | BRKT-COOLANT BOTTLE,ECOAT | 1 | $69.99 | In stock | |
| 8 | 5418143 | HOSE-BOTTLE TO SPLICE,TILT | 1 | $39.99 | In stock | |
| 9 | 5418786 | GROMMET-ROUTING | 1 | $34.99 | In stock | |
| 10 | 5458510 | CLIP-ROUTING,COOLANT-VENT | 1 | $4.99 | In stock | |
| 11 | 7052028 | GROMMET-FLANGED,.36X.56X1.06 | 4 | Price TBD | Out of stock | |
| 12 | 7080003 | HOSE CLAMP, RED | 1 | Price TBD | Out of stock | |
| 13 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | Price TBD | Out of stock | |
| 14 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 2 | Price TBD | Out of stock | |
| 15 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 4 | Price TBD | Out of stock | |
| 16 | 7082073 | STRAP-CABLE TIEW/EDGECLIP3-6MM | 3 | Price TBD | Out of stock | |
| 17 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 6 | Price TBD | Out of stock | |
| 18 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 1 | Price TBD | Out of stock | |
| 19 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 7 | Price TBD | Out of stock | |
| 20 | 7518936 | SCR-M6X1X16 TR/TX-M | 1 | Price TBD | Out of stock | |
| 21 | 5456828 | SHROUD-RADIATOR,HVAC | 1 | $54.99 | In stock | |
| 22 | 7082308 | SPRINGBAND-CLAMP,BLK | 14 | Price TBD | Out of stock | |
| 23 | 5347089 | TUBE-COOLANT,1" | 2 | Price TBD | Out of stock | |
| 24 | 5417283 | HOSE-ENG INLET,REAR | 1 | $34.99 | In stock | |
| 25 | 5417321 | HOSE-ENG INLET,FRT | 1 | $34.99 | In stock | |
| 26 | 5417455 | HOSE-COOLANT,HVAC,TEE,UPPER | 1 | $34.99 | In stock | |
| 27 | 5417456 | HOSE-COOLANT,HVAC,TEE,LOWER | 1 | $7.99 | In stock | |
| 28 | 5418141 | HOSE-SPLICE TO TEE | 1 | $39.99 | In stock | |
| 29 | 7052373 | CONNECTOR-TEE,1",1",1" BARBED | 1 | Price TBD | Out of stock | |
| 30 | 7052530 | CONNECTOR-TEE,1X1X0.5 | 1 | Price TBD | Out of stock | |
| 31 | 7055611 | CONNECTOR-1" SPLICE,BARBED | 1 | $5.99 | In stock | |
| 32 | 5417280 | HOSE-UPPER, RADIATOR,HVAC | 1 | $54.99 | In stock | |
| 33 | 5418807 | HOSE-ENGINE OUTLET | 1 | $54.99 | In stock | |
| 34 | 1244795 | ASM-COOLANT HOSE,VENTED | 1 | $64.99 | In stock | |
| 35 | 2522362 | ASM-VENT LINE,2P | 1 | $44.99 | In stock | |
| 36 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | Price TBD | Out of stock | |
| 37 | 1244655 | ASM-TANK,SURGE | 1 | Price TBD | Out of stock | |
| 38 | 5465540-070 | TRAY-ROUTING,RH,BLK | 1 | $29.99 | In stock | |
| 39 | 5465649-070 | TRAY-ROUTING,FRONT,BLK | 1 | $34.99 | In stock |
