Polaris•Schematic assembly

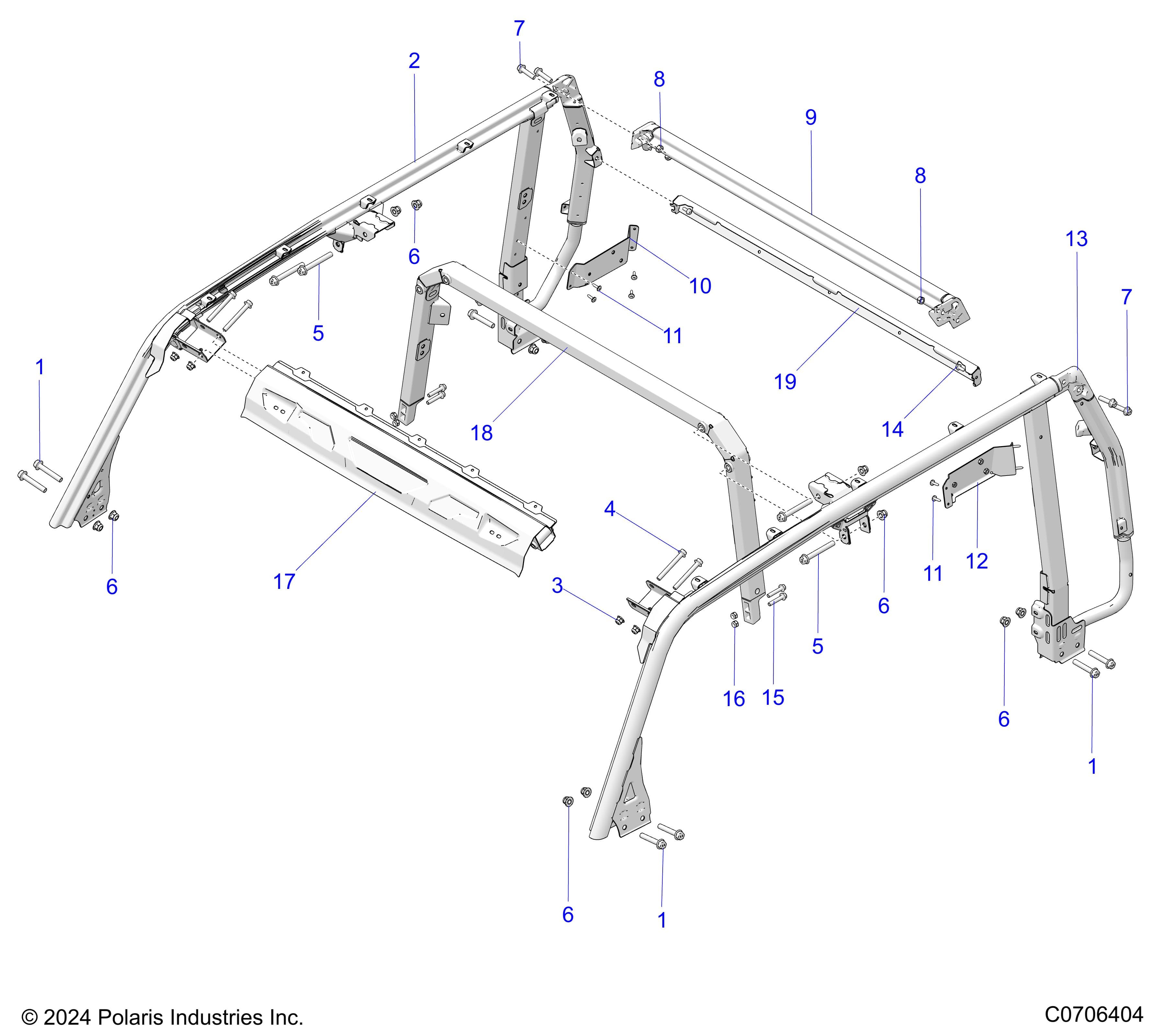

CHASSIS, ROLLOVER PROTECTION 5P
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION XP5 NORTHSTAR Assembly ID: 228548
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION XP5 NORTHSTAR
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7521335-85 | SCR-HXFL-M14X2.0X85 10.9 ZFB | 8 | Price TBD | Out of stock | |
| 2 | 1028136-458 | WELD-ROPS,FRONT,MP,RH,BLK | 1 | $589.99 | In stock | |
| 3 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 4 | 7521334-105 | SCR-HXFL-M12X1.75X105 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 5 | 7521335-115 | SCR-HXFL-M14X2.0X115 10.9 ZFB | 4 | $6.99 | In stock | |
| 6 | 7547981 | NUT-HXFL-M14X2X 10 ZFB SPC | 12 | Price TBD | Out of stock | |
| 7 | 7521334-50 | SCR-HXFL-M12X1.75X50 10.9 ZFB | 4 | $7.99 | In stock | |
| 8 | 7547232 | NUT-HEXHD,M12,DIN980V,0600100 | 4 | $29.99 | In stock | |
| 9 | 1026056-458 | WELD-ROPS,REAR,BLK | 1 | $234.99 | In stock | |
| 10 | 1026058-458 | WELD-ROPS,SEAT,STKR,MNT,RH,BLK | 1 | $49.99 | In stock | |
| 11 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 8 | Price TBD | Out of stock | |
| 12 | 1026057-458 | WELD-ROPS,SEAT,STKR,MNT,LH,BLK | 1 | $49.99 | In stock | |
| 13 | 1028135-458 | WELD-ROPS,FRONT,MP,LH,BLK | 1 | $589.99 | In stock | |
| 14 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 15 | 7521333-55 | SCR-HXFL-M10X1.5X55 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 16 | 7547746 | NUT-HEX-M10X1.5 10 ZB3 NYL | 4 | Price TBD | Out of stock | |
| 17 | 1026048-458 | WELD-ROPS,FRONT CROSS,BLK | 1 | $179.99 | In stock | |
| 18 | 1026053-458 | WELD-ROPS,MID,BLK | 1 | $309.99 | In stock | |
| 19 | 5273076-458 | BRACE-CROSS,REAR,BLK | 1 | $164.99 | In stock |
