Polaris•Schematic assembly
BRAKES, PEDAL
Product Description

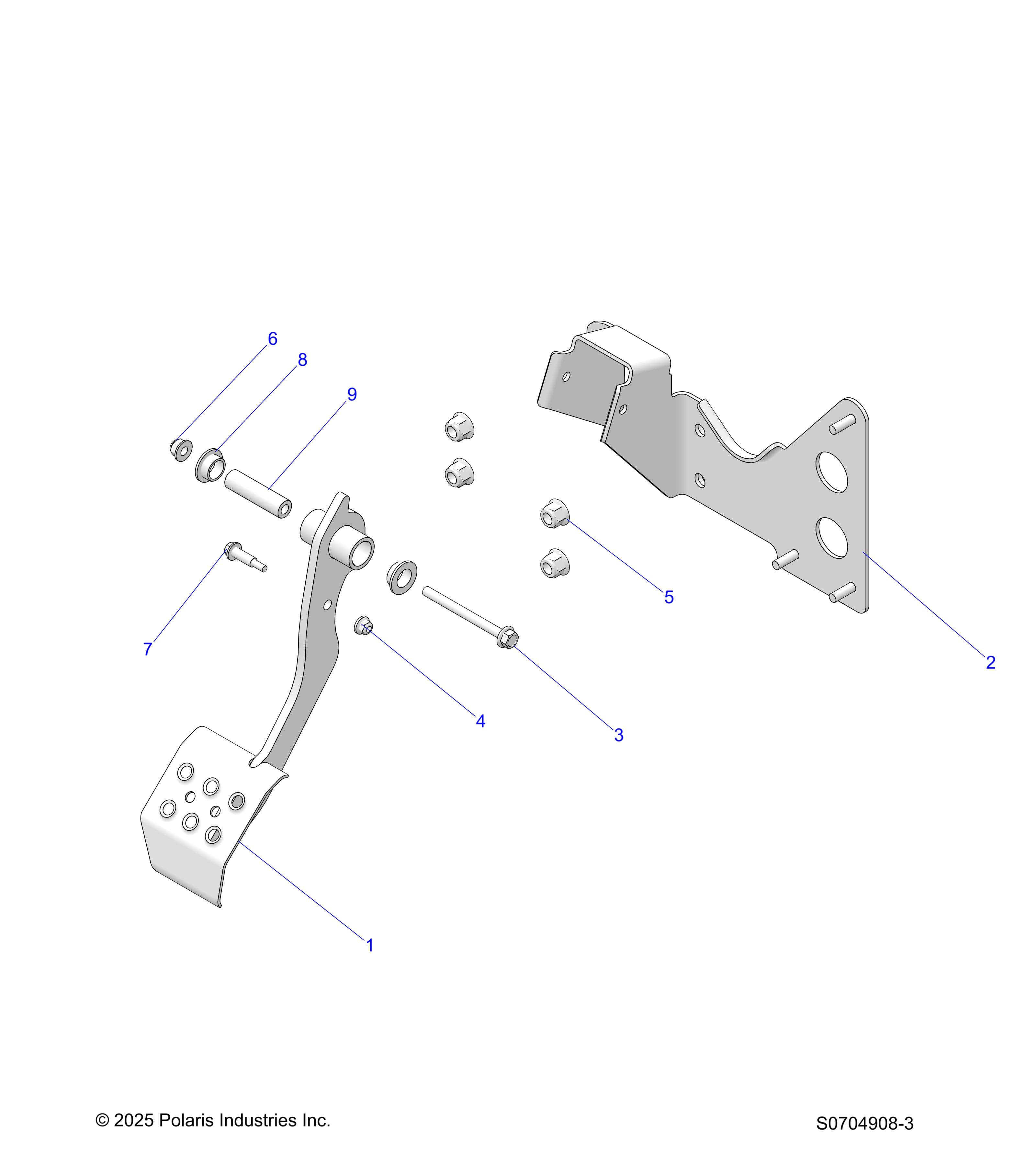

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 237834
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1026453-329 | WELD-BRAKE ECOAT | 1 | $69.99 | In stock | |
| 2 | 1026301-329 | ASM PEDAL MOUNT,ECOAT | 1 | $64.99 | In stock | |
| 3 | 7519908 | SCR-HXFL- M6X1.0X70 10.9 ZOD | 1 | Price TBD | Out of stock | |
| 4 | 7547427 | NUT-M5X0.8 8.8 HX/FL NYLOC | 1 | Price TBD | Out of stock | |
| 5 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | Price TBD | Out of stock | |
| 6 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | Price TBD | Out of stock | |
| 7 | 7521227 | BOLT,M5X0.8X10,16.5 SHLD | 1 | Price TBD | Out of stock | |
| 8 | 5439274 | BUSHING-PEDAL PIVOT | 2 | Price TBD | Out of stock | |
| 9 | 5143138 | SHAFT-PIVOT,BRAKE PEDAL ASM | 1 | Price TBD | Out of stock |
