Polaris•Schematic assembly

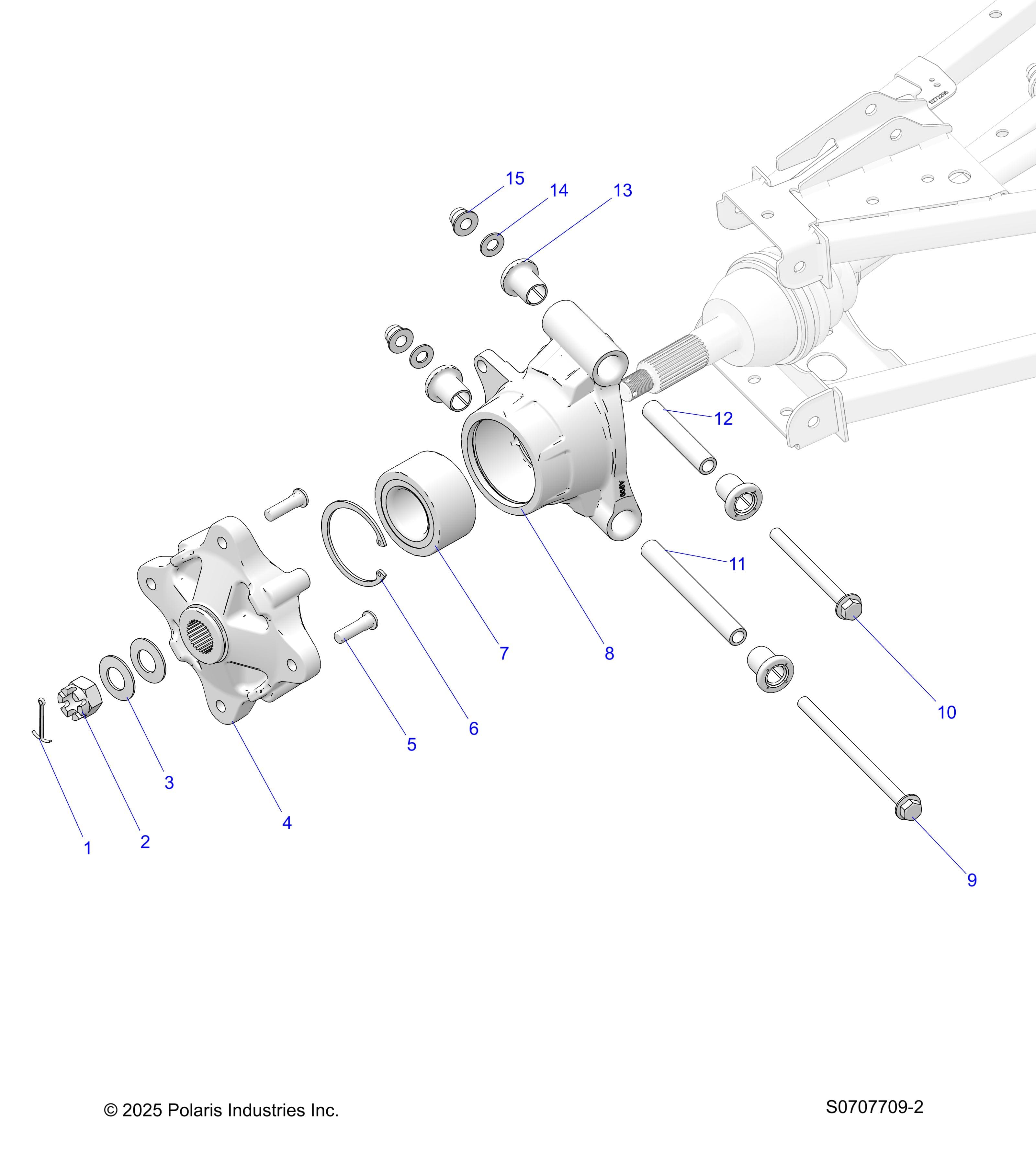

SUSPENSION, REAR HUB
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238289
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 1 | Price TBD | Out of stock | |
| 2 | 7547337 | NUT-M18X1.5,CASTLE,ZINC/YELLOW | 1 | Price TBD | Out of stock | |
| 3 | 7555796 | WASHER-CONE.755X1.5X.072-.107P | 2 | Price TBD | Out of stock | |
| 4 | 5143629-067 | HUB-WHEEL,REAR,MACH,BLK | 1 | $69.99 | In stock | |
| 5 | 7518378 | STUD-3/8-24X1.38,PRESS FIT-Z | 4 | Price TBD | Out of stock | |
| 6 | 7710440 | RING-RETAINING,2.875,INTERNAL | 1 | Price TBD | Out of stock | |
| 7 | 3514635 | BEARING-WHEEL,40X74X40MM | 1 | $49.99 | In stock | |
| 8 | 5145679 | CARRIER-BEARING,WHEEL,LH | 1 | $199.99 | In stock | |
| 8 | 5145680 | CARRIER-BEARING,WHEEL,RH | 1 | $199.99 | In stock | |
| 9 | 7519042 | SCR-HXFL-M10X1.25X165 10.9 ZOD | 1 | Price TBD | Out of stock | |
| 10 | 7519365 | SCR-HXFL-M10X1.25X115 10.9 ZOD | 1 | Price TBD | Out of stock | |
| 11 | 5138796 | SHAFT-PIVOT,139.1MM,15.88OD | 1 | $14.99 | In stock | |
| 12 | 5138794 | SHAFT-PIVOT,89.71MM,15.88OD | 1 | $6.99 | In stock | |
| 13 | 5439874 | BUSHING-STANDARD,ORV | 4 | Price TBD | Out of stock | |
| 14 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 2 | Price TBD | Out of stock | |
| 15 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock |
