Polaris•Schematic assembly

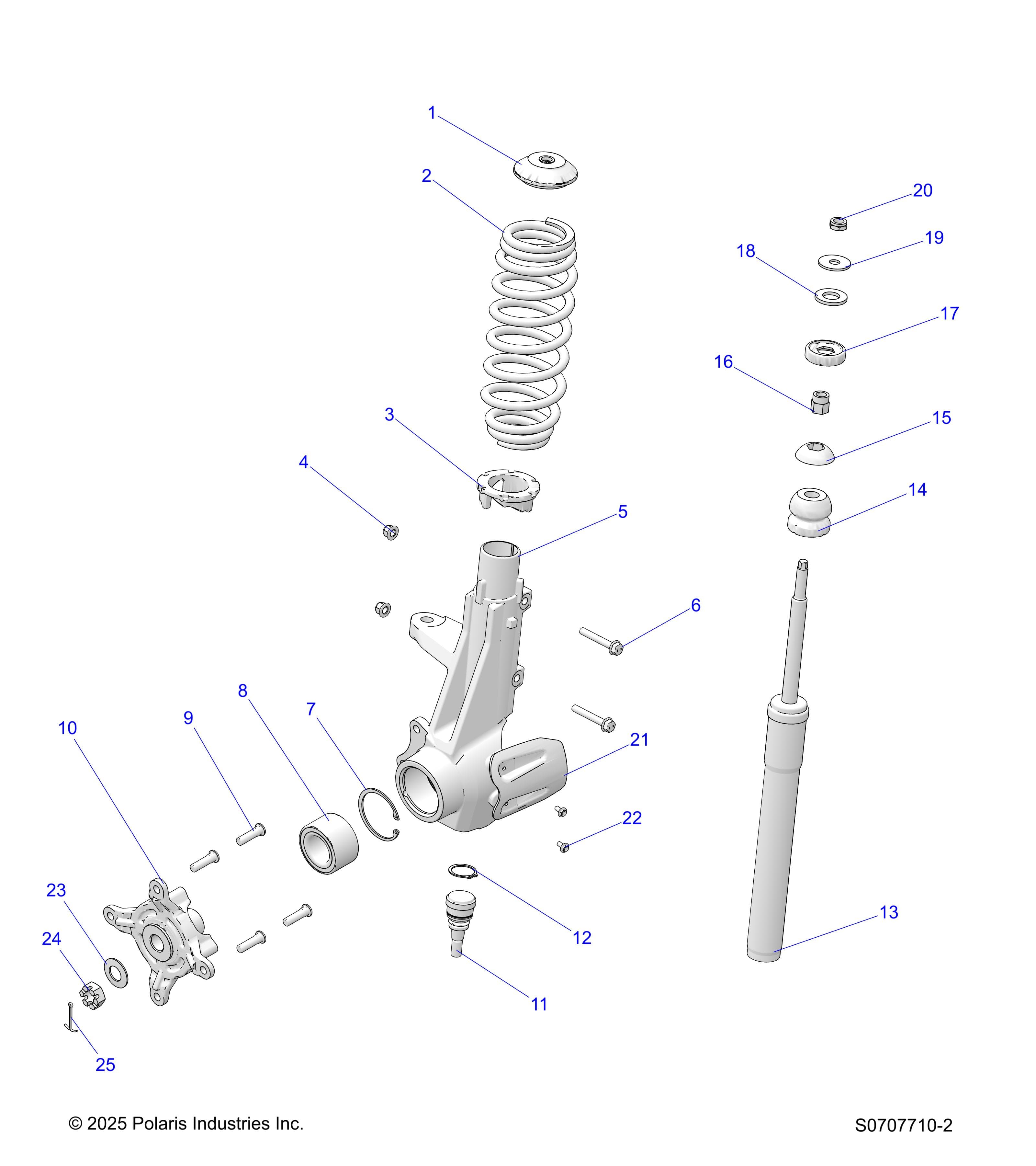

SUSPENSION, FRONT SHOCK & SPRING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238294
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 22 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | ------- | ASM-SUSPENSION,FRONT,LH,BLK [INCLUDES 1,3,5,13-18,21,22] | 1 | Price TBD | Out of stock | |
| - | ------- | ASM-SUSPENSION,FRONT,RH,BLK [INCLUDES 1,3,5,13-18,21,22] | 1 | Price TBD | Out of stock | |
| 1 | 5144808 | RETAINER-SPRING,UPPER | 1 | $39.99 | In stock | |
| 2 | 7046396-458 | SPR-57-105# 14FL 2.4-1.9ID,BLK | 1 | $99.99 | In stock | |
| 3 | 5639458 | RETAINER-SPRING,ALUMN | 1 | $9.99 | In stock | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 5 | 1830018 | ASM-HUBSTRUT,LH [INCLUDES 5,7,8,11,12] | 1 | $499.99 | In stock | |
| 5 | 5143795 | SUPPORT-HUBSTRUT,LH | 1 | $329.99 | In stock | |
| 5 | 1830019 | ASM-HUBSTRUT,RH | 1 | $539.99 | Out of stock Est. Jul 13, 2026 | |
| 5 | 5143796 | SUPPORT-HUBSTRUT,RH | 1 | $329.99 | In stock | |
| 6 | 7521332-55 | SCR-HXFL-M8X1.25X55 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 7 | 7710507 | RING-RETAINING,2.500 INTERNAL | 1 | Price TBD | Out of stock | |
| 8 | 3515185 | BEARING-WHEEL,35X64X37MM | 1 | $54.99 | Out of stock Est. Jul 23, 2026 | |
| 9 | 7518378 | STUD-3/8-24X1.38,PRESS FIT-Z | 4 | Price TBD | Out of stock | |
| 10 | 5143618 | HUB-WHEEL,AWD,MACH | 1 | $84.99 | In stock | |
| 11 | 7082538 | BALL-JOINT,M12X1.50,TAPERED | 1 | Price TBD | Out of stock | |
| 12 | 7710533 | RING-RETAINER,EXTERNAL,1.188 | 1 | Price TBD | Out of stock | |
| 13 | 7044149 | STRUT-FRONT | 1 | $149.99 | Out of stock Est. Jul 14, 2026 | |
| 14 | 5412665 | BUMPER-MCU,17.8MM ID | 1 | Price TBD | Out of stock | |
| 15 | 5432871 | PIVOT-BALL,BOTTOM,DELRIN | 1 | Price TBD | Out of stock | |
| 16 | 5132062 | SPACER-1/2-20,STRUT | 1 | Price TBD | Out of stock | |
| 17 | 5432872 | PIVOT-BALL,TOP,DELRIN | 1 | Price TBD | Out of stock | |
| 18 | 5810291 | SPACER-RUBBER | 1 | Price TBD | Out of stock | |
| 19 | 7555749 | WSHR-.500X1.50-12GA-Y | 1 | Price TBD | Out of stock | |
| 20 | 7547104 | NUT-1/2-20 NYLOK,THIN HT-Y | 1 | Price TBD | Out of stock | |
| 21 | 5458188 | SHIELD-CV,FRONT | 1 | $11.99 | In stock | |
| 22 | 7518796 | SCR-HXFL-M5X0.8X12 4.8 ZPC | 2 | Price TBD | Out of stock | |
| 23 | 7555796 | WASHER-CONE.755X1.5X.072-.107P | 1 | Price TBD | Out of stock | |
| 24 | 7547406 | NUT-CASTLE,M18X1.5X13 | 1 | Price TBD | Out of stock | |
| 25 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 1 | Price TBD | Out of stock |
