Polaris•Schematic assembly
ENGINE, EXHAUST SYSTEM
Product Description

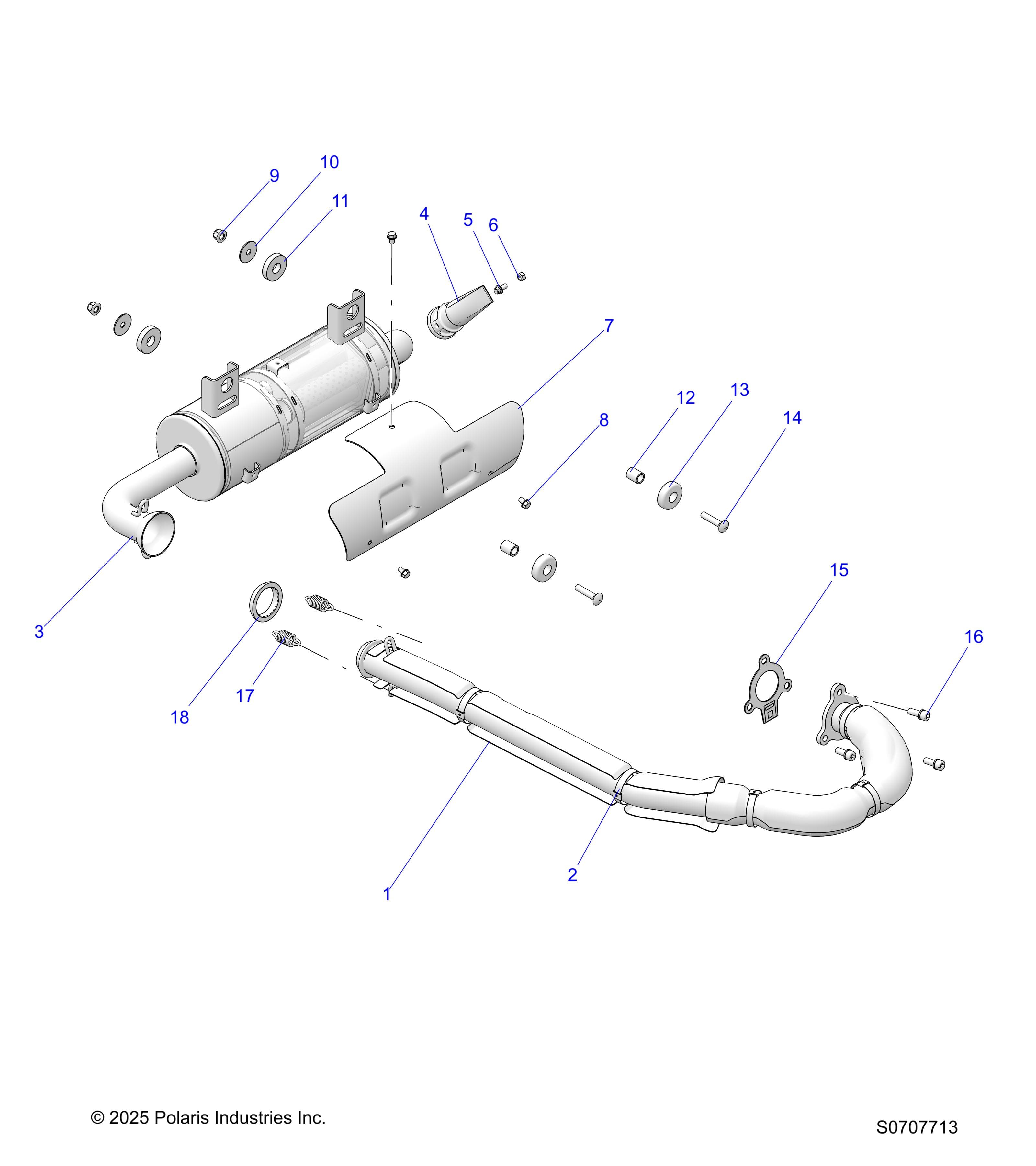

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238302
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1263991 | ASM-HEADPIPE [INCLUDES 2] | 1 | $299.99 | In stock | |
| 2 | 7081156 | CLAMP-HEAT SHIELD,EXHAUST | 5 | Price TBD | Out of stock | |
| 3 | 1264024 | ASM-SILENCER [INCLUDES 4-8] | 1 | $419.99 | In stock | |
| 4 | 1263571 | WELD-SPARK ARRESTOR,1IN [INCLUDES 5 & 6] | 1 | Price TBD | Out of stock | |
| 5 | 7517257 | SCREW-HXFL-M6X1.0X12 10.9 ZPC | 1 | Price TBD | Out of stock | |
| 6 | 7547120 | NUT-HEX-M6X1.0 8 SPC | 1 | Price TBD | Out of stock | |
| 7 | 5276346 | SHIELD-SILENCER,AL-ST | 1 | $84.99 | In stock | |
| 8 | 7515197 | SCR-1/4-20X3/8,TFM HW-M | 3 | Price TBD | Out of stock | |
| 9 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 10 | 7555716 | WASHER-.328X1.25X16GA, FL-Y | 2 | Price TBD | Out of stock | |
| 11 | 5414945 | WSHR-15.4X38.1X7.9 RUBBER | 2 | $5.99 | In stock | |
| 12 | 5010192 | BUSHING-.459 X.625 X.75 | 2 | $7.99 | In stock | |
| 13 | 5414946 | DAMPER-VIBRATION | 2 | $5.99 | In stock | |
| 14 | 7519305 | SCR-CAR M8X1.25 40 8.8 ZOD | 2 | Price TBD | Out of stock | |
| 15 | 3610360 | SEAL-EXHAUST,MANIFOLD,570 | 1 | Price TBD | Out of stock | |
| 16 | 7518984 | SCR-HXFL-M5X0.8X12 4.8 ZPC NYL | 3 | Price TBD | Out of stock | |
| 17 | 7041789 | SPRING-EXHAUST | 2 | Price TBD | Out of stock | |
| 18 | 5256385 | SEAL, EXHAUST | 1 | Price TBD | Out of stock |
