ENGINE, COOLING SYSTEM
Product Description

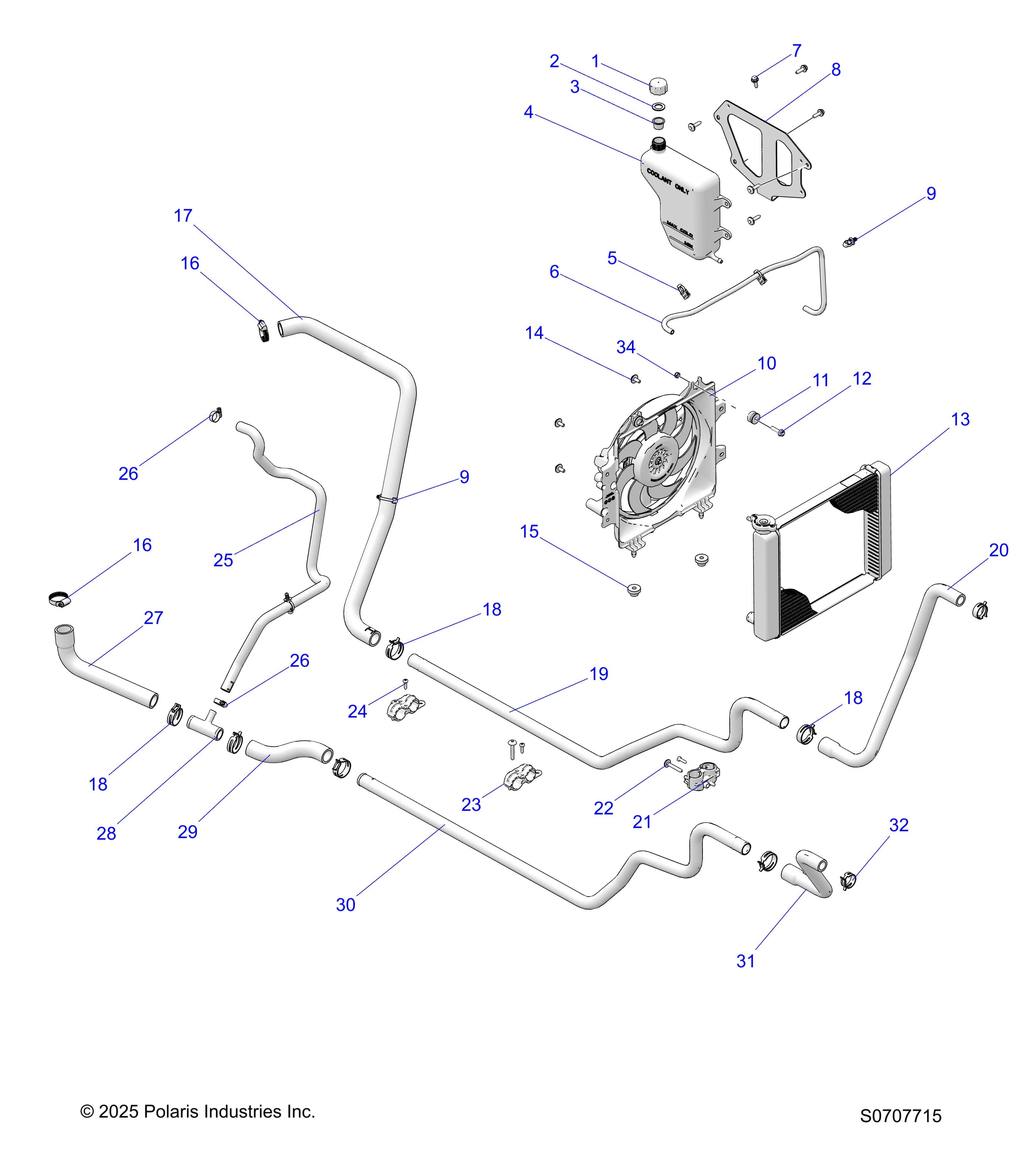

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238306
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 26 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5430743 | CAP-OVER FLOW BOTTLE,DRILLED | 1 | Price TBD | Out of stock | |
| 2 | 5810279 | GASKET-OVERFLOW CAP | 1 | Price TBD | Out of stock | |
| 3 | 5433774 | PLUG-CAP 9X(GREEN) FLEX TEMP | 1 | Price TBD | Out of stock | |
| 4 | 5439202 | TANK-SURGE | 1 | Price TBD | Out of stock | |
| 5 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 2 | Price TBD | Out of stock | |
| 6 | 8450003-68 | FUEL LINE-68 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 7 | 7518936 | SCR-M6X1X16 TR/TX-M | 6 | Price TBD | Out of stock | |
| 8 | 5273772-329 | BRKT-SURGE TANK,BLK | 1 | $49.99 | In stock | |
| 9 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 3 | Price TBD | Out of stock | |
| 10 | 2415473 | ASM-FAN AND MOTOR,TRIPAC,SGL | 1 | Price TBD | Out of stock | |
| 11 | 5416503 | ASM-GROMMET & INSERT | 2 | Price TBD | Out of stock | |
| 12 | 7521331-25 | SCR-HXFL-M6X1.0X25 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 13 | 1241476 | ASM-RADIATOR | 1 | $549.99 | In stock | |
| 13 | 1240694 | CAP | 1 | Price TBD | Out of stock | |
| 14 | 7519585 | BOLT, M6X15MM | 4 | Price TBD | Out of stock | |
| 15 | 5410584 | BUSHING-MOUNT,LOWER RADIATOR | 2 | Price TBD | Out of stock | |
| 16 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | Price TBD | Out of stock | |
| 17 | 5417587 | HOSE-ENGINE OUTLET,REAR | 1 | $59.99 | In stock | |
| 18 | 7080843 | SPRINGBAND-CLAMP 32/12,BROWN | 6 | Price TBD | Out of stock | |
| 19 | 5143808 | TUBE-COOLANT,1" [TO 01/14/2026] | 1 | $44.99 | In stock | |
| 19 | 5347102 | TUBE-COOLANT,1" [FROM 01/14/2026] | 1 | Price TBD | Out of stock | |
| 20 | 5417585 | HOSE-UPPER,RAD | 1 | $54.99 | In stock | |
| 21 | 5453767 | CLIP-COOLANT ROUTING | 1 | Price TBD | Out of stock | |
| 22 | 7519001 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 3 | Price TBD | Out of stock | |
| 23 | 5451221 | BRACKET-COOLANT TUBE | 2 | Price TBD | Out of stock | |
| 24 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 3 | Price TBD | Out of stock | |
| 25 | 5417707 | HOSE-BYPASS,1/2IN FORMED | 1 | $54.99 | In stock | |
| 26 | 7080474 | CLAMP-HOSE,.875-SS | 2 | Price TBD | Out of stock | |
| 27 | 5414162 | HOSE-BYPASS,1IN FORMED | 1 | $49.99 | In stock | |
| 28 | 7052530 | CONNECTOR-TEE,1X1X0.5 | 1 | Price TBD | Out of stock | |
| 29 | 5415054 | HOSE-LOWER ENGINE,SHORT | 1 | $39.99 | In stock | |
| 30 | 5143868 | TUBE-COOLANT,1" [TO 01/09/2026] | 1 | $44.99 | In stock | |
| 30 | 5347103 | TUBE-COOLANT,1" [FROM 01/09/2026] | 1 | Price TBD | Out of stock | |
| 31 | 5417586 | HOSE-LOWER,RAD | 1 | $54.99 | In stock | |
| 32 | 7080841 | SPRINGBAND-CLAMP 27/12,GREEN | 2 | Price TBD | Out of stock | |
| 34 | 7546703 | NUT-6MM X 1 NYLOK-Z | 2 | Price TBD | Out of stock |
