Schematic diagram
Polaris•Schematic assembly
ELECTRICAL BATTERY
Product Description

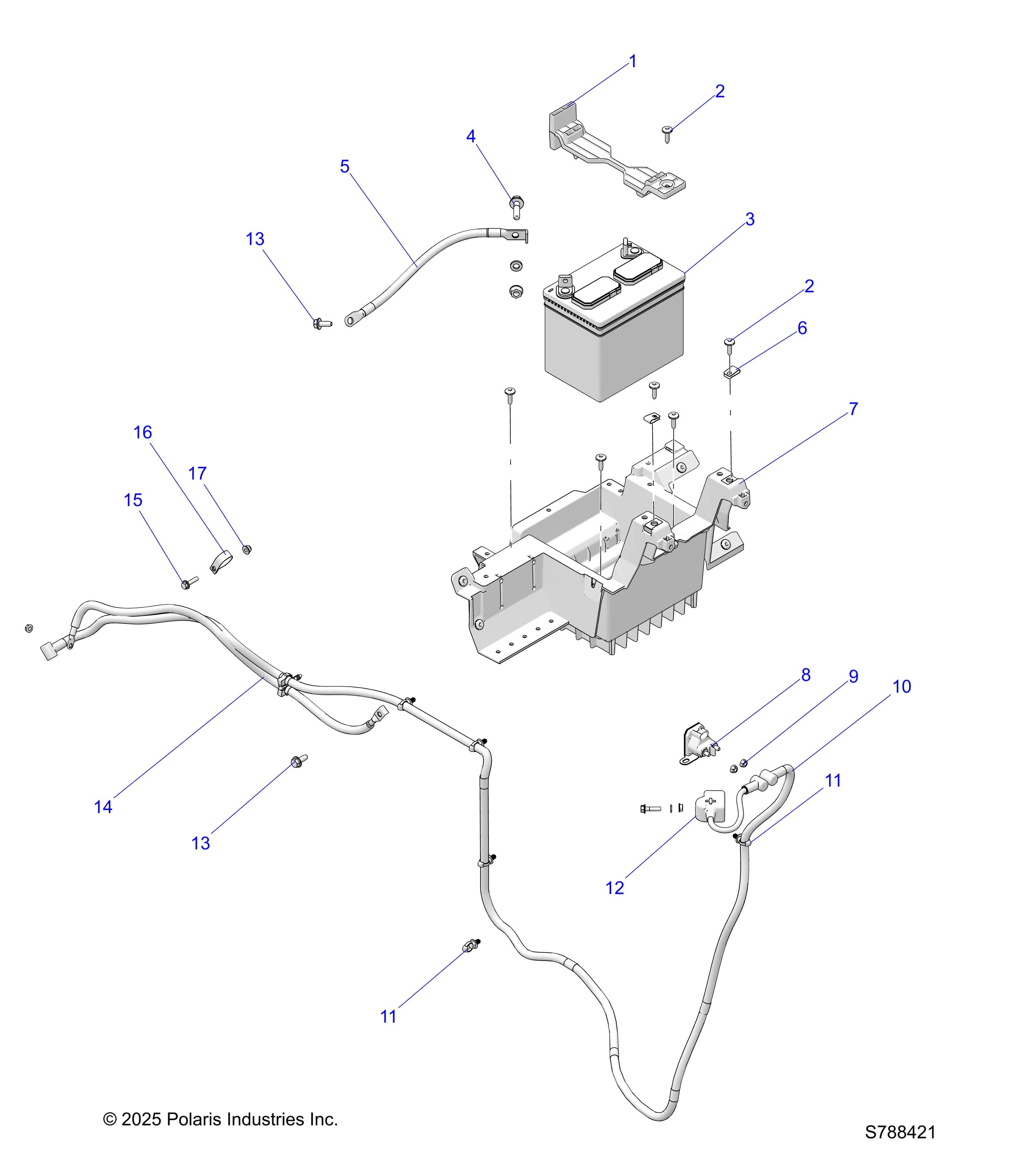

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238311
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5466952-070 | BRKT-BATTERY HOLD DOWN,BLK | 1 | Price TBD | Out of stock | |
| 2 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 10 | Price TBD | Out of stock | |
| 3 | 4017419 | BATTERY-U1,340CCA | 1 | $134.99 | In stock | |
| 4 | 2207682 | K-BATTERY BOLT | 2 | Price TBD | Out of stock | |
| 5 | 4083666 | CABLE-GROUND,BATTERY | 1 | $24.99 | In stock | |
| 6 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 3 | Price TBD | Out of stock | |
| 7 | 5466902-070 | PANEL-BATTERY TRAY,BLK | 1 | Price TBD | Out of stock | |
| 8 | 4014655 | SOLENOID-STARTER,SEALED | 1 | Price TBD | Out of stock | |
| 9 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 4 | Price TBD | Out of stock | |
| 10 | 4083391 | CABLE-STARTER [INCLUDES 12] | 1 | $99.99 | In stock | |
| 11 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 5 | Price TBD | Out of stock | |
| 12 | 4083399 | CABLE-BAT TO SOLENOID | 1 | $24.99 | In stock | |
| 13 | 7520764 | SCR-HXFL-M8X1.25X20 TAP ZY3 | 2 | Price TBD | Out of stock | |
| 14 | 4083667 | CABLE-GROUND,ENGINE | 1 | $29.99 | In stock | |
| 15 | 7518533 | SCR-HXFL-M6X1.0X25 8.8 RIE | 1 | Price TBD | Out of stock | |
| 16 | 7081854 | CLAMP-VINYL COATED,1.00IN ID | 1 | Price TBD | Out of stock | |
| 17 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | Price TBD | Out of stock |
