Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, WIRE HARNESS, CHASSIS
Product Description

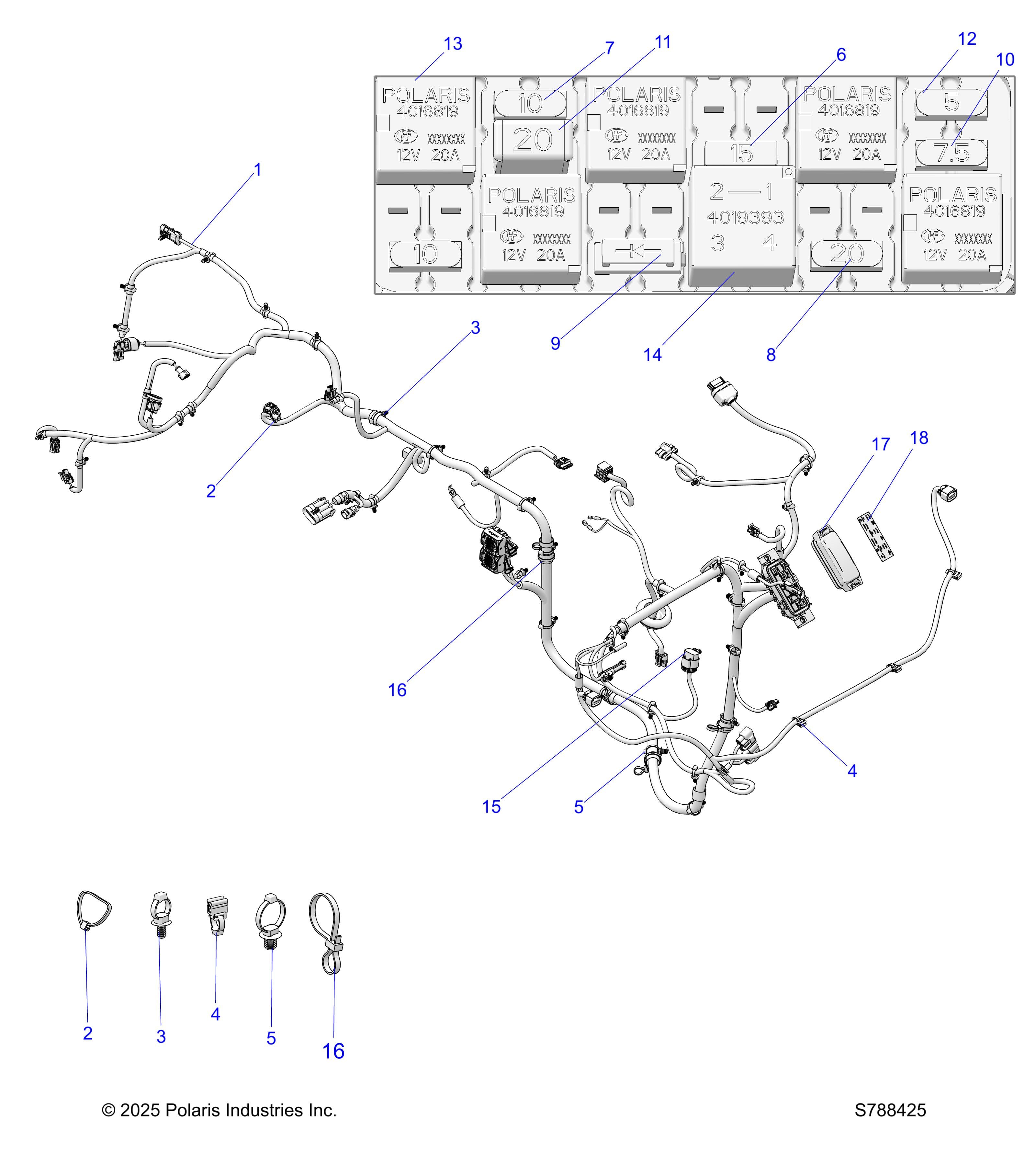

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238317
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2418397 | HARN-CHASSIS [INCLUDES ALL] | 1 | $1,049.99 | In stock | |
| 2 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 3 | Price TBD | Out of stock | |
