Polaris•Schematic assembly
ELECTRICAL, WIRE HARNESSES, COMPONENTS
Product Description

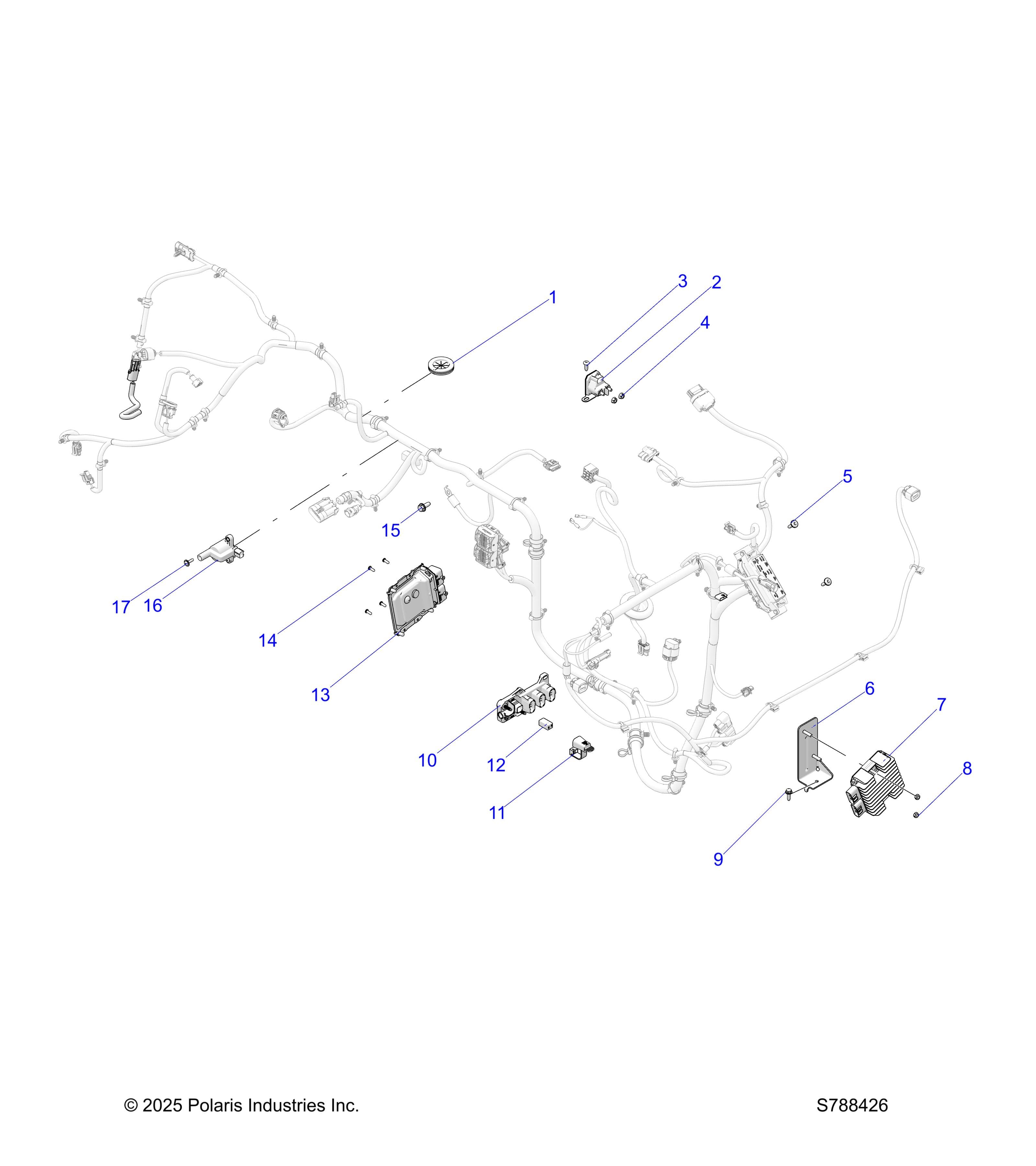

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238318
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5415049 | GROMMET-ELEC,CAB,SLIT | 1 | Price TBD | Out of stock | |
| 2 | 4014655 | SOLENOID-STARTER,SEALED | 1 | Price TBD | Out of stock | |
| 3 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 1 | Price TBD | Out of stock | |
| 4 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | Price TBD | Out of stock | |
| 5 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 6 | 1026443-329 | WELD-REGULATOR MOUNT,ECOAT | 1 | $44.99 | In stock | |
| 7 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | Price TBD | Out of stock | |
| 8 | 7546703 | NUT-6MM X 1 NYLOK-Z | 2 | Price TBD | Out of stock | |
| 9 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | Price TBD | Out of stock | |
| 10 | 4018346 | BLOCK-TERMINAL,3 POS [INCLUDES 11 & 12] | 1 | Price TBD | Out of stock | |
| 11 | 5456244 | COVER,TB,25A,JCASE | 1 | Price TBD | Out of stock | |
| 12 | 4018635 | FUSE-CARTRIDGE,25A | 1 | Price TBD | Out of stock | |
| 13 | 4014125 | ECM-HARD,ME17,2CYL,250K [DEALER INSTALL REQUIRED] | 1 | Price TBD | Out of stock | |
| 14 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | Price TBD | Out of stock | |
| 15 | 7520764 | SCR-HXFL-M8X1.25X20 TAP ZY3 | 1 | Price TBD | Out of stock | |
| 16 | 4015072 | COIL-IGNITION,SINGLE,W/DIODE | 1 | Price TBD | Out of stock | |
| 17 | 7518196 | SCR-10-24X3/4 PH/TX/TRI-SEMS Y | 2 | Price TBD | Out of stock |
