Polaris•Schematic assembly
ENGINE, CYLINDER HEAD, CAMS & VALVES
Product Description

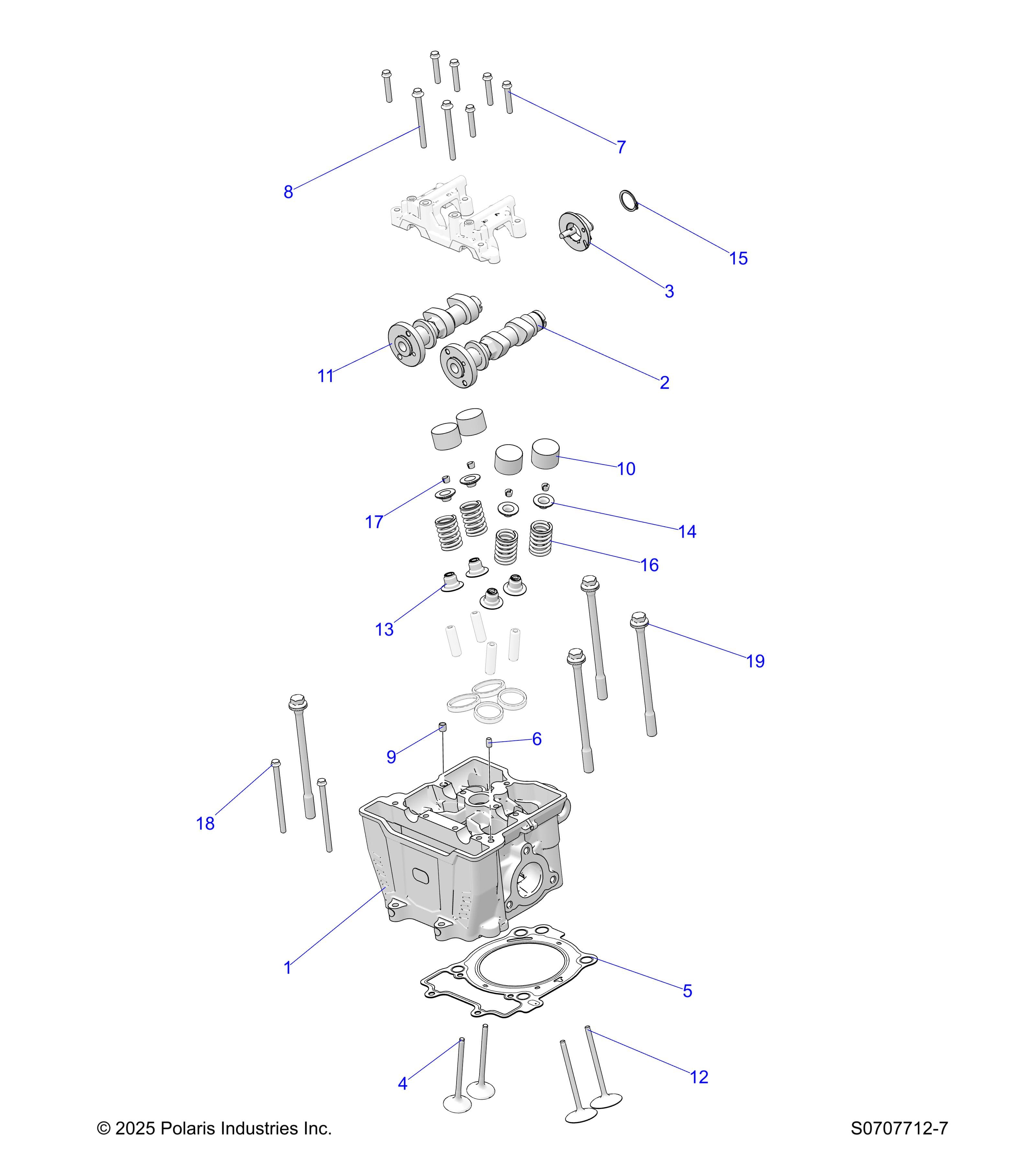

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238324
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 66 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1206207 | ASM-SUB CYL HEAD,1 CYL,DOHC [INCLUDES 1-4, 10, 12-14,16, 17] | 1 | Price TBD | Out of stock | |
| 1 | 3023692 | ASM-CYLINDER HEAD,1 CYL,MACH [INCLUDES 6] | 1 | Price TBD | Out of stock | |
| 2 | 3023632 | CAMSHAFT-EXH,MACH | 1 | Price TBD | Out of stock | |
| 3 | 1209426 | ASM-DECOMP SYSTEM,LH | 1 | Price TBD | Out of stock | |
| 4 | 3022349 | VALVE-EXHAUST,INCONEL [TO 05/15/2026] | 2 | Price TBD | Out of stock | |
| 4 | 3022883 | VALVE, EXHAUST, INCONEL [FROM 05/15/2026] | 2 | Price TBD | Out of stock | |
| 5 | 5814089 | GASKET-CYL HEAD | 1 | Price TBD | Out of stock | |
| 6 | 7662436 | PIN-DOWEL,M6X10 | 1 | Price TBD | Out of stock | |
| 7 | 7520460 | SCR-HXFL-M6X1.0X35 10.9 P&O | 6 | Price TBD | Out of stock | |
| 8 | 7521244 | SCR-HXFL M6X1.0X70 10.9 | 2 | Price TBD | Out of stock | |
| 9 | 7662437 | DOWEL-HOLLOW,M8X8 | 1 | Price TBD | Out of stock | |
| 10 | 5138477-440 | TAPPET, VALVE, GRADED, 4.400 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-442 | TAPPET, VALVE, GRADED, 4.425 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-445 | TAPPET, VALVE, GRADED, 4.450 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-448 | TAPPET, VALVE, GRADED, 4.475 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-450 | TAPPET, VALVE, GRADED, 4.500 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-452 | TAPPET, VALVE, GRADED, 4.525 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-455 | TAPPET, VALVE, GRADED, 4.550 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-458 | TAPPET, VALVE, GRADED, 4.575 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-460 | TAPPET, VALVE, GRADED, 4.600 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-462 | TAPPET, VALVE, GRADED, 4.625 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-465 | TAPPET, VALVE, GRADED, 4.650 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-468 | TAPPET, VALVE, GRADED, 4.675 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-470 | TAPPET, VALVE, GRADED, 4.700 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-472 | TAPPET, VALVE, GRADED, 4.725 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-475 | TAPPET, VALVE, GRADED, 4.750 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-478 | TAPPET, VALVE, GRADED, 4.775 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-480 | TAPPET, VALVE, GRADED, 4.800 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-482 | TAPPET, VALVE, GRADED, 4.825 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-485 | TAPPET, VALVE, GRADED, 4.850 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-488 | TAPPET, VALVE, GRADED, 4.875 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-490 | TAPPET, VALVE, GRADED, 4.900 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-492 | TAPPET, VALVE, GRADED, 4.925 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-495 | TAPPET, VALVE, GRADED, 4.950 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-498 | TAPPET, VALVE, GRADED, 4.975 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-500 | TAPPET, VALVE, GRADED, 5.000 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-502 | TAPPET, VALVE, GRADED, 5.025 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-505 | TAPPET, VALVE, GRADED, 5.050 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-508 | TAPPET, VALVE, GRADED, 5.075 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-510 | TAPPET, VALVE, GRADED, 5.100 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-512 | TAPPET, VALVE, GRADED, 5.125 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-515 | TAPPET, VALVE, GRADED, 5.150 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-518 | TAPPET, VALVE, GRADED, 5.175 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-520 | TAPPET, VALVE, GRADED, 5.200 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-522 | TAPPET, VALVE, GRADED, 5.225 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-525 | TAPPET, VALVE, GRADED, 5.250 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-528 | TAPPET, VALVE, GRADED, 5.275 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-530 | TAPPET, VALVE, GRADED, 5.300 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-532 | TAPPET, VALVE, GRADED, 5.325 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-535 | TAPPET, VALVE, GRADED, 5.350 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-538 | TAPPET, VALVE, GRADED, 5.375 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-540 | TAPPET, VALVE, GRADED, 5.400 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-542 | TAPPET, VALVE, GRADED, 5.425 | 0 | Price TBD | Out of stock | |
| 10 | 5138477-545 | TAPPET, VALVE, GRADED, 5.450 | 0 | Price TBD | Out of stock | |
| 11 | 3023626 | CAMSHAFT, INTAKE,MACH | 1 | Price TBD | Out of stock | |
| 12 | 3022134 | VALVE-INTAKE,STEEL,G-90 [TO 05/20/2026] | 2 | Price TBD | Out of stock | |
| 12 | 3022884 | VALVE, INTAKE, STEEL [FROM 05/20/2026] | 2 | Price TBD | Out of stock | |
| 13 | 3610212 | SEAT-W/SEAL,VALVE SPRING [TO 09/08/2025] | 8 | Price TBD | Out of stock | |
| 13 | 3024533 | SEAL-VALVE STEM,SPRING SEAT [FROM 09/08/2025] [TO 08/06/2026] | 8 | Price TBD | Out of stock | |
| 13 | 3024576 | SEAL-VALVE STEM,SPRING SEAT [FROM 09/08/2026] | 8 | Price TBD | Out of stock | |
| 14 | 5138435 | RETAINER,VALVE | 4 | Price TBD | Out of stock | |
| 15 | 7710653 | RING-SNAP EXT 23MM | 1 | Price TBD | Out of stock | |
| 16 | 7046204 | SPRING-VALVE | 4 | Price TBD | Out of stock | |
| 17 | 7081470 | KEEPER-VALVE | 8 | Price TBD | Out of stock | |
| 18 | 7519153 | SCR-HXFLG,M6X1.0X90 | 2 | Price TBD | Out of stock | |
| 19 | 7520144 | SCREW-HXFL-M11X1.25X150 SAE4037 | 4 | Price TBD | Out of stock |
