Polaris•Schematic assembly
FUEL SYSTEM
Product Description

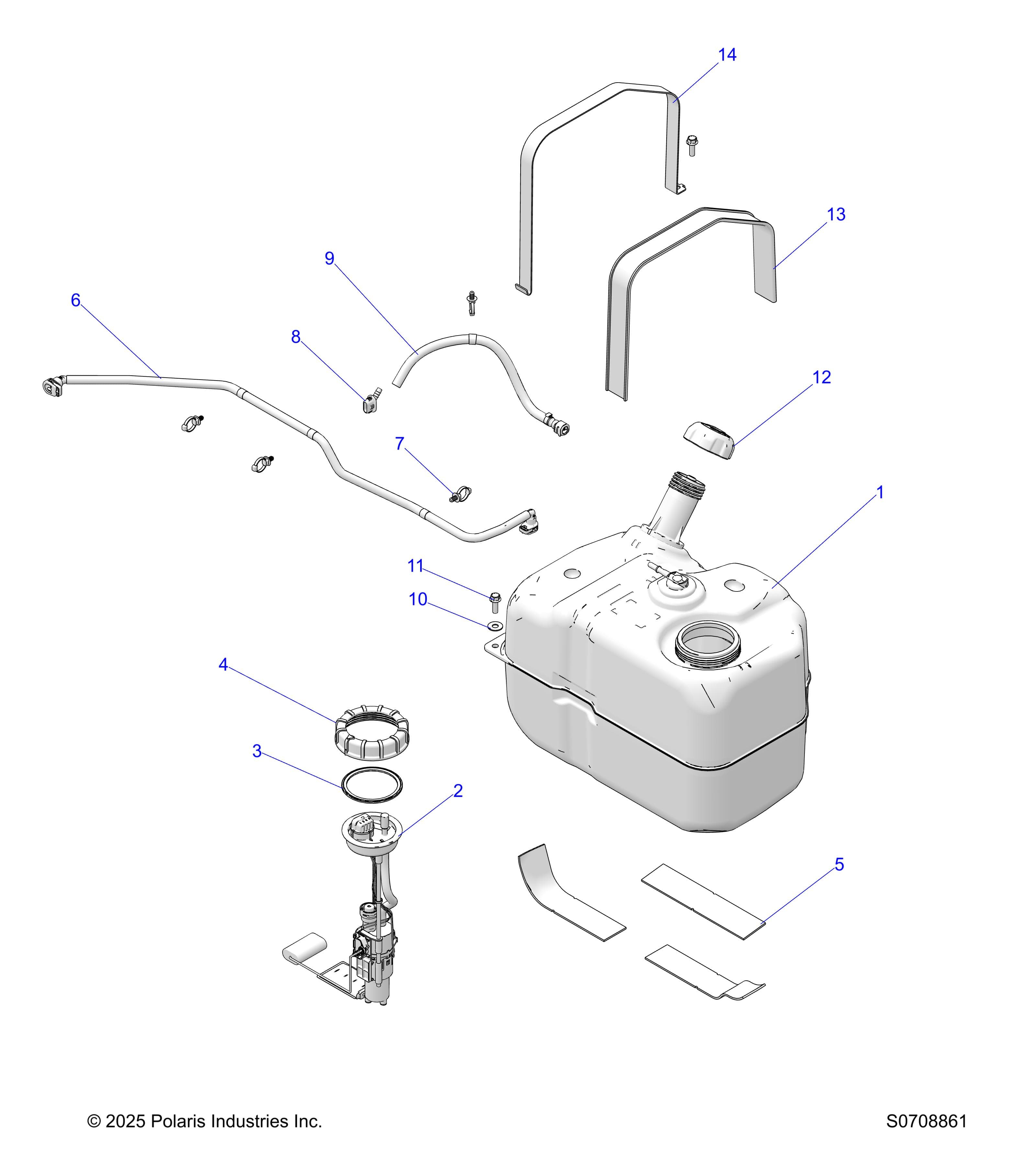

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238335
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2522410 | ASM-FUEL TANK,RANGER,MS [INCLUDES PUMP] | 1 | $1,099.99 | In stock | |
| 2 | 2208711 | K-FUEL PUMP [INCLUDES 3 & 4] | 1 | $489.99 | In stock | |
| 3 | 5413451 | GASKET-PFA,RIBBED | 1 | Price TBD | Out of stock | |
| 4 | 5437138 | NUT-MASON JAR | 1 | Price TBD | Out of stock | |
| 5 | 5814781 | PAD-TANK,MOUNT | 3 | Price TBD | Out of stock | |
| 6 | 2522913 | ASM-FUEL LINE,570 | 1 | $104.99 | In stock | |
| 7 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 4 | Price TBD | Out of stock | |
| 8 | 5456372 | FITTING-VENT LINE,45 | 1 | Price TBD | Out of stock | |
| 9 | 2522445 | ASM-LINE,TANK TO VENT,RDO | 1 | $44.99 | In stock | |
| 10 | 7519243 | SCR-HXFL-M8X1.25X25 8.8 ZODP30 | 2 | Price TBD | Out of stock | |
| 11 | 7555976 | WASHER-.390X.940X.060,FL-Y | 1 | Price TBD | Out of stock | |
| 12 | 2521937 | CAP-GAS TANK,TETHER | 1 | Price TBD | Out of stock | |
| 13 | 5522265 | PAD-STRAP,RUBBER | 1 | Price TBD | Out of stock | |
| 14 | 5270400 | BRKT-TANK,STRAP | 1 | $34.99 | In stock |
