Polaris•Schematic assembly

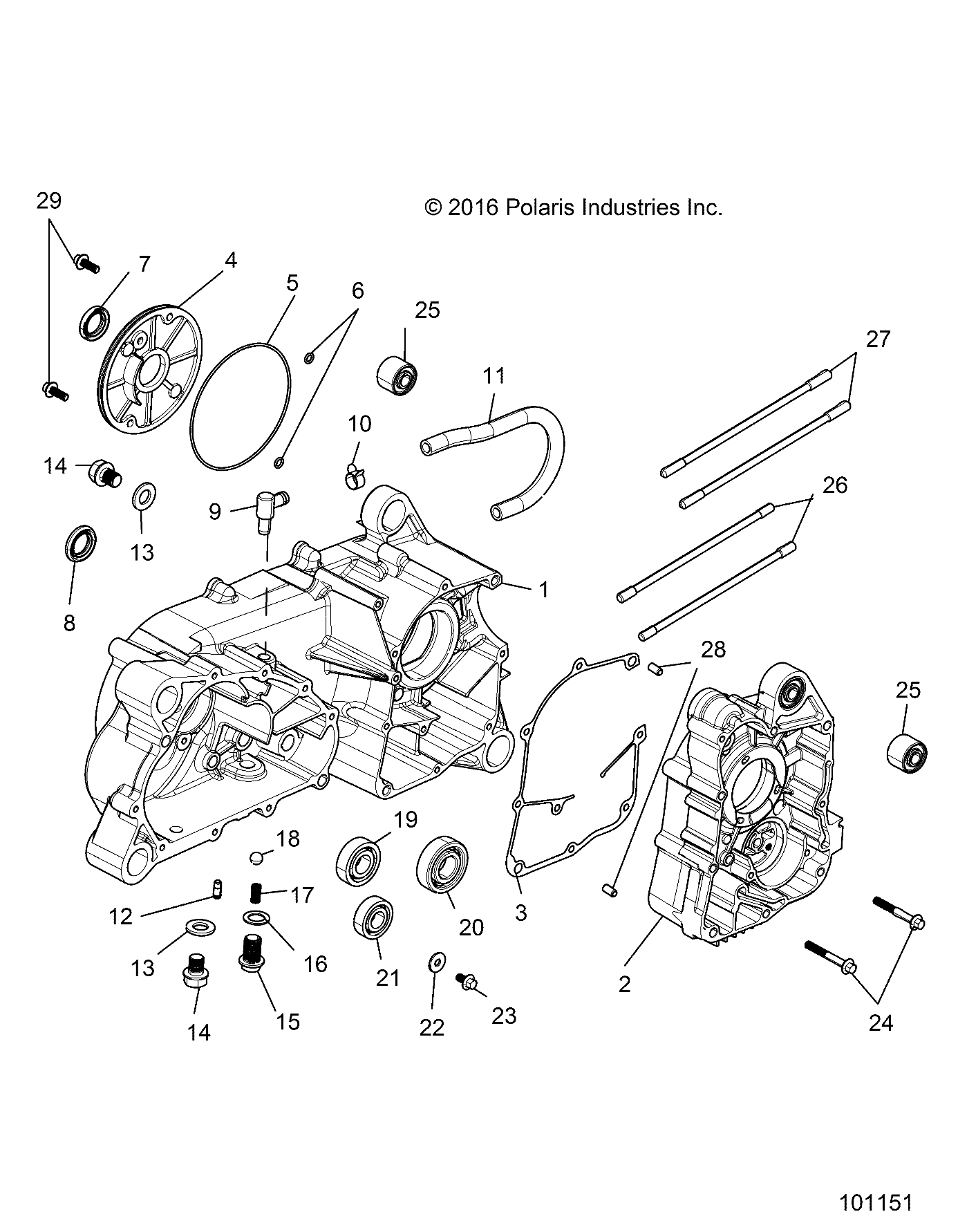

ENGINE, CRANKCASE COMP LEFT/RIGHT - R26HZA15A5/B5 (101151)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 150 EFI Assembly ID: 240936
Vehicle Compatibility
- 2026 Polaris RANGER 150 EFI
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3050019 | CRANKCASE, LH | 1 | $449.99 | In stock | |
| 2 | 3050020 | CRANKCASE, RH | 1 | $209.99 | In stock | |
| 3 | 3050348 | GASKET-CRANKCASE | 1 | $13.99 | In stock | |
| 4 | 3050022 | COVER | 1 | $9.99 | In stock | |
| 5 | 3050023 | O-RING 107X2 | 1 | $6.99 | In stock | |
| 6 | 3050024 | O-RING 6X1.8 | 2 | $0.99 | In stock | |
| 7 | 3050025 | OIL SEAL 19.8X30X5 | 1 | $19.99 | In stock | |
| 8 | 3050026 | OIL SEAL 20X32X6 | 1 | $8.99 | In stock | |
| 9 | 3050027 | VENTILATION PIPE | 1 | $10.99 | In stock | |
| 10 | 3050028 | STEEL STRIP TYPE ELASTIC RING HOOOP (16) | 1 | $1.49 | In stock | |
| 11 | 8450178-33 | HOSE-3/8" SAE J30R7,33CM | 1 | $39.99 | In stock | |
| 12 | 3050029 | BOX OUTLET NOZZLE | 1 | $10.99 | In stock | |
| 13 | 3050030 | WASHER 12 | 2 | $4.99 | In stock | |
| 14 | 3050031 | BOLT M12X1.5 | 2 | $4.99 | In stock | |
| 15 | 3050032 | LOCATING BOLT M14X20.8 | 1 | $5.99 | Out of stock Est. Sep 7, 2026 | |
| 16 | 3050033 | WASHER 14.2X22X1.3 | 1 | $4.99 | In stock | |
| 17 | 3050034 | POSITIONING SPRING | 1 | $4.99 | In stock | |
| 18 | 3050035 | STEEL BALL SO10.319 | 1 | $5.99 | In stock | |
| 19 | 3050322 | BALL BEARING 6203 | 1 | $34.99 | In stock | |
| 20 | 3050323 | BALL BEARING 6204 | 1 | $39.99 | In stock | |
| 21 | 3050324 | BALL BEARING 6202 | 1 | $29.99 | In stock | |
| 22 | 3050036 | WASHER 6X18X1.6 | 1 | $4.99 | In stock | |
| 23 | 3050325 | BOLT M6X12 | 1 | $4.99 | In stock | |
| 24 | 3050326 | BOLT M6 � 50 | 2 | $5.99 | In stock | |
| 25 | 3050037 | ENGINE HANGER BUSH | 2 | $8.99 | In stock | |
| 26 | 3050038 | BOLT, CYLINDER STUD M8X187.5 | 2 | $29.99 | In stock | |
| 27 | 3050039 | BOLT, CYLINDER STUD M8X196 | 2 | $29.99 | In stock | |
| 28 | 3050040 | PIN 8 � 6.5 � 14 | 2 | $4.99 | In stock | |
| 29 | 3050327 | HEXAGON FLANGE BOLTS M16X18 | 2 | $4.99 | In stock |
