Schematic diagram
Polaris•Schematic assembly

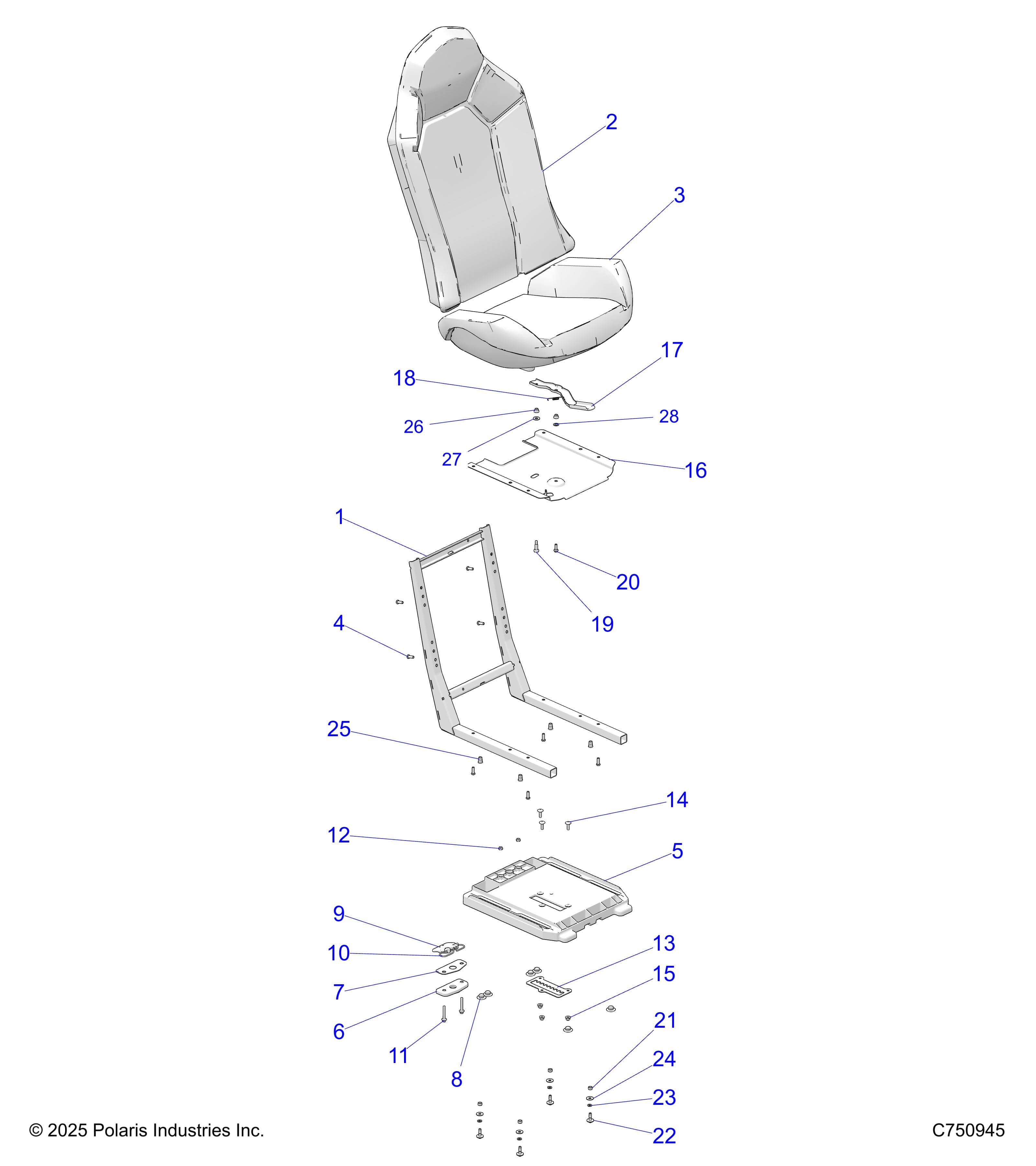

BODY, SEAT ASM. AND SLIDER - Z26A5F87A6 (C750945)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR 900 TRAIL ULTIMATE Assembly ID: 241083
Vehicle Compatibility
- 2026 Polaris RZR 900 TRAIL ULTIMATE
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1021289 | WELD-FRAME, SEAT | 2 | $89.99 | In stock | |
| 2 | 2693359 | ASM-SEAT,BACK,IRED/BLK,B ST | 2 | $509.99 | In stock | |
| 2 | 7547387 | NUT-INSERT,1/4-20 | 8 | Price TBD | Out of stock | |
| 3 | 2693360 | ASM-SEAT BTM,IRED/BLK,B ST | 2 | $519.99 | In stock | |
| 3 | 7547387 | NUT-INSERT,1/4-20 | 8 | Price TBD | Out of stock | |
| 4 | 7515177 | SCREW-1/4-20x3/4 BH TRX, GR5-Z | 16 | $3.99 | In stock | |
| 5 | 2685704 | ASM-BASE,SEAT SLIDER [INCL. 5-14, QTY 6 OF 15] | 1 | $259.99 | In stock | |
| 5 | 2634889 | ASM-BASE,SEAT [INCL. 6-12] | 2 | $164.99 | In stock | |
| 6 | 5450510-070 | LATCH, COVER PLATE, BLACK | 2 | $6.99 | In stock | |
| 7 | 5258647 | PLATE-LATCH,SEAT | 2 | $7.99 | In stock | |
| 8 | 5413441 | GROMMET, SEAT, BASE | 12 | Price TBD | Out of stock | |
| 9 | 5437121 | HANDLE-SEAT BASE LATCH | 2 | $5.99 | In stock | |
| 10 | 7082653 | SPRING-LATCH,SEAT | 2 | $44.99 | In stock | |
| 11 | 7517610 | SCREW-M6X1.00X40-HX/FL-YD | 4 | Price TBD | Out of stock | |
| 12 | 7546703 | NUT-6MM X 1 NYLOK-Z | 4 | Price TBD | Out of stock | |
| 13 | 5270634 | BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE | 2 | $17.99 | In stock | |
| 14 | 7518994 | SCR-RHCARM6X1.0X20 8.8 ZOD | 3 | $3.99 | In stock | |
| 15 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 5 | Price TBD | Out of stock | |
| 16 | 5261437 | BRACKET, SEAT SLIDER MOUNTING PLATE | 1 | $74.99 | In stock | |
| 17 | 5260733 | BRACKET, SEAT SLIDER LEVER | 1 | $34.99 | In stock | |
| 18 | 7044099 | SPRING | 1 | $6.99 | In stock | |
| 19 | 7518786 | SCR-SH-M6X1.0X9.5 12.9 ZY3 | 1 | $2.99 | In stock | |
| 20 | 7518897 | BOLT, SHOULDER | 1 | $1.99 | In stock | |
| 21 | 5340145 | TUBE, SPACER | 4 | $6.99 | In stock | |
| 22 | 7519296 | SCR-1/4-20X1-BH-TRX-GR5-Z | 8 | $1.99 | In stock | |
| 23 | 7552801 | WASHER-1/4 SPRING LOCK-Y | 8 | $1.99 | In stock | |
| 24 | 7555859 | WASHER-FL .281X.750X.062-Y | 8 | $1.49 | In stock | |
| 25 | 7547798 | INSERT-1/4-20,HEX HEAD | 8 | $5.99 | In stock | |
| 26 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 27 | 7556830 | WASHER-PLASTIC | 1 | $0.49 | In stock | |
| 28 | 7556831 | WASHER-SPRING | 1 | $0.49 | In stock |
