Schematic diagram
Polaris•Schematic assembly

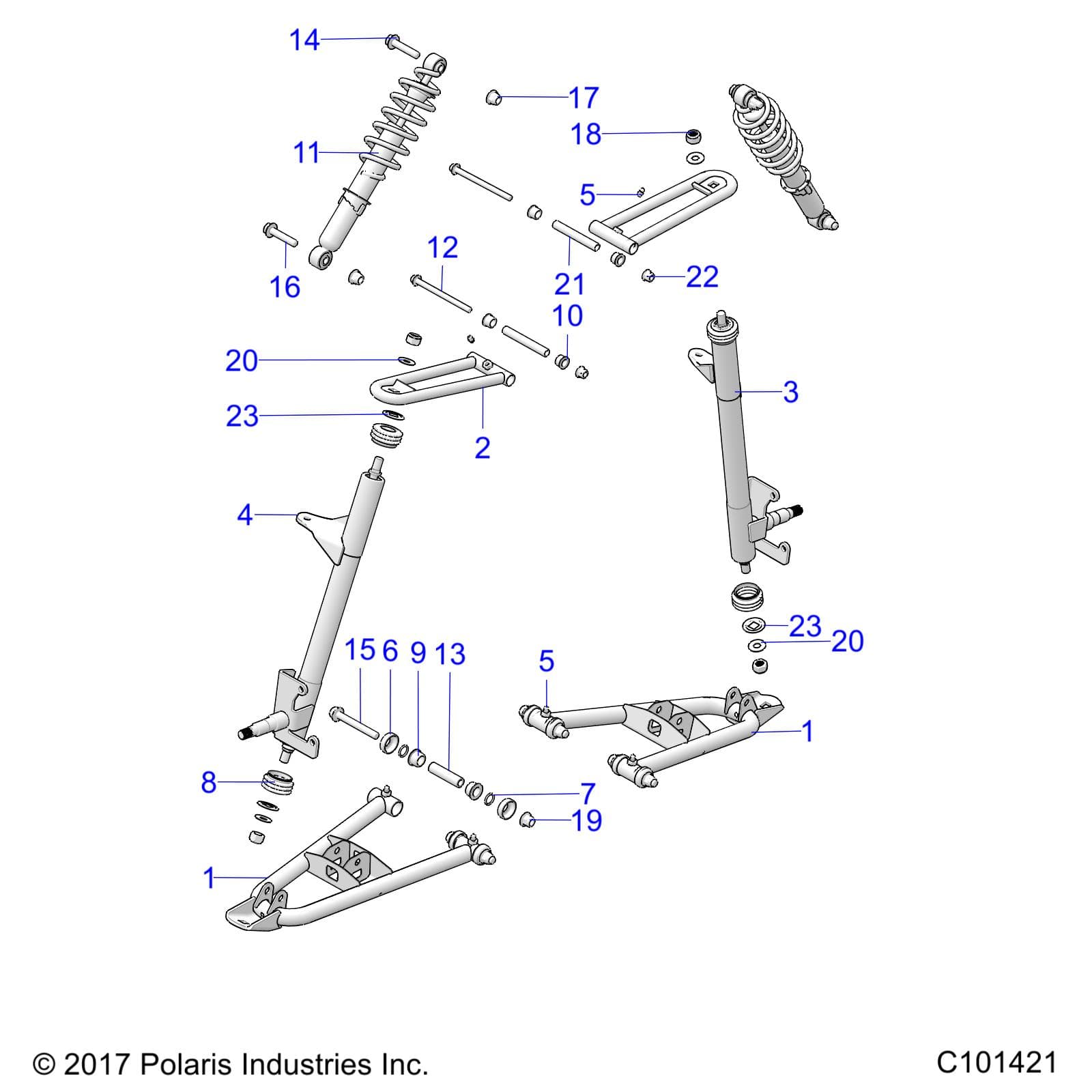

SUSPENSION, FRONT - R26HZA15D5 (C101421)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 150 EFI AU Assembly ID: 241212
Vehicle Compatibility
- 2026 Polaris RANGER 150 EFI AU
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1543782-458 | WELD-A-FRAME,LWR,FRT,BLK | 2 | $149.99 | In stock | |
| 2 | 1543783-458 | WELD-A-FRAME,UPPER,FRT,BLK | 2 | $49.99 | In stock | |
| 3 | 1824974-458 | ASM-STEERING SPINDLE,RH,BLACK | 1 | $184.99 | In stock | |
| 4 | 1824973-458 | ASM-STEERING SPINDLE,LH,BLACK | 1 | $184.99 | In stock | |
| 5 | 7082290 | FITTING-LUB,M6X1-STR/1792-Y | 6 | $8.99 | In stock | |
| 6 | 5416085 | CAP-LWR SUSPENSION ARM,DUST | 8 | $9.99 | In stock | |
| 7 | 5416086 | SEAL-O-RING,21.2X2.65 | 8 | $1.49 | In stock | |
| 8 | 5416087 | SEAL-BALL HEAD,DUST,SPINDLE | 4 | $12.99 | Out of stock Est. Aug 3, 2026 | |
| 9 | 5453651 | BUSHING-LWR SUSPENSION ARM | 8 | $10.99 | In stock | |
| 10 | 5453653 | BUSHING-UPPER SUSPENSION ARM | 4 | $10.99 | In stock | |
| 11 | 7045180 | ASM-SHOCK,FR,MZ | 2 | $284.99 | In stock | |
| 12 | 7517409 | SCR-HXFL-M8X1.25X110 10.9 ZPC | 2 | $29.99 | In stock | |
| 13 | 7556999 | COLLAR-LWR SUSPENSION ARM | 4 | $8.99 | In stock | |
| 14 | 7518971 | SCR-M10X1.5X50 8.8 HX/FL ZOD | 2 | $7.99 | In stock | |
| 15 | 7519143 | SCR-HXFL-M10X1.5X80 10.9 ZY3 | 4 | $12.99 | In stock | |
| 16 | 7518971 | SCR-M10X1.5X50 8.8 HX/FL ZOD | 2 | $7.99 | In stock | |
| 17 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 4 | $2.99 | In stock | |
| 18 | 7547796 | NUT-HEX,M12X1.25 8 ZPC NYL | 4 | $4.99 | In stock | |
| 19 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 4 | $2.99 | In stock | |
| 20 | 7556212 | WASHER-7/16 SAE,STF,THRU-HRD-Y | 4 | $10.99 | In stock | |
| 21 | 7556998 | COLLAR-UPPER SUSPENSION ARM | 4 | $8.99 | In stock | |
| 22 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | $4.99 | In stock | |
| 23 | 7556996 | SPACER-BALL HEAD,SPINDLE | 4 | $0.79 | In stock |
