Schematic diagram
Polaris•Schematic assembly

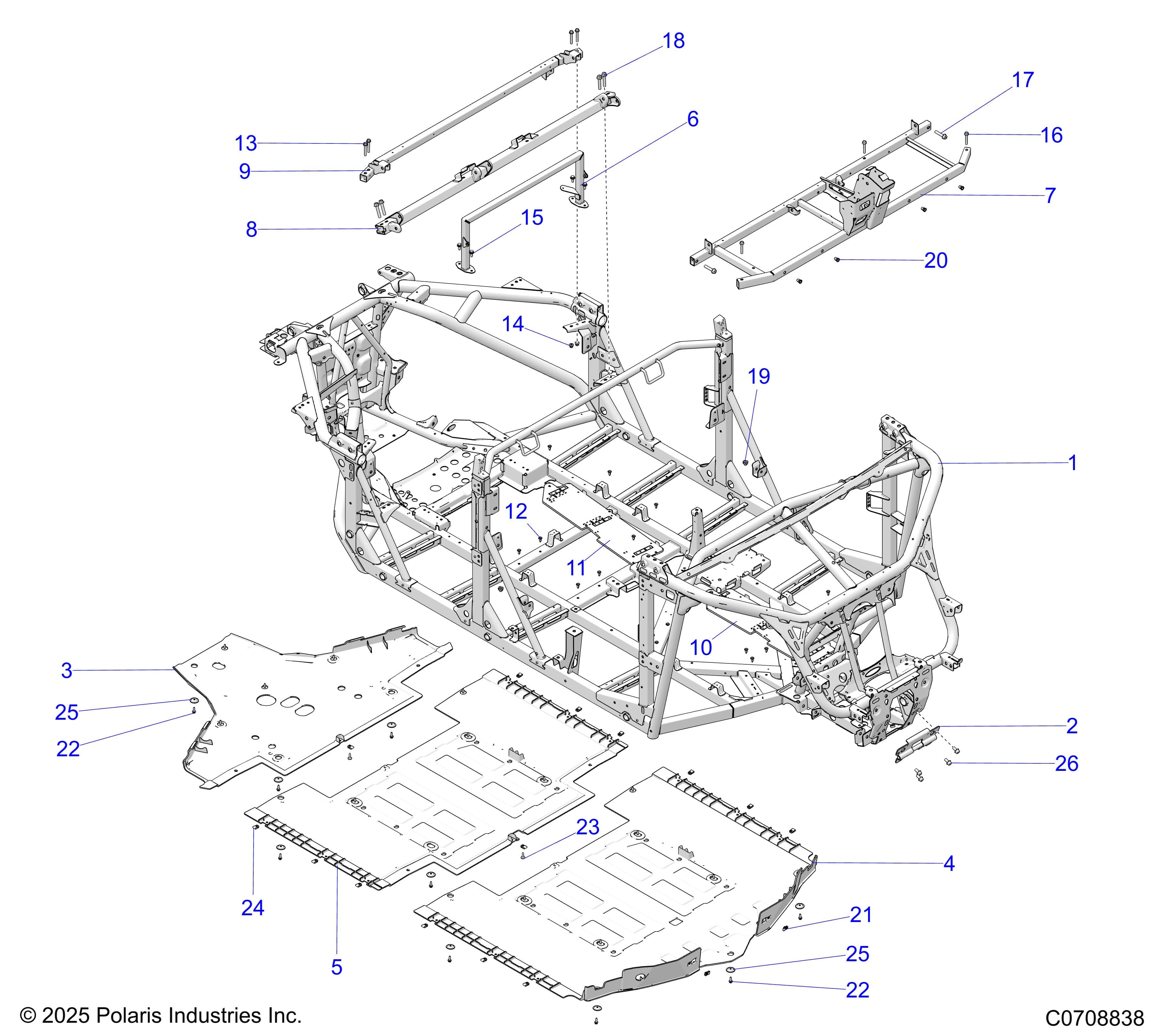

CHASSIS, MAIN FRAME AND SKID PLATES
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241678
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2213262 | K-FRAME,MAIN,XPED,MP | 1 | $4,634.99 | In stock | |
| 2 | 1025545-458 | WELD-COVER,TOW,BLK | 1 | $49.99 | In stock | |
| 3 | 5456840-070 | PLATE-SKID,REAR,BLK | 1 | $209.99 | In stock | |
| 4 | 5466822-070 | PLATE-SKID,FRONT,BLK | 1 | $399.99 | In stock | |
| 5 | 5466823-070 | PLATE-SKID,MID,MP,BLK | 1 | $264.99 | In stock | |
| 6 | 1025550-329 | WELD-SEAT BASE,SUPPORT,RR,BLK | 1 | $79.99 | In stock | |
| 7 | 1029768-329 | WELD-SEAT BASE,FRONT,ECOAT | 1 | $314.99 | In stock | |
| 8 | 1029769-329 | WELD-SEAT BASE,REAR,ECOAT | 1 | $159.99 | In stock | |
| 9 | 1027562-329 | WELD-TUBE,CLOSEOFF,MP,ECOAT | 1 | $139.99 | Out of stock Est. Aug 31, 2026 | |
| 10 | 5457276-070 | TRAY-ROUTING,LH,BLK | 1 | $39.99 | In stock | |
| 11 | 5457599-070 | TRAY-ROUTING,REAR,BLK | 1 | $39.99 | In stock | |
| 12 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 17 | Price TBD | Out of stock | |
| 13 | 7521332-55 | SCR-HXFL-M8X1.25X55 10.9 ZFB | 4 | $3.99 | In stock | |
| 14 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 15 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 4 | Price TBD | Out of stock | |
| 16 | 7521332-50 | SCR-HXFL-M8X1.25X50 10.9 ZFB | 3 | Price TBD | Out of stock | |
| 17 | 7521333-50 | SCR-HXFL-M10X1.5X50 10.9 ZFB | 2 | $3.99 | In stock | |
| 18 | 7521333-55 | SCR-HXFL-M10X1.5X55 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 19 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 20 | 7548098 | NUT-RIVNUT,HEX,M8X1.25 | 4 | $3.99 | In stock | |
| 21 | 7081305 | CLIP-U SPEED NUT | 2 | Price TBD | Out of stock | |
| 22 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 24 | Price TBD | Out of stock | |
| 23 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 24 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 14 | Price TBD | Out of stock | |
| 25 | 7556065 | WASHER-SKID PLATE | 24 | Price TBD | Out of stock | |
| 26 | 7521333-20 | SCR-HXFL-M10X1.5X20 10.9 ZFB | 4 | Price TBD | Out of stock |
