Schematic diagram
Polaris•Schematic assembly
BODY, BOX, MOUNTING
Product Description

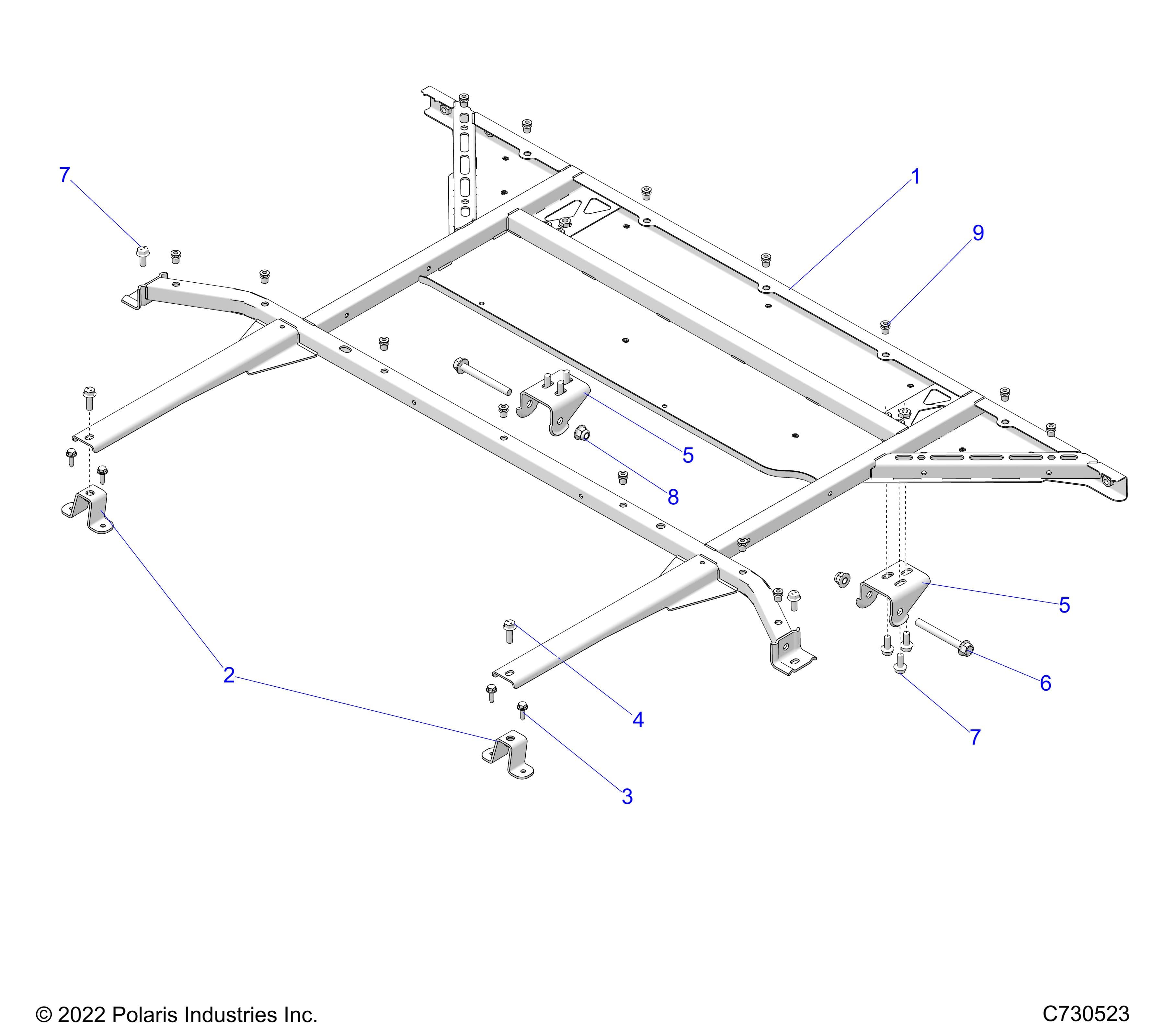

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241748
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1028454-458 | WELD-BOX,CARGO,ADV | 1 | $409.99 | In stock | |
| 2 | 1026941-408 | WELD-BRKT,BOX MNT,ZN COTED,BLK | 2 | $29.99 | In stock | |
| 3 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 4 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 5 | 5271896-458 | BRKT-HINGE,CHASSIS,BLK | 2 | $15.99 | In stock | |
| 6 | 7521333-90 | SCR-HXFL-M10X1.5X90 10.9 ZPB | 2 | Price TBD | Out of stock | |
| 7 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 8 | Price TBD | Out of stock | |
| 8 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 9 | 7547790 | NUT-RIVNUT,HEX,M6X1.00 | 14 | Price TBD | Out of stock |
