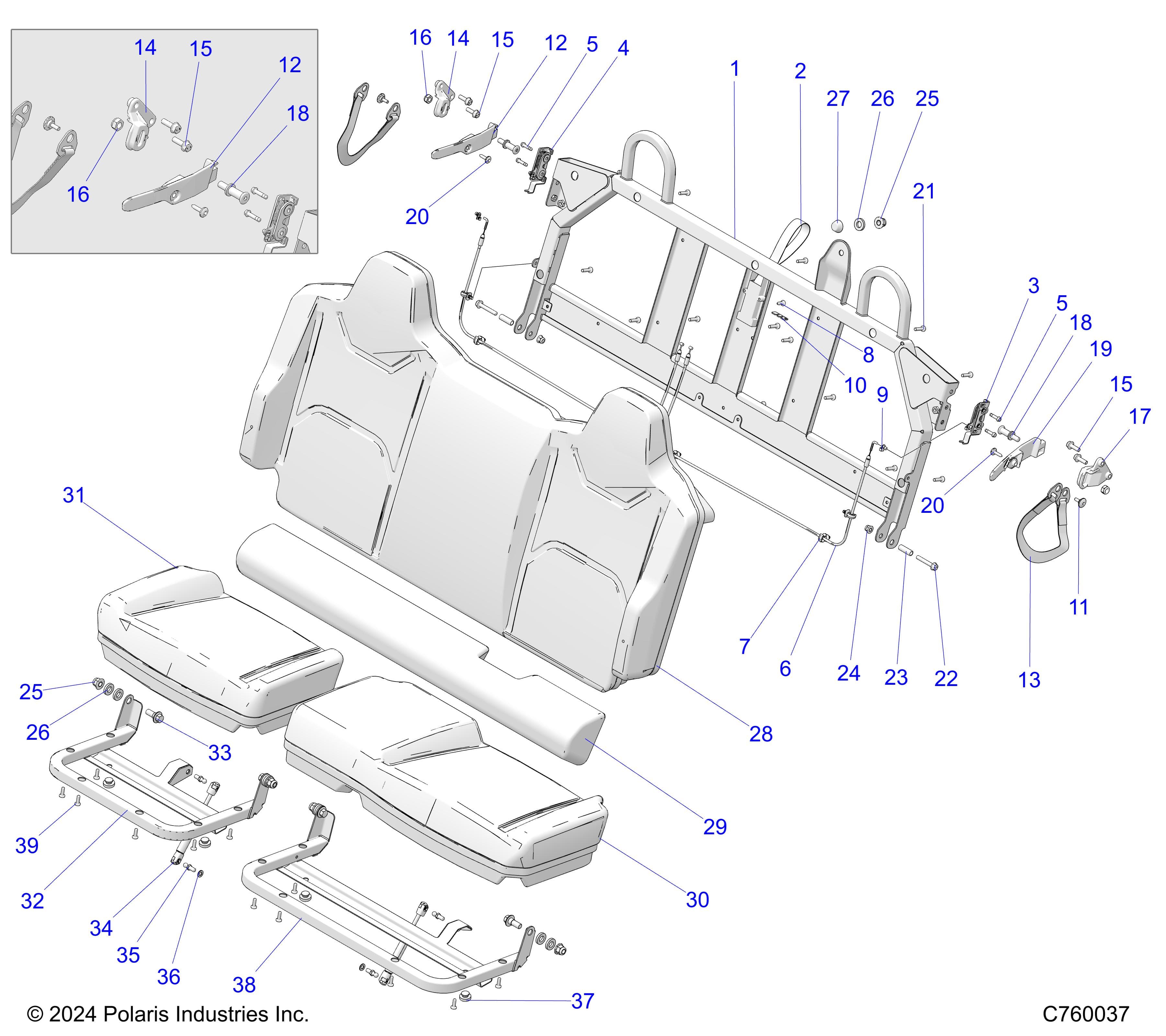

2026 POLARIS XPEDITION ADV 5 NORTHSTAR — BODY, SEAT ASM., REAR diagram

Schematic diagram

Polaris•Schematic assembly

BODY, SEAT ASM., REAR

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241767

Vehicle Compatibility

  • 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR

Checkout Note

Please note that 23 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
12637886ASM-SEAT,MIDGATE [INCLUDES 1-10]1$759.99
In stock
11027883-458WELD-SEAT,MIDGATE,BLK1$449.99
In stock
22638649ASM-STRAP,SEAT RELEASE1$24.99
In stock
37082759ASM-LATCH,RTRY,2 STG,LH1Price TBD
Out of stock
47082760ASM-LATCH,RTRY,2 STG,RH1Price TBD
Out of stock
57519297SCREW-HXFLG,M6X1.0X25,10.94Price TBD
Out of stock
67082618CABLE-MIDGATE2$17.99
In stock
77662310CLIP-NYLON, C, FIR-TREE6Price TBD
Out of stock
87519045SCR-TX TRUSS-#14X3/4, HI/LO ZBK2Price TBD
Out of stock
95454637CLIP-DOOR LATCH2Price TBD
Out of stock
105272128-329PLATE-CABLE RETAINER,ECOAT1$6.99
In stock
117520730SCR-TXTH-M6X1.0X20 ZPB SHDR2Price TBD
Out of stock
125466023HOOK-SEAT BELT RETAINER,RH1$12.99
In stock
132692852ASM-STRAP,SEAT SUPPORT2$24.99
In stock
145639681-329MOUNT-STRIKER,MIDGATE,RH,BLK1$89.99
In stock
157521332-25SCR-HXFL-M8X1.25X25 10.9 ZFB4Price TBD
Out of stock
167547658NUT-HEX-M10X1.5 8 ZB3 NYL2$1.99
In stock
175639680-329MOUNT-STRIKER,MIDGATE,LH,BLK1$89.99
In stock
187663104PIN-STRIKER,MIDGATE2$29.99
In stock
195466022HOOK-SEAT BELT RETAINER,LH1$12.99
In stock
207519650SCR-TXTH-M6X1.0X25 ZFB2Price TBD
Out of stock
217518158SCR-#14X1 HI/LO-PH-PN TRX-M16Price TBD
Out of stock
227521332-50SCR-HXFL-M8X1.25X50 10.9 ZFB2Price TBD
Out of stock
235144355-329SPACER-SEAT PIVOT,ECOAT2$10.99
In stock
247548028NUT-HXFL-M8X1.25 8 ZTB NYL2Price TBD
Out of stock
257548030NUT-HXFL-M12X1.75 8 ZTB NYL4Price TBD
Out of stock
265813829WASHER-SEATBELT,RUBBER8Price TBD
Out of stock
275455285CAP-BOLT HEAD1Price TBD
Out of stock
282693657COVER-SEAT,REAR,FULL,BACK,IRED [COVER ONLY] [AS] [BS]1$209.99
Out of stock
Est. Aug 6, 2026
282693427COVER-SEAT,REAR,FULL,BACK,TTM [COVER ONLY] [AJ] [BJ] [AH] [BH]1$209.99
In stock
292693670ASM-SEAT CENTER ROLL,BLK1$209.99
In stock
295815191BUN-SEAT,CENTER ROLL1$219.99
In stock
302693659COVER-SEAT,REAR,60,BTM,I-RED,G [COVER ONLY] [AS] [BS]1Price TBD
Out of stock
Est. Dec 11, 2026
302693428COVER-SEAT,REAR,60,BTM,TTM,GST [COVER ONLY] [AJ] [BJ] [AH] [BH]1$159.99
In stock
312693661COVER-SEAT,REAR,40,BTM,I-RED,G [COVER ONLY] [AS] [BS]1Price TBD
Out of stock
312693429COVER-SEAT,REAR,40,BTM,TTM,GST [COVER ONLY] [AJ] [BJ] [AH] [BH]1$124.99
In stock
321025590-329WELD-SEAT BASE,REAR,40,ECOAT1$144.99
In stock
337519770SCR-HXFLSH-M12X1.75-M14X9 ZOD4Price TBD
Out of stock
347046187SHOCK-GAS,230.20MM2$54.99
In stock
357083089BALL-END4Price TBD
Out of stock
367557234WSHR-FLAT-M8X1.6 ZTB2Price TBD
Out of stock
375412067BUMPER-RUBBER4Price TBD
Out of stock
381025589-329WELD-SEAT BASE,REAR,60,ECOAT1$169.99
In stock
397519731SCR-TXPH-#14 X .75 HI-LO RIE12Price TBD
Out of stock
