Polaris•Schematic assembly

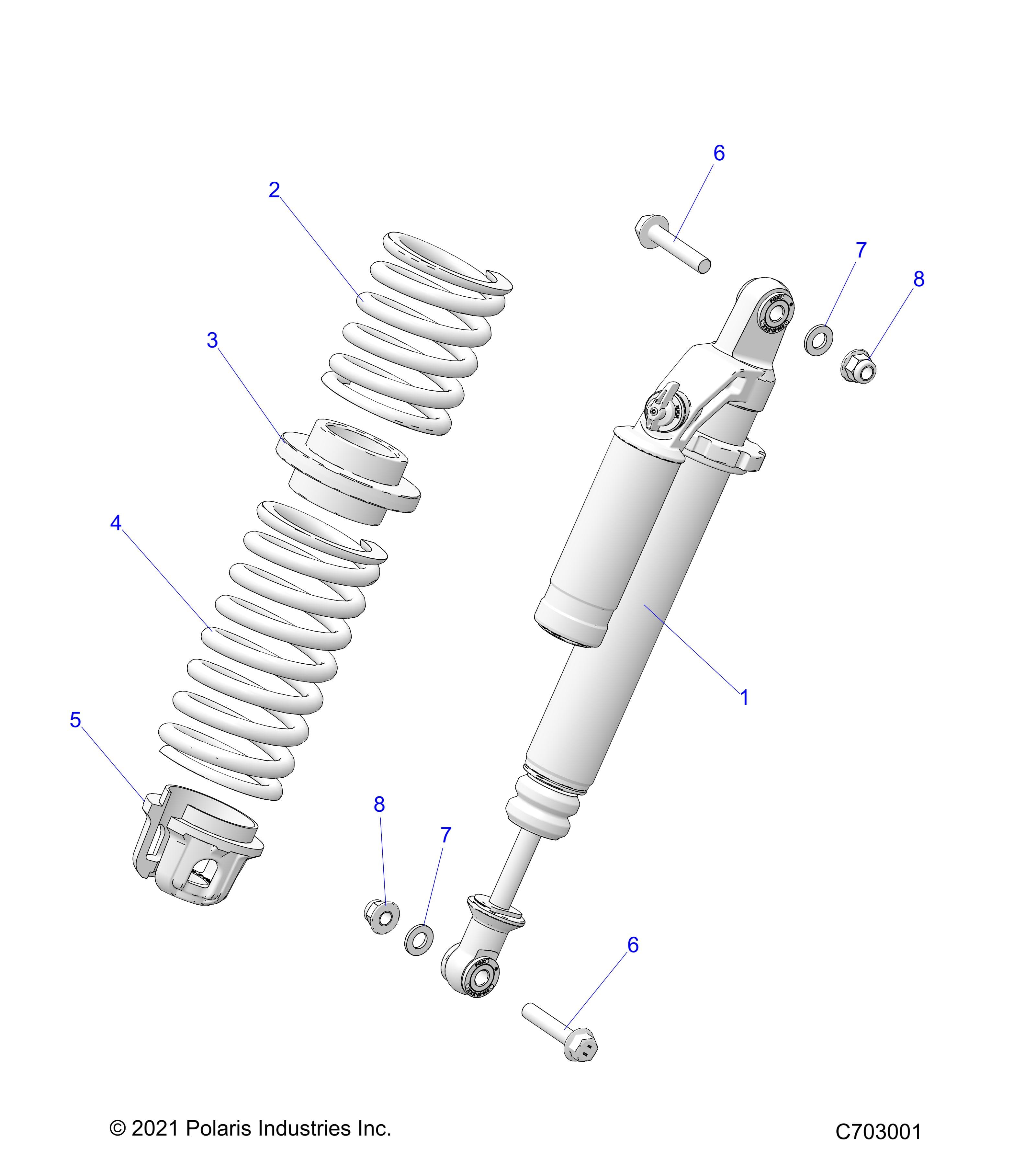

SUSPENSION, FRONT SHOCK MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION XP5 NORTHSTAR Assembly ID: 241780
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION XP5 NORTHSTAR
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1544699-293 | ASM-SHOCK,FRONT,MP,NS,LH,I.RED [INCLUDES 1-5] [INDY RED] | 1 | $1,144.99 | In stock | |
| - | 1544700-293 | ASM-SHOCK,FRONT,MP,NS,RH,I.RED [INCLUDES 1-5] [INDY RED] | 1 | $1,144.99 | In stock | |
| - | 1544699-705 | ASM-SHOCK,FRONT,MP,NS,LH,TTNM [INCLUDES 1-5] [TITANIUM METALLIC] | 1 | $1,144.99 | In stock | |
| - | 1544700-705 | ASM-SHOCK,FRONT,MP,NS,RH,TTNM [INCLUDES 1-5] [TITANIUM METALLIC] | 1 | $1,149.99 | In stock | |
| - | 1544699-458 | ASM-SHOCK,FRONT,MP,NS,LH,BLK [INCLUDES 1-5] [MATTE BLACK] | 1 | Price TBD | Out of stock | |
| - | 1544700-458 | ASM-SHOCK,FRONT,MP,NS,RH,BLK [INCLUDES 1-5] [MATTE BLACK] | 1 | $1,144.99 | Out of stock | |
| 1 | 7045672 | SHOCK-FRONT,MP,NS,LH | 1 | $829.99 | In stock | |
| 1 | 7045673 | SHOCK-FRONT,MP,NS,RH | 1 | $829.99 | In stock | |
| 2 | 7045668-293 | SPR-500 # 6.5FL 3-3ID,INDY RED [INDY RED] | 1 | $89.99 | In stock | |
| 2 | 7045668-705 | SPR-500 # 6.5FL 3-3ID,TTNM.MET [TITANIUM METALLIC] | 1 | $89.99 | In stock | |
| 2 | 7045669-458 | SPR-400 # 12.5FL 3-3ID,BLK [MATTE BLACK] | 1 | $134.99 | In stock | |
| 3 | 5457648 | SPACER-SPRING,57MM | 1 | Price TBD | Out of stock | |
| 4 | 7045669-293 | SPR-400 # 12.5FL 3-3ID,I.RED [INDY RED] | 1 | $134.99 | In stock | |
| 4 | 7045669-705 | SPR-400 # 12.5FL 3-3ID,TTNM.MT [TITANIUM METALLIC] | 1 | $134.99 | In stock | |
| 4 | 7045669-458 | SPR-400 # 12.5FL 3-3ID,BLK [MATTE BLACK] | 1 | $134.99 | In stock | |
| 5 | 5634606 | RETAINER-SPRING,CAST | 1 | Price TBD | Out of stock | |
| 6 | 7521334-60 | SCR-HXFL-M12X1.75X60 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 7 | 7556287 | WSHR-13.0X24.0X2.5 ZPC | 2 | Price TBD | Out of stock | |
| 8 | 7547686 | NUT-HXFL-M12X1.75,CL10,ZB | 4 | $5.99 | In stock |
