ENGINE, CYLINDER HEAD AND VALVES
Product Description

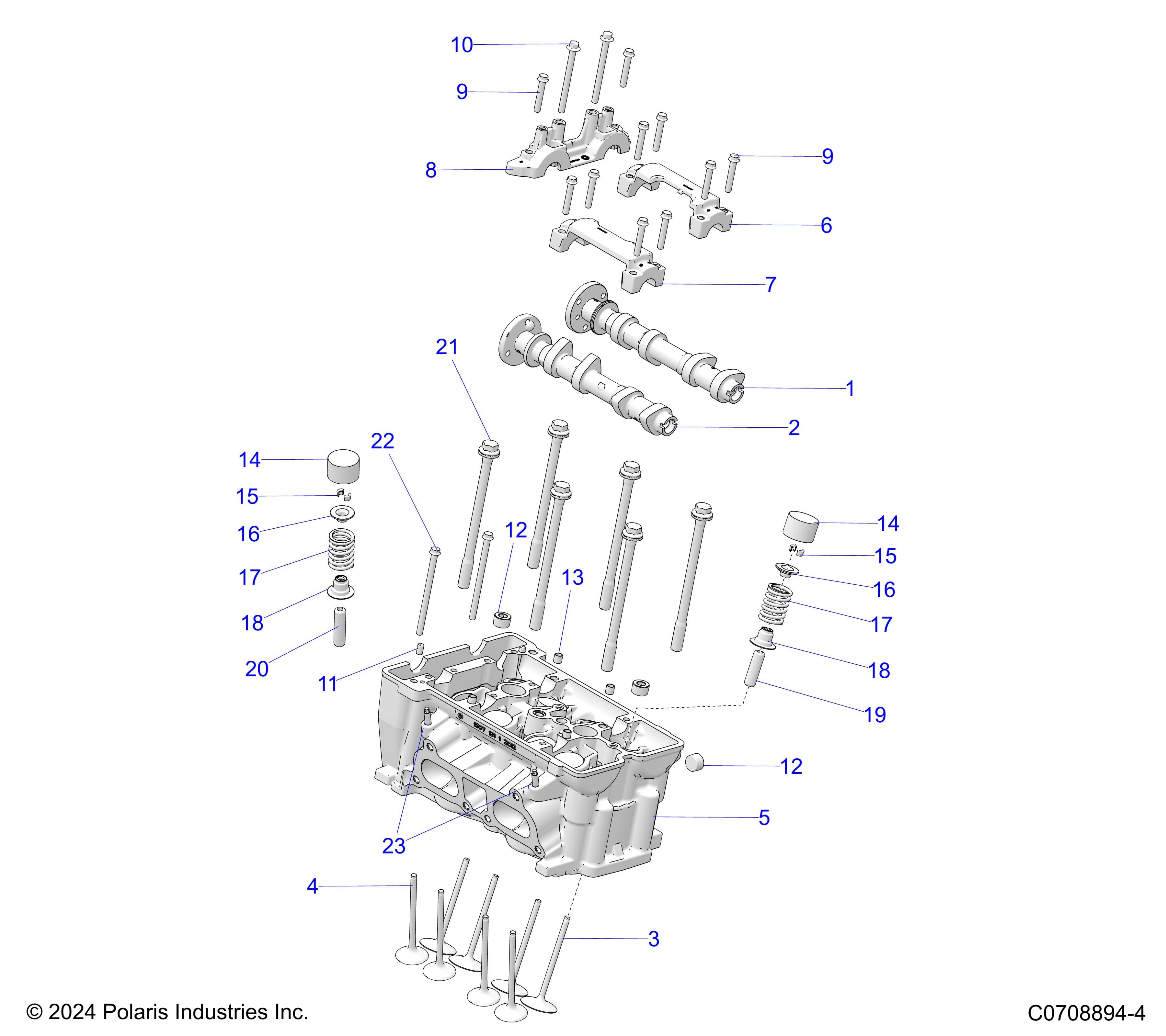

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241788
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 110 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1209280 | ASM-HEAD,COMPLETE [INCLUDES 1-20] | 0 | Price TBD | Out of stock | |
| 1 | 3024251 | CAMSHAFT-INT | 1 | Price TBD | Out of stock | |
| 2 | 3024252 | CAMSHAFT-EXH | 1 | Price TBD | Out of stock | |
| 3 | 3022134 | VALVE-INTAKE,STEEL,G-90 | 4 | $64.99 | In stock | |
| 4 | 3022883 | VALVE, EXHAUST, INCONEL | 4 | $84.99 | In stock | |
| 5 | 3024448 | ASM-CYLINDER,HEAD [INCLUDES 6-13] | 1 | Price TBD | Out of stock | |
| 6 | ------- | CAP-CAM,MACH,INT [INCLUDED IN CYLINDER HEAD ASM.] | 1 | Price TBD | Out of stock | |
| 7 | ------- | CAP-CAM,MACH,EXH [INCLUDED IN CYLINDER HEAD ASM.] | 1 | Price TBD | Out of stock | |
| 8 | ------- | CAP-CAM,MACH,FRONT [INCLUDED IN CYLINDER HEAD ASM.] | 1 | Price TBD | Out of stock | |
| 9 | 7520689 | SCR-HXFL-M6X1.0X35 10.9 ZY3 | 10 | Price TBD | Out of stock | |
| 10 | 7520688 | SCR-HXFL M6X1.0X70 B18.2.3.4M | 2 | Price TBD | Out of stock | |
| 11 | 5137624 | PIN-DOWEL,M6X10 | 2 | Price TBD | Out of stock | |
| 12 | 7520284 | PLUG-PIPE,M16,DIN | 2 | Price TBD | Out of stock | |
| 13 | 7662355 | DWL-HOL,M8X8 | 4 | Price TBD | Out of stock | |
| 14 | 5138477-440 | TAPPET, VALVE, GRADED, 4.400 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-442 | TAPPET, VALVE, GRADED, 4.425 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-445 | TAPPET, VALVE, GRADED, 4.450 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-448 | TAPPET, VALVE, GRADED, 4.475 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-450 | TAPPET, VALVE, GRADED, 4.500 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-452 | TAPPET, VALVE, GRADED, 4.525 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-455 | TAPPET, VALVE, GRADED, 4.550 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-458 | TAPPET, VALVE, GRADED, 4.575 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-460 | TAPPET, VALVE, GRADED, 4.600 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-462 | TAPPET, VALVE, GRADED, 4.625 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-465 | TAPPET, VALVE, GRADED, 4.650 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-468 | TAPPET, VALVE, GRADED, 4.675 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-470 | TAPPET, VALVE, GRADED, 4.700 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-472 | TAPPET, VALVE, GRADED, 4.725 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-475 | TAPPET, VALVE, GRADED, 4.750 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-478 | TAPPET, VALVE, GRADED, 4.775 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-480 | TAPPET, VALVE, GRADED, 4.800 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-482 | TAPPET, VALVE, GRADED, 4.825 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-485 | TAPPET, VALVE, GRADED, 4.850 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-488 | TAPPET, VALVE, GRADED, 4.875 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-490 | TAPPET, VALVE, GRADED, 4.900 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-492 | TAPPET, VALVE, GRADED, 4.925 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-495 | TAPPET, VALVE, GRADED, 4.950 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-498 | TAPPET, VALVE, GRADED, 4.975 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-500 | TAPPET, VALVE, GRADED, 5.000 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-502 | TAPPET, VALVE, GRADED, 5.025 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-505 | TAPPET, VALVE, GRADED, 5.050 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-508 | TAPPET, VALVE, GRADED, 5.075 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-510 | TAPPET, VALVE, GRADED, 5.100 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-512 | TAPPET, VALVE, GRADED, 5.125 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-515 | TAPPET, VALVE, GRADED, 5.150 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-518 | TAPPET, VALVE, GRADED, 5.175 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-520 | TAPPET, VALVE, GRADED, 5.200 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-522 | TAPPET, VALVE, GRADED, 5.225 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-525 | TAPPET, VALVE, GRADED, 5.250 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-528 | TAPPET, VALVE, GRADED, 5.275 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-530 | TAPPET, VALVE, GRADED, 5.300 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-532 | TAPPET, VALVE, GRADED, 5.325 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-535 | TAPPET, VALVE, GRADED, 5.350 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-538 | TAPPET, VALVE, GRADED, 5.375 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-540 | TAPPET, VALVE, GRADED, 5.400 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-542 | TAPPET, VALVE, GRADED, 5.425 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-545 | TAPPET, VALVE, GRADED, 5.450 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-440 | TAPPET, VALVE, GRADED, 4.400 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-442 | TAPPET, VALVE, GRADED, 4.425 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-445 | TAPPET, VALVE, GRADED, 4.450 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-448 | TAPPET, VALVE, GRADED, 4.475 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-450 | TAPPET, VALVE, GRADED, 4.500 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-452 | TAPPET, VALVE, GRADED, 4.525 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-455 | TAPPET, VALVE, GRADED, 4.550 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-458 | TAPPET, VALVE, GRADED, 4.575 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-460 | TAPPET, VALVE, GRADED, 4.600 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-462 | TAPPET, VALVE, GRADED, 4.625 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-465 | TAPPET, VALVE, GRADED, 4.650 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-468 | TAPPET, VALVE, GRADED, 4.675 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-470 | TAPPET, VALVE, GRADED, 4.700 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-472 | TAPPET, VALVE, GRADED, 4.725 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-475 | TAPPET, VALVE, GRADED, 4.750 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-478 | TAPPET, VALVE, GRADED, 4.775 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-480 | TAPPET, VALVE, GRADED, 4.800 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-482 | TAPPET, VALVE, GRADED, 4.825 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-485 | TAPPET, VALVE, GRADED, 4.850 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-488 | TAPPET, VALVE, GRADED, 4.875 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-490 | TAPPET, VALVE, GRADED, 4.900 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-492 | TAPPET, VALVE, GRADED, 4.925 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-495 | TAPPET, VALVE, GRADED, 4.950 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-498 | TAPPET, VALVE, GRADED, 4.975 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-500 | TAPPET, VALVE, GRADED, 5.000 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-502 | TAPPET, VALVE, GRADED, 5.025 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-505 | TAPPET, VALVE, GRADED, 5.050 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-508 | TAPPET, VALVE, GRADED, 5.075 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-510 | TAPPET, VALVE, GRADED, 5.100 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-512 | TAPPET, VALVE, GRADED, 5.125 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-515 | TAPPET, VALVE, GRADED, 5.150 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-518 | TAPPET, VALVE, GRADED, 5.175 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-520 | TAPPET, VALVE, GRADED, 5.200 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-522 | TAPPET, VALVE, GRADED, 5.225 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-525 | TAPPET, VALVE, GRADED, 5.250 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-528 | TAPPET, VALVE, GRADED, 5.275 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-530 | TAPPET, VALVE, GRADED, 5.300 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-532 | TAPPET, VALVE, GRADED, 5.325 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-535 | TAPPET, VALVE, GRADED, 5.350 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-538 | TAPPET, VALVE, GRADED, 5.375 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-540 | TAPPET, VALVE, GRADED, 5.400 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-542 | TAPPET, VALVE, GRADED, 5.425 | 0 | Price TBD | Out of stock | |
| 14 | 5138477-545 | TAPPET, VALVE, GRADED, 5.450 | 0 | Price TBD | Out of stock | |
| 15 | 7081470 | KEEPER-VALVE | 16 | Price TBD | Out of stock | |
| 16 | 5138435 | RETAINER,VALVE | 8 | Price TBD | Out of stock | |
| 17 | 7045876 | SPRING-VALVE [TO 10/30/2024] | 8 | Price TBD | Out of stock | |
| 17 | 7046204 | SPRING-VALVE [FROM 10/30/2024] | 8 | Price TBD | Out of stock | |
| 17 | 7045876 | SPRING-VALVE [TO 10/30/2024] | 8 | Price TBD | Out of stock | |
| 17 | 7046204 | SPRING-VALVE [FROM 10/30/2024] | 8 | Price TBD | Out of stock | |
| 18 | 3610212 | SEAT-W/SEAL,VALVE SPRING | 8 | Price TBD | Out of stock | |
| 19 | ------- | GUIDE-VALVE,PMF10,36MM | 4 | Price TBD | Out of stock | |
| 20 | ------- | GUIDE-VALVE,EXHAUST | 4 | Price TBD | Out of stock | |
| 21 | 7520978 | SCR-HXFL,M11X1.25X150 10.9 SEM | 6 | Price TBD | Out of stock | |
| 22 | 7519153 | SCR-HXFLG,M6X1.0X90 | 2 | Price TBD | Out of stock | |
| 23 | 7528123 | STUD-M6X1.0X32.5 8.8 | 2 | Price TBD | Out of stock |
