Schematic diagram
Polaris•Schematic assembly

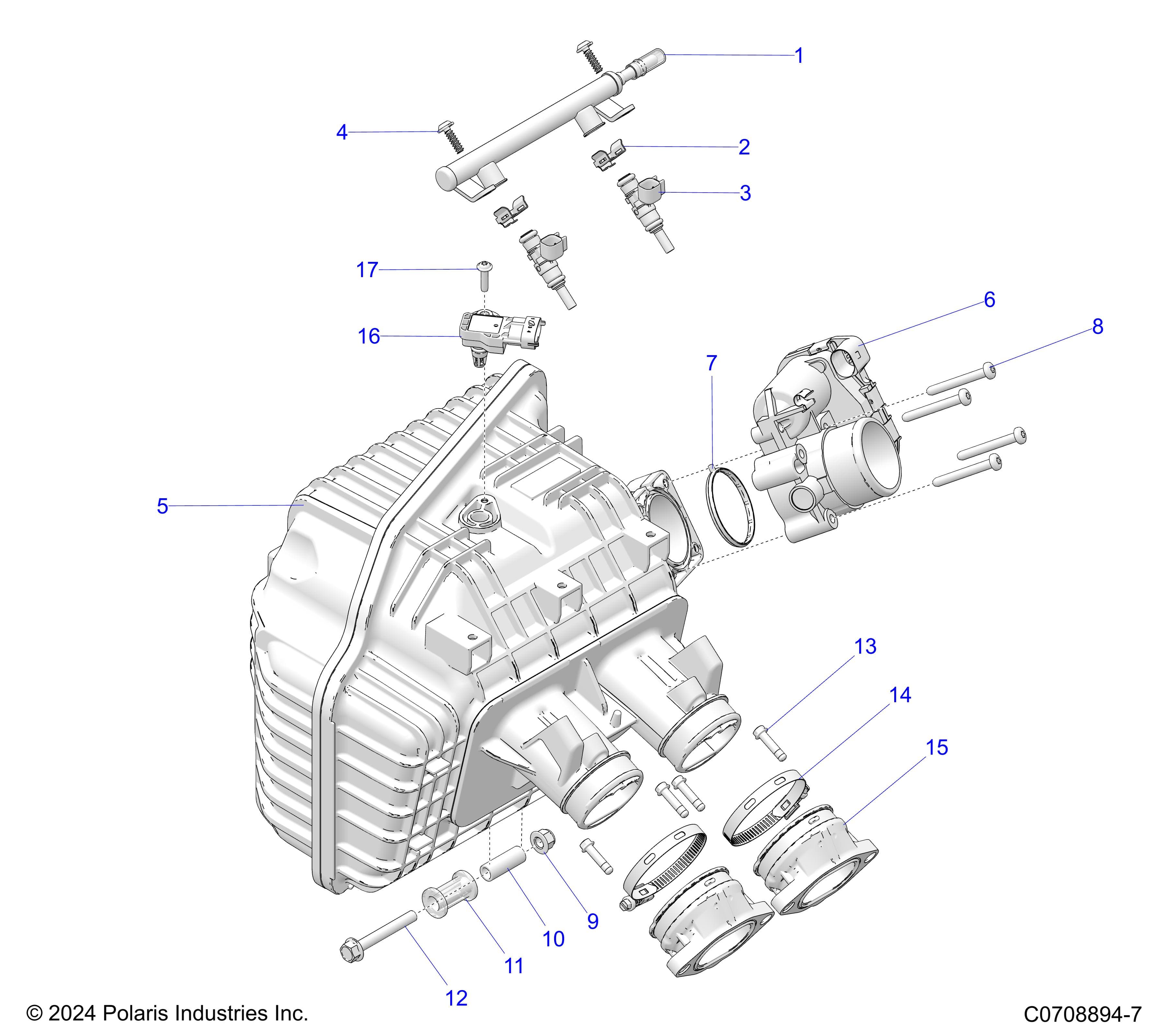

ENGINE, INTAKE MANIFOLD, THROTTLE BODY, FUEL RAIL
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241793
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 20 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2522004 | ASM-RAIL,FUEL,4BAR,NR | 1 | Price TBD | Out of stock | |
| 2 | 3131717 | CLIP, INJECTOR | 2 | Price TBD | Out of stock | |
| 3 | 2521387 | INJ., EV 14 COMP, EXT | 2 | Price TBD | Out of stock | |
| 3 | 1500198 | O-RING-BOSCH,EV-14,UPPER, BLUE | 2 | Price TBD | Out of stock | |
| 3 | 5415066 | O-RING GREEN, LOWER | 2 | Price TBD | Out of stock | |
| 4 | 7520922 | SCR-TXWH-6MMX20MM DELTA PT CLR | 2 | Price TBD | Out of stock | |
| 5 | 3023683 | MANIFOLD-INTAKE,COMPOSITE [INCLUDES 7,10 & 11] | 2 | Price TBD | Out of stock | |
| 5 | 3023684 | MANIFOLD-INTAKE COMPOS,EVAP [EVAP MODELs ONLY] [INCLUDES 7,10 & 11] | 1 | Price TBD | Out of stock | |
| 6 | 1204455 | THROTTLE-ETC,46MM | 2 | Price TBD | Out of stock | |
| 7 | 5814769 | GASKET-THROTTLE BODY | 2 | Price TBD | Out of stock | |
| 8 | 7518377 | SCR-1/4X2 HI/LO-PH-PN TRX-M | 4 | Price TBD | Out of stock | |
| 9 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | Price TBD | Out of stock | |
| 10 | 5138678 | LIMITER-COMPRESSION,AF.0113666 | 1 | Price TBD | Out of stock | |
| 11 | 5813965 | GROMMET-LX.0113665 | 1 | Price TBD | Out of stock | |
| 12 | 7519298 | SCR-HXFL-M8X1.25X60 8.8 ZOD | 1 | Price TBD | Out of stock | |
| 13 | 7519297 | SCREW-HXFLG,M6X1.0X25,10.9 | 4 | Price TBD | Out of stock | |
| 14 | 7083027 | CLAMP-NARROW,SLOTTED 60-75MM | 2 | Price TBD | Out of stock | |
| 15 | 5418145 | INTAKE-BOOT | 2 | Price TBD | Out of stock | |
| 16 | 2411528 | SENSOR-TMAP DSS3-TF | 1 | Price TBD | Out of stock | |
| 17 | 7519952 | SCREW-PLASTITE,5.0MMX20-PN-T25 | 1 | Price TBD | Out of stock |
