Schematic diagram
Polaris•Schematic assembly
BODY, HVAC CONDENSER AND HOSE ROUTINGS
Product Description

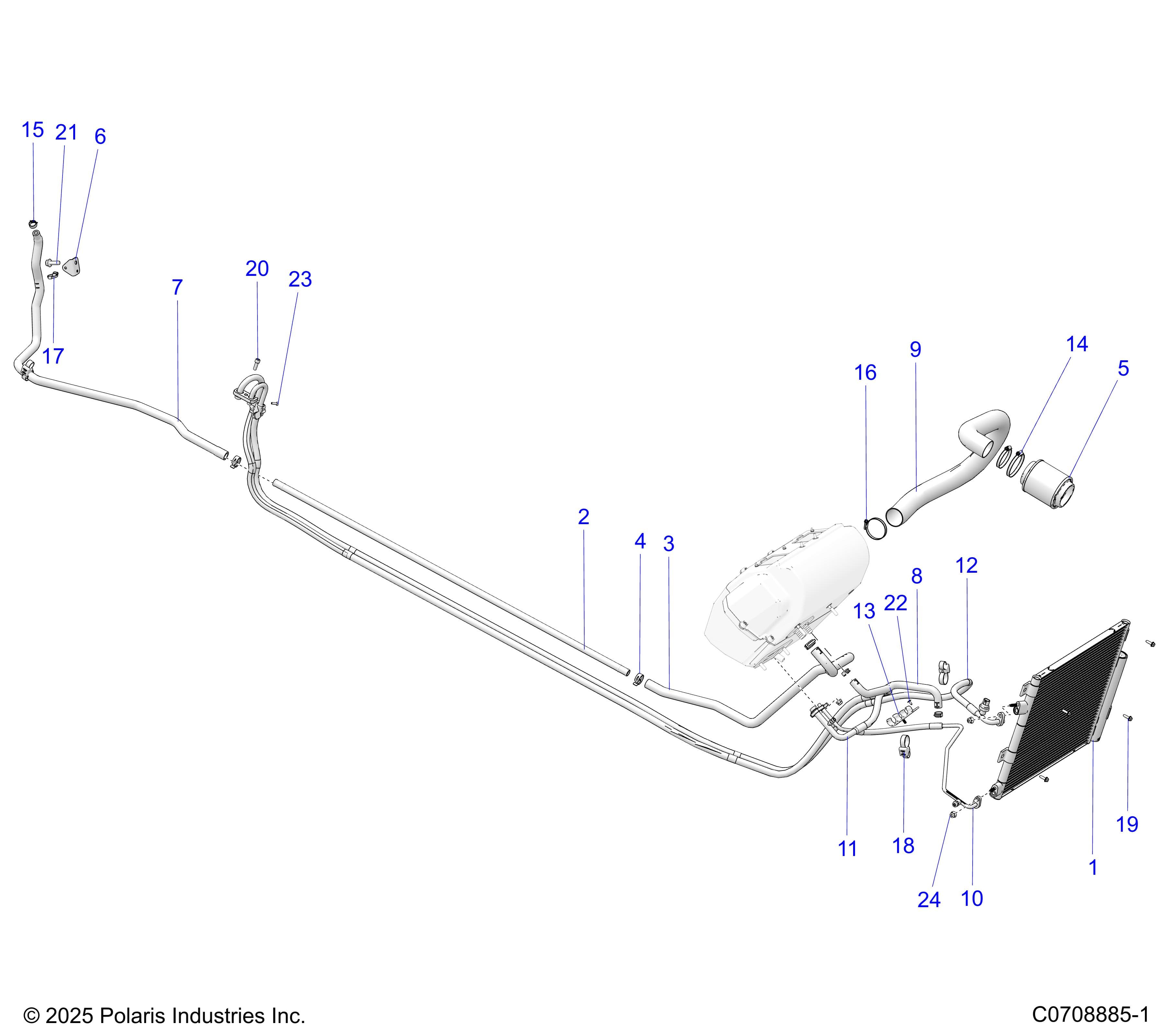

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241847
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1244801 | CONDENSER-HVAC [TO 10/20/2025] | 1 | $999.99 | In stock | |
| 1 | 1244932 | CONDENSER-HVAC [FROM 10/20/2025] | 1 | $924.99 | In stock | |
| 2 | 1241454 | ASM-HOSE,HEATER,CREW [INCLUDES 2-4] | 1 | $154.99 | Out of stock Est. Jul 23, 2026 | |
| 2 | 5342562 | TUBE-HVAC,COOLANT,CREW | 1 | $114.99 | In stock | |
| 3 | 5417311 | HOSE-HEATER FRONT | 1 | $54.99 | In stock | |
| 4 | 7080841 | SPRINGBAND-CLAMP 27/12,GREEN | 3 | Price TBD | Out of stock | |
| 5 | 1262218 | ASM-FILTER,AIR BOX | 1 | Price TBD | Out of stock | |
| 6 | 5272002-329 | BRACKET-HEATER HOSE,ECOAT | 1 | $15.99 | In stock | |
| 7 | 5417312 | HOSE-HEATER REAR | 1 | $119.99 | In stock | |
| 8 | 5417313 | HOSE-HEATER RETURN | 1 | $17.99 | In stock | |
| 9 | 5417314 | HOSE-FRESH AIR | 1 | $17.99 | In stock | |
| 10 | 5419271 | HOSE-ASM,A/C #6 HVAC [INCLUDES CAP] | 1 | $174.99 | In stock | |
| 10 | 5457936 | CAP-HVAC,SERVICE PORT HIGH [CAP ONLY] | 1 | $4.99 | In stock | |
| 11 | 5419272 | HOSE-ASM,A/C #10,HVAC,CREW | 1 | $339.99 | In stock | |
| 12 | 5419281 | HOSE-ASM,A/C #8,CREW | 1 | $334.99 | In stock | |
| 13 | 5458511 | CLIP-ROUTING,HVAC | 1 | $4.99 | In stock | |
| 14 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | Price TBD | Out of stock | |
| 15 | 7081026 | CLAMP-HOSE,SPRING .81 | 3 | Price TBD | Out of stock | |
| 16 | 7080511 | CLAMP-NARROW BAND, 1.38/2.38 | 2 | Price TBD | Out of stock | |
| 17 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 18 | 7081807 | CABLE-TIE,DIA14-45MM,DUAL-LOOP | 3 | Price TBD | Out of stock | |
| 19 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 20 | 7519859 | SCREW-SH-M8X1.25X25 8.8 ZPC | 1 | Price TBD | Out of stock | |
| 21 | 7521333-30 | SCR-HXFL-M10X1.5X30 10.9 ZFB | 1 | $2.99 | In stock | |
| 22 | 7662408 | RIVET-POP 5/32(.188-.250)-LF-B | 1 | Price TBD | Out of stock | |
| 23 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 1 | Price TBD | Out of stock | |
| 24 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 3 | Price TBD | Out of stock |
