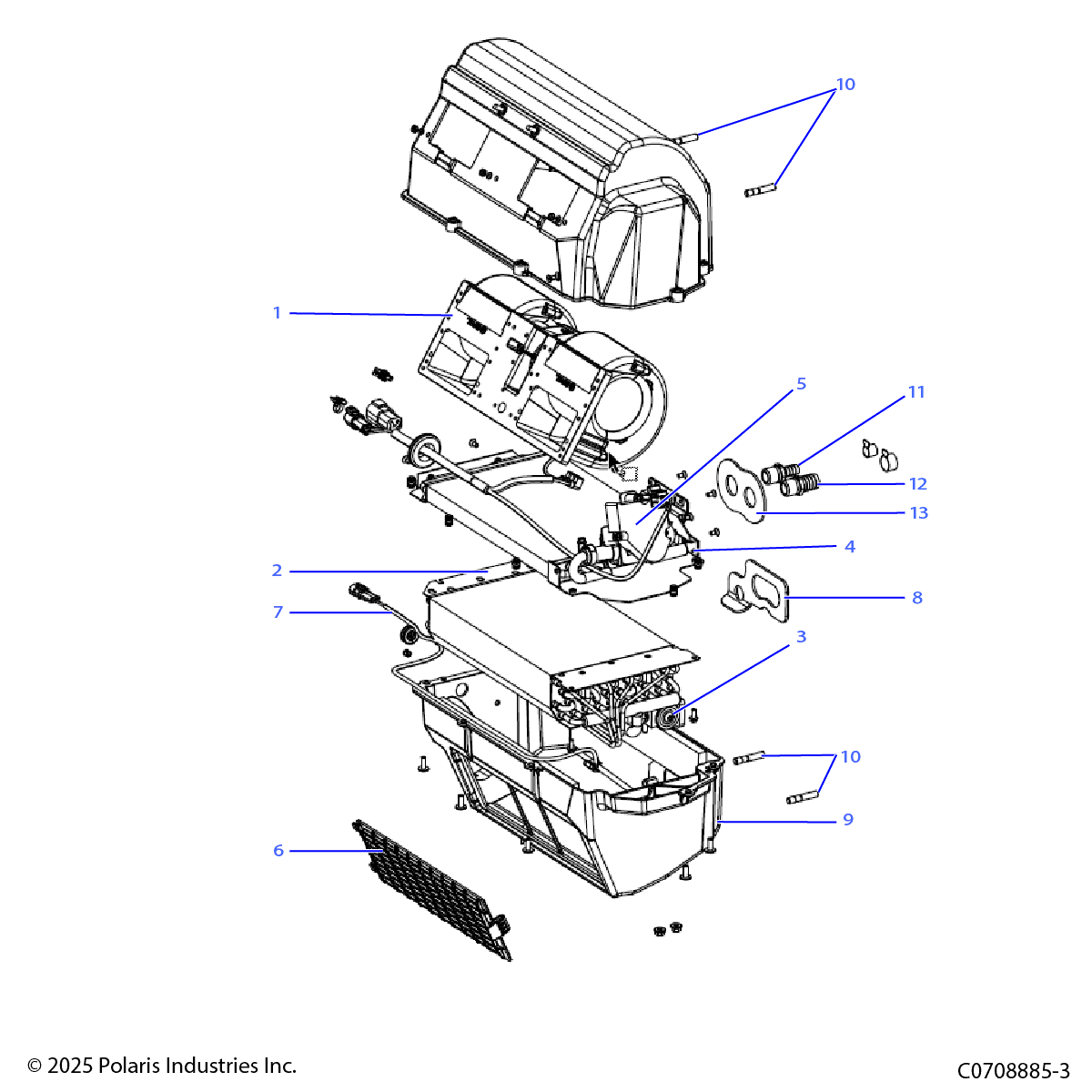

Schematic diagram
Polaris•Schematic assembly
BODY, HVAC, MAIN
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241851
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2640427 | ASM-MAIN,HVAC,MP [INCLUDES ALL] [TO 11/19/2025] | 1 | $2,669.99 | Out of stock Est. Sep 18, 2026 | |
| - | 2640735 | ASM-MAIN,HVAC,MP [INCLUDES ALL] [FROM 11/19/2025 - 2/02/2026] | 1 | Price TBD | Out of stock | |
| - | 2640734 | ASM-MAIN,HVAC [INCLUDES ALL] [FROM 2/02/2026] | 1 | $1,199.99 | Out of stock Est. Aug 11, 2026 | |
| 1 | 3121133 | BLOWER, HEATER & A/C [2640427] | 1 | Price TBD | Out of stock | |
| 1 | 2416441 | BLOWER, HEATER & A/C [2640735] | 1 | Price TBD | Out of stock | |
| 1 | 2418771 | COIL-EVAPORATOR [2640734] | 1 | Price TBD | Out of stock | |
| 2 | 2417554 | COIL-EVAPORATOR [2640427] | 1 | Price TBD | Out of stock | |
| 2 | 2418771 | COIL-EVAPORATOR [2640735] | 1 | Price TBD | Out of stock | |
| 3 | 5145160 | BLOCK,A/C VALV [2640427] | 1 | Price TBD | Out of stock | |
| 3 | 5145868 | BLOCK-A/C VALV [2640735] [2640734] | 1 | Price TBD | Out of stock | |
| 4 | 2418428 | COIL,HEATER | 1 | $529.99 | In stock | |
| 5 | 5144418 | VALVE,WATER | 1 | $169.99 | In stock | |
| 6 | 5453517 | COVER-LOWER,GRILLE,HVAC | 1 | Price TBD | Out of stock | |
| 7 | 2416419 | THERMOSTAT | 1 | $99.99 | In stock | |
| 8 | 5814640 | FOAM-HVAC,AC | 1 | $5.99 | In stock | |
| 9 | 5465783 | HOUSING-LOWER,HVAC | 1 | Price TBD | Out of stock | |
| 10 | 7520519 | M8X1.25X45/55MM CL8.8 STUD | 4 | Price TBD | Out of stock | |
| 11 | 7055702 | FTG-MALE, HTR, 1/2NPT-1/2HB, ALUM | 1 | Price TBD | Out of stock | |
| 12 | 7055703 | FTG-MALE, HTR, 1/2NPT-3/4HB, ALUM | 1 | Price TBD | Out of stock | |
| 13 | 5814636 | FOAM-HVAC,COOLANT | 1 | Price TBD | Out of stock |
