Schematic diagram
Polaris•Schematic assembly

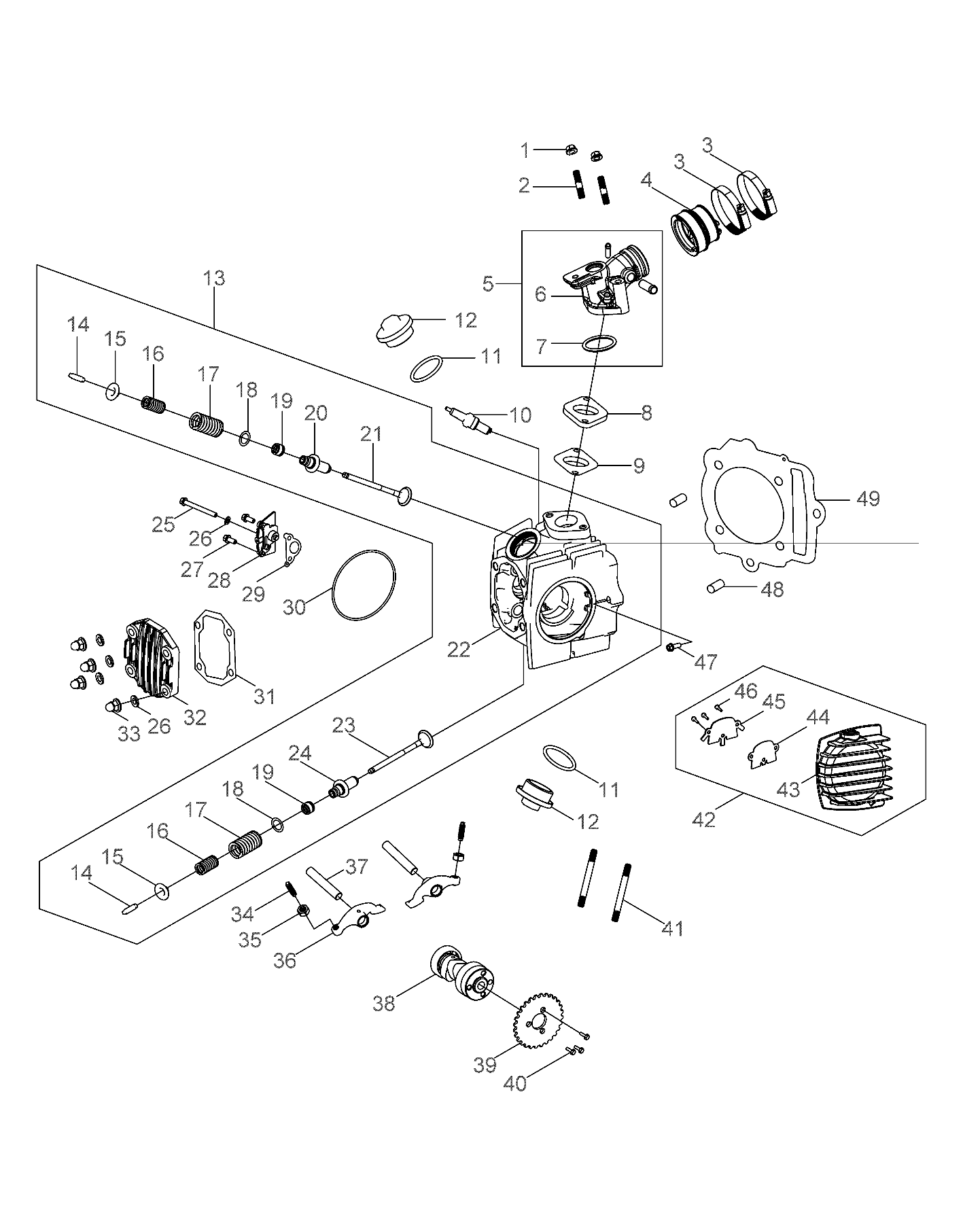

ENGINE, CYLINDER HEAD - A26YAF11B5 (A00037)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 110 R01 - A26YFA11B5 Assembly ID: 242517
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 110 R01 - A26YFA11B5
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 0455106 | ASM., ENGINE | 1 | Price TBD | Out of stock | |
| 1 | 0450880 | NUT, FLANGE, HEX | 2 | $4.99 | Out of stock Est. Jul 16, 2026 | |
| 2 | 0454524 | BOLT, STUD | 2 | $8.99 | In stock | |
| 3 | 0454512 | CLAMP, HOSE | 2 | $8.99 | In stock | |
| 4 | 0455100 | Adapter, Carburetor | 1 | $34.99 | In stock | |
| 5 | 0455101 | Asm., Manifold, Intake [INCL. 6,7] | 1 | $74.99 | In stock | |
| 6 | ------- | Manifold | 1 | Price TBD | Out of stock | |
| 7 | 0453563 | O-RING | 1 | $1.99 | In stock | |
| 8 | 0453449 | Insulator, Manifold | 1 | $15.99 | In stock | |
| 9 | 0453451 | Gasket, Manifold | 1 | Price TBD | Out of stock | |
| 10 | 0453034 | Plug, Spark | 1 | $4.99 | In stock | |
| 11 | 0452371 | O-RING, DRAIN PLUG | 2 | $1.99 | In stock | |
| 12 | 0453537 | Cover, Cylinder | 2 | $44.99 | In stock | |
| 13 | 0455102 | ASM., HEAD, CYLINDER [INCL. 14-24] | 1 | $399.99 | In stock | |
| 14 | 0452389 | CLIP, RETAINER | 4 | $8.99 | In stock | |
| 15 | 0453443 | Retainer, Valve, Spring | 2 | $29.99 | In stock | |
| 16 | 0453442 | Spring, Valve, Inner | 2 | $11.99 | In stock | |
| 17 | 0453441 | SPRING, VALVE, OUTER | 2 | $11.99 | In stock | |
| 18 | 0453444 | Seat, Valve, Spring, Outer | 2 | $8.99 | In stock | |
| 19 | 0453426 | SEAL, VALVE | 2 | $16.99 | In stock | |
| 20 | 0453575 | Guide, Valve Intake | 1 | $357.29 | NLA | |
| 21 | 0453439 | Valve, Intake | 1 | $64.99 | In stock | |
| 22 | ------- | Head, Cylinder | 1 | Price TBD | Out of stock | |
| 23 | 0453440 | VALVE, EXHAUST | 1 | $69.99 | In stock | |
| 24 | 0453576 | GUIDE, VALVE, EXHAUST | 1 | $17.99 | In stock | |
| 25 | 0453723 | BOLT | 1 | $6.99 | In stock | |
| 26 | 0453510 | Washer | 5 | $4.99 | In stock | |
| 27 | 0453519 | Bolt | 2 | $4.99 | In stock | |
| 28 | 0455103 | COVER, CYLINDER HEAD, RH | 1 | $44.99 | In stock | |
| 29 | 0455479 | GASKET-COVER,CYL HEAD,RH | 1 | $5.99 | In stock | |
| 30 | 0455480 | GASKET-COVER,CYL HEAD,LH | 1 | $5.99 | In stock | |
| 31 | 0455478 | GASKET-COVER,CYLINDER HEAD | 1 | $9.99 | In stock | |
| 32 | 0453534 | COVER, CYLINDER HEAD | 1 | $49.99 | In stock | |
| 33 | 0453553 | Nut | 4 | $5.99 | In stock | |
| 34 | 0452423 | SCREW, TAPPET, ADJUST | 2 | $12.99 | In stock | |
| 35 | 0452424 | NUT, TAPPET, ADJUST | 2 | $4.99 | In stock | |
| 36 | 0453434 | ARM, VALVE, RACKER | 2 | $124.99 | In stock | |
| 37 | 0453435 | SHAFT, INTAKE, ROCKER ARM | 2 | $17.99 | In stock | |
| 38 | 0455104 | ASM., CAM SHAFT | 1 | $194.99 | In stock | |
| 39 | 0453583 | Sprocket, Cam Shaft | 1 | $39.99 | In stock | |
| 40 | 0453584 | BOLT | 3 | $5.99 | In stock | |
| 41 | 0453504 | STUD | 2 | $5.99 | In stock | |
| 42 | 0455402 | ASM-COVER,CYLINDER HEAD,SM,LH [INCL. 43-46] | 1 | $74.99 | In stock | |
| 43 | 0453579 | Cover, Cylinder Head, Small, LH | 1 | $54.99 | In stock | |
| 44 | 0455481 | GASKET-CYLINDER,DIVIDE PLATE | 1 | $16.99 | In stock | |
| 45 | 0453581 | BREATHER, CRANKCASE, LOWER | 1 | $5.99 | In stock | |
| 46 | 0451766 | SCREW, TAPPING | 3 | $3.99 | In stock | |
| 47 | 0453520 | Bolt | 1 | $4.99 | In stock | |
| 48 | 0452342 | PIN, DOWEL | 2 | $4.99 | In stock | |
| 49 | 0455380 | Gasket-Cylinder Head | 1 | $39.99 | In stock |
