Polaris•Schematic assembly

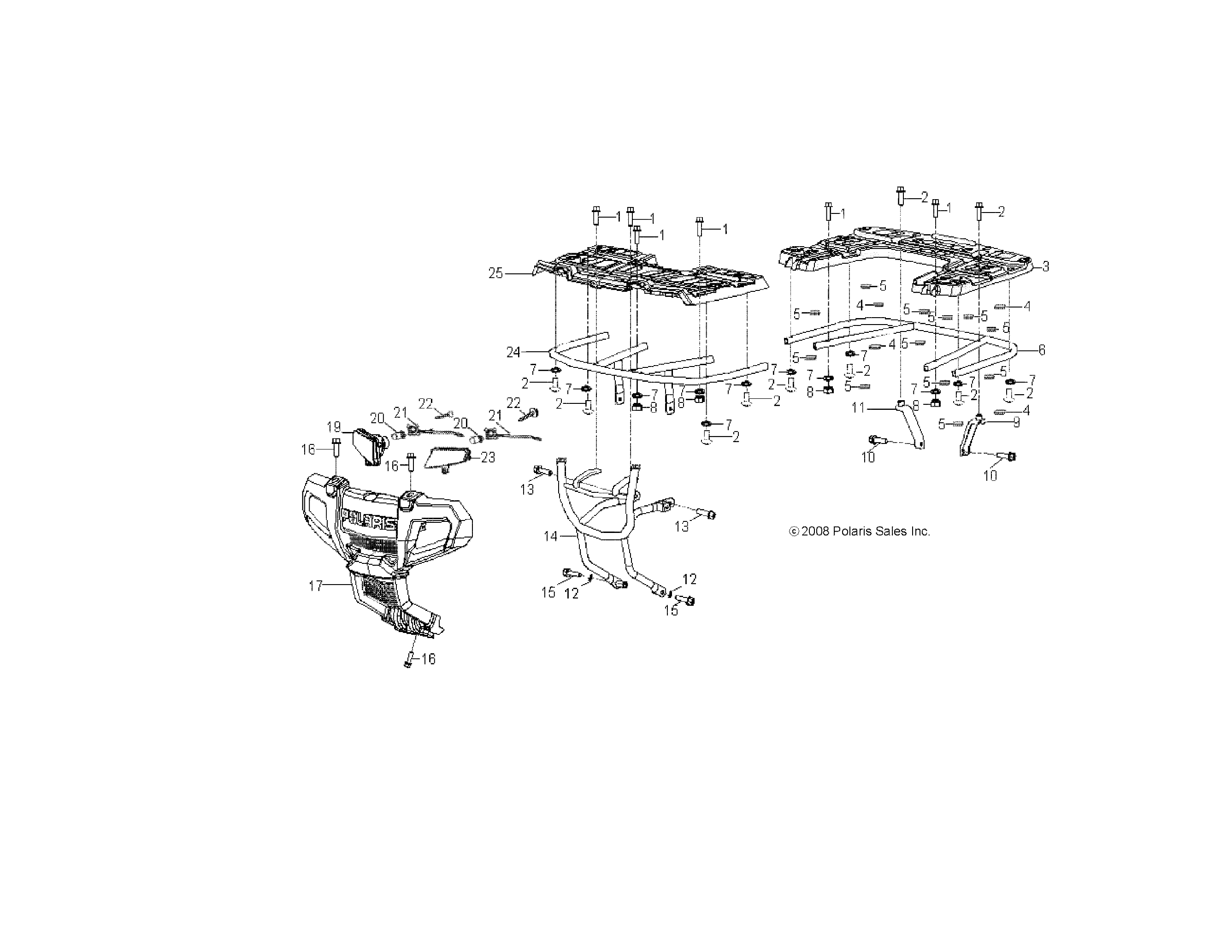

CHASSIS, BUMPER - A26YFA11B5 (49ATVBUMPER09SP90)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 110 R01 - A26YFA11B5 Assembly ID: 242529
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 110 R01 - A26YFA11B5
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 0450310 | Bolt | 14 | $6.99 | In stock | |
| 2 | 0453726 | BOLT | 2 | $5.99 | In stock | |
| 3 | 0453335-070 | RACK, REAR, BLACK | 1 | $144.99 | In stock | |
| 4 | 0453825 | PAD, RACK, RUBBER | 2 | $2.99 | In stock | |
| 5 | 0453824 | Pad, Rack, Rubber | 10 | $2.99 | In stock | |
| 6 | 0453727 | SUPPORT, RACK, REAR, BLACK | 1 | $134.99 | In stock | |
| 7 | 0452913 | Washer, Plain | 12 | $4.99 | In stock | |
| 8 | 0450808 | NUT, LOCK | 12 | $2.99 | In stock | |
| 9 | 0453728 | BRACKET, SUPPORT, RACK, REAR, LH, BLACK | 1 | $44.99 | In stock | |
| 10 | 0450887 | Bolt, Hex, Washer Face | 4 | $4.99 | In stock | |
| 11 | 0453729 | BRACKET, SUPPORT, RACK, REAR, RH, BLACK | 1 | $44.99 | In stock | |
| 12 | 0451702 | WASHER, SPRING | 2 | $4.99 | In stock | |
| 13 | 0453518 | BOLT | 2 | $4.99 | In stock | |
| 14 | 0453731-067 | BUMPER, FRONT, BLACK | 1 | $209.99 | In stock | |
| 15 | 0453730 | BOLT | 2 | $8.99 | In stock | |
| 16 | 0452215 | BOLT, HEX | 3 | $4.99 | In stock | |
| 17 | 0453352-070 | FASCIA, FRONT, BLACK | 1 | $134.99 | In stock | |
| 19 | 0453970 | HEADLIGHT, RH | 1 | $89.99 | In stock | |
| 20 | 0455464 | BULB-HEADLIGHT | 2 | $34.99 | In stock | |
| 21 | 0453569 | SOCKET, HEADLIGHT | 2 | $44.99 | In stock | |
| 22 | 0451703 | Screw, Tapping w/Washer | 2 | $4.99 | In stock | |
| 23 | 0453969 | HEADLIGHT, LH | 1 | $89.99 | In stock | |
| 24 | 0453732 | SUPPORT, RACK, FRONT, BLACK | 1 | $199.99 | In stock | |
| 25 | 0453334-070 | RACK, FRONT, BLACK | 1 | $144.99 | In stock |
