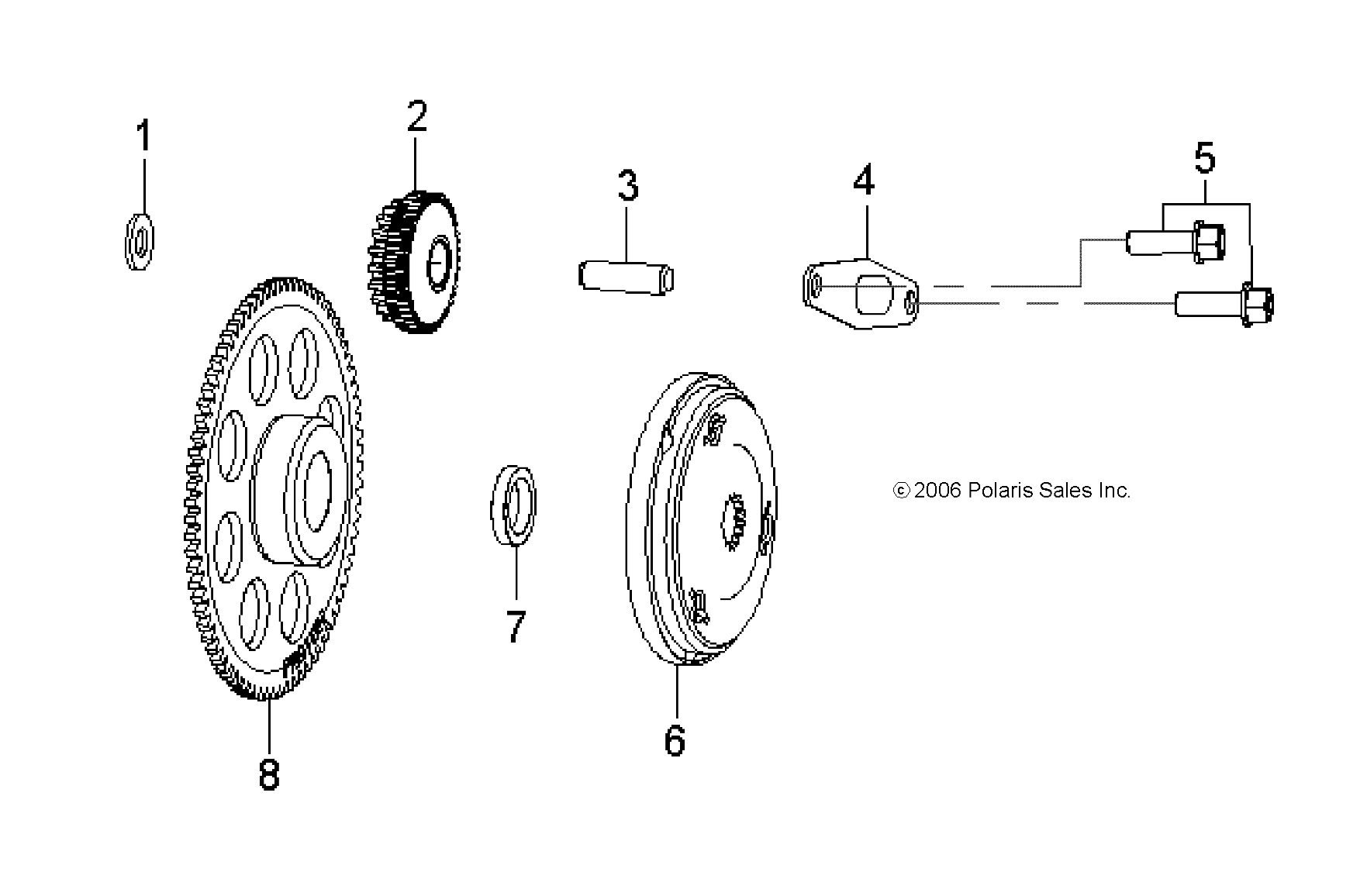

Polaris•Schematic assembly
ENGINE, STARTER - A25YFA11B5 (49ATVSTARTER207OTLW90)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 110 R01 - A26YFA11B5 Assembly ID: 242547
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 110 R01 - A26YFA11B5
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 0450192 | Washer | 1 | $3.99 | In stock | |
| 2 | 0455258 | ASM-IDLE GEAR 23422-117-001 | 1 | Price TBD | Out of stock | |
| 3 | 0453558 | SHAFT, PIN, STARTER MOTOR | 1 | $10.99 | In stock | |
| 4 | 0453467 | PLATE, IDLER GEAR | 1 | $16.99 | In stock | |
| 5 | 0452330 | BOLT | 2 | $4.99 | In stock | |
| 6 | 0454961 | ASM., STARTER, KICK | 1 | $114.99 | In stock | |
| 7 | 0453588 | WASHER | 1 | $5.99 | In stock | |
| 8 | 0453466 | GEAR, STARTER | 1 | $119.99 | In stock |
