Polaris•Schematic assembly

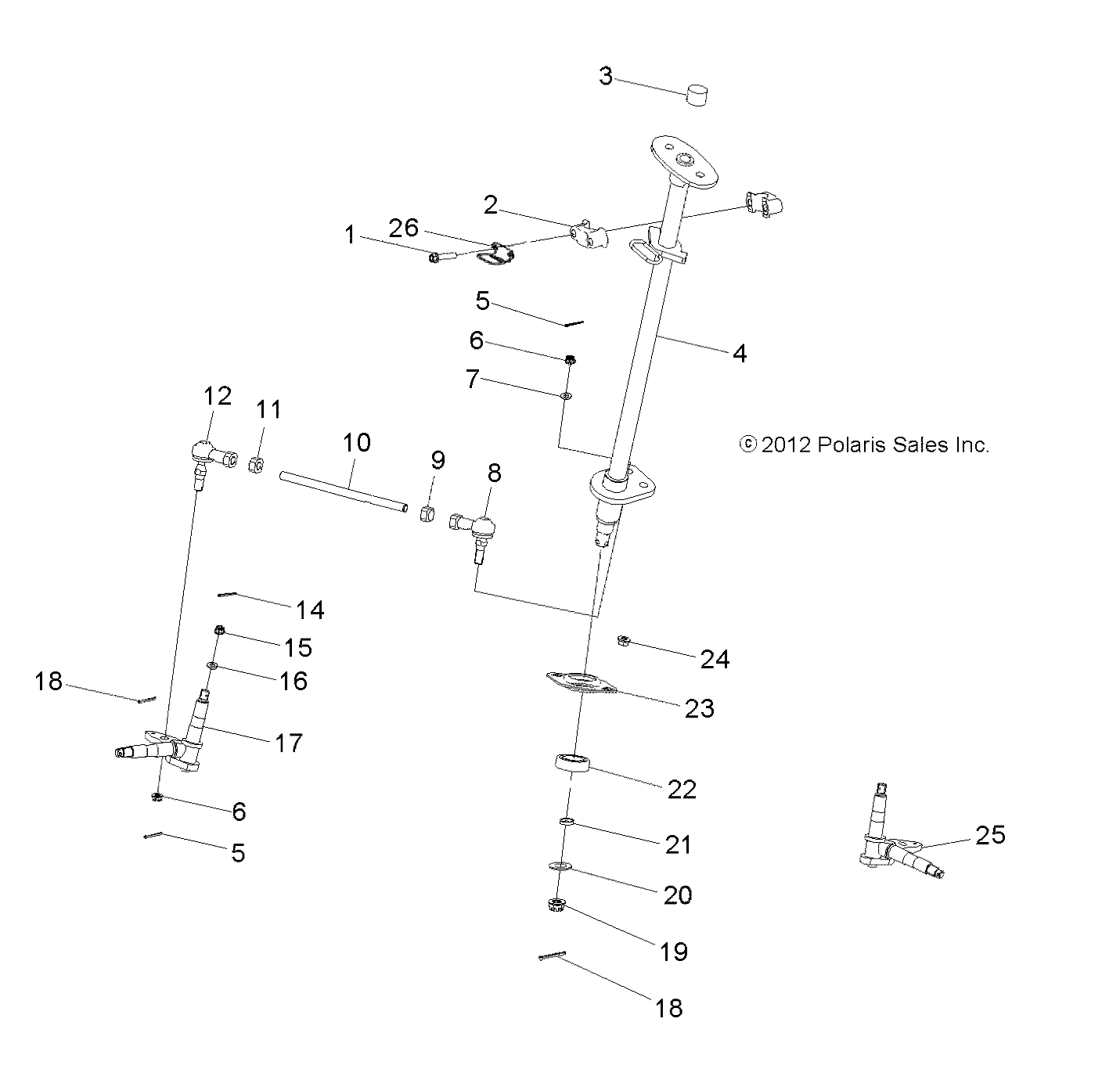

STEERING, STEERING POST and TIE ROD ASM. - A26YFA11B5 (49ATVSTEERING13OUT90)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 110 R01 - A26YFA11B5 Assembly ID: 242551
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 110 R01 - A26YFA11B5
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 0453730 | BOLT | 2 | $8.99 | In stock | |
| 2 | 0450505 | Bracket, Upper, Steering Shaft | 2 | $24.99 | In stock | |
| 3 | 0450499 | Sleeve, Steering Shaft | 1 | $13.99 | In stock | |
| 4 | 0454889-067 | POST, STEERING, BLACK | 1 | $129.99 | In stock | |
| 5 | 0453819 | PIN, COTTER | 9 | $3.99 | In stock | |
| 6 | 0453820 | NUT, LOCK | 4 | $11.99 | In stock | |
| 7 | 0453809 | WASHER, SPRING | 2 | $5.99 | Out of stock Est. Nov 9, 2026 | |
| 8 | 0454629 | INNER ROD END (MALE) | 2 | $94.99 | In stock | |
| 9 | 0454749 | NUT, TIE ROD, LH | 2 | $5.99 | In stock | |
| 10 | 0454751 | TIE ROD (FOR MALE TIE ROD ENDS) | 2 | $59.99 | In stock | |
| 11 | 0454750 | NUT, TIE ROD, RH | 2 | $5.99 | In stock | |
| 12 | 0454630 | OUTER ROD END (MALE) | 2 | $94.99 | In stock | |
| 14 | 0450719 | PIN, COTTER | 2 | Price TBD | Out of stock | |
| 15 | 0450502 | NUT, CASTLE | 2 | $11.99 | In stock | |
| 16 | 0453513 | WASHER | 2 | $5.99 | In stock | |
| 17 | 0453555 | KNUCKLE, RH | 1 | $144.99 | In stock | |
| 18 | 0450395 | PIN, COTTER | 3 | $3.99 | In stock | |
| 19 | 0453502 | NUT | 1 | $11.99 | In stock | |
| 20 | 0455000 | WASHER | 1 | $4.99 | In stock | |
| 21 | 0452719 | SPACER, RING | 1 | $10.99 | In stock | |
| 22 | 0453978 | BEARING, BALL | 1 | $49.99 | In stock | |
| 23 | 0453494 | FLANGETTE | 1 | $24.99 | In stock | |
| 24 | 0453866 | NUT | 2 | $1.99 | In stock | |
| 25 | 0453554 | KNUCKLE, LH | 1 | $144.99 | In stock | |
| 26 | 0455248 | BRACKET, WIRE COLLECTOR | 1 | $34.99 | In stock |
