Schematic diagram
Polaris•Schematic assembly

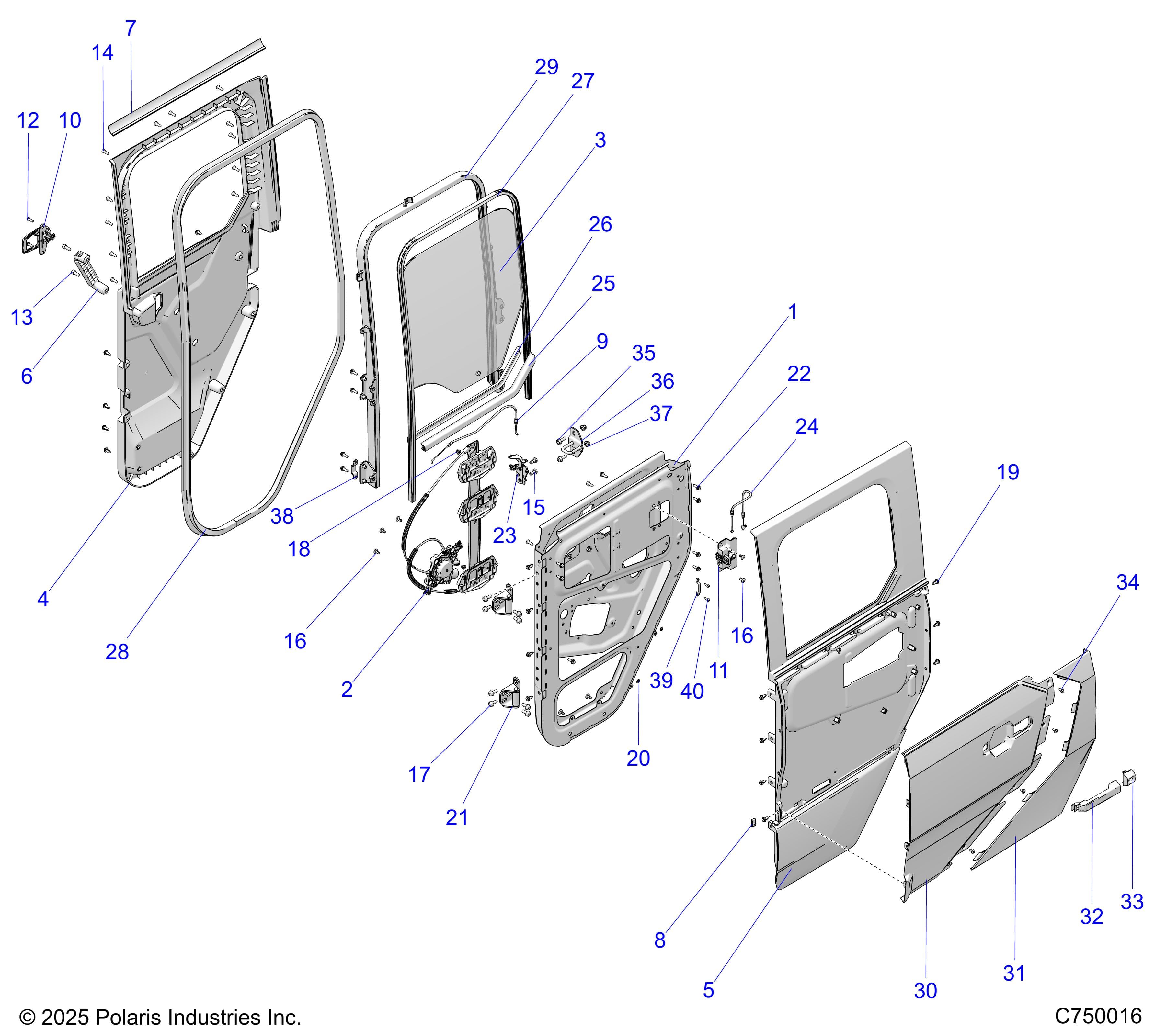

BODY, DOOR ASSEMBLY, REAR
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION XP5 NORTHSTAR Assembly ID: 242602
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION XP5 NORTHSTAR
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2637919 | ASM-DOOR,POWER,CREW REAR,LH [INCLUDES 1-29] | 1 | $2,099.99 | Out of stock Est. Aug 5, 2026 | |
| - | 2637920 | ASM-DOOR,POWER,CREW REAR,RH [INCLUDES 1-29] | 1 | $2,099.99 | Out of stock Est. Aug 7, 2026 | |
| 1 | 1027142-458 | WELD-FR,HALF,REAR,LH,BLK [INCLUDES 39 & 40] | 1 | $549.99 | In stock | |
| 1 | 1027143-458 | WELD-FR,HALF,REAR,RH,BLK [INCLUDES 39 & 40] | 1 | $549.99 | In stock | |
| 2 | 2637927 | ASM-REGULTR,POWER WNDW,CREW,LH | 1 | $334.99 | In stock | |
| 2 | 2637928 | ASM-REGULTR,POWER WNDW,CREW,RH | 1 | $334.99 | In stock | |
| 3 | 2638231 | GLASS-WINDOW,DOOR,REAR,LH | 1 | $119.99 | In stock | |
| 3 | 2638232 | GLASS-WINDOW,DOOR,REAR,RH | 1 | $119.99 | In stock | |
| 4 | 5456869-070 | PNL-DOOR,INTL,REAR,LH POWER,BL | 1 | $429.99 | In stock | |
| 4 | 5456870-070 | PNL-DOOR,INT,REAR,RH,POWER,BLK | 1 | $429.99 | In stock | |
| 5 | 5465168-070 | PNL-DOOR,EXT,REAR BASE,LH,BLK | 1 | $469.99 | In stock | |
| 5 | 5465169-070 | PNL-DOOR,EXT,REAR BASE,RH,BLK | 1 | $469.99 | In stock | |
| 6 | 5465274-070 | HANDLE-GRAB,DOOR,BLK | 1 | $17.99 | In stock | |
| 7 | 5526544-675 | SEAL-EXTRSN,14.00X12.70,675MM | 1 | $49.99 | In stock | |
| 8 | 7081305 | CLIP-U SPEED NUT | 2 | Price TBD | Out of stock | |
| 9 | 7082691 | CABLE-DOOR,INTERNAL,REAR | 1 | $17.99 | In stock | |
| 10 | 7082692 | ASM-HANDLE,DOOR INNER | 1 | $54.99 | In stock | |
| 11 | 7083143 | ASM-ACTUATOR,EXT,LH | 1 | $94.99 | In stock | |
| 11 | 7083144 | ASM-ACTUATOR,EXT,RH | 1 | $94.99 | In stock | |
| 12 | 7518616 | BOLT-M6X1.0X20,PH/TX-OLIVE D | 2 | Price TBD | Out of stock | |
| 13 | 7527948-20 | SCR-TXBH-M8X1.25X20 10.9 ZTB | 2 | $2.99 | In stock | |
| 14 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 14 | Price TBD | Out of stock | |
| 15 | 7519997 | SCR-TXTH-M8X1.25X20 8.8 ZB3 P3 | 2 | Price TBD | Out of stock | |
| 16 | 7520147 | SCR-TXTH-M6X1.0X15 8.8 P80 ZOD | 7 | $4.99 | In stock | |
| 17 | 7528211 | SCR-HXFL-M8X1.25X20 10.9ZFB P | 4 | $1.99 | In stock | |
| 18 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 19 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 12 | Price TBD | Out of stock | |
| 20 | 7670154 | RETAINER-BOLT,1/4-20 | 2 | $2.99 | In stock | |
| 21 | 2638402 | ASM-HINGE,REAR | 2 | $29.99 | In stock | |
| 22 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 14 | Price TBD | Out of stock | |
| 23 | 7082930 | ASM-LATCH,LH | 1 | $64.99 | In stock | |
| 23 | 7082931 | ASM-LATCH,RH | 1 | $64.99 | In stock | |
| 24 | 7082663 | CABLE-DOOR,EXTERNAL | 1 | $17.99 | In stock | |
| 25 | 5522391 | SEAL-BELTLINE,REAR,A | 1 | $34.99 | In stock | |
| 26 | 5522392 | SEAL-BELTLINE,REAR,B | 1 | $34.99 | In stock | |
| 27 | 5526361 | SEAL-WINDOW,RUN CHANNEL,REAR | 1 | $69.99 | In stock | |
| 28 | 5526488 | SEAL-BULB,REAR,FULL DOOR | 1 | $109.99 | In stock | |
| 29 | 1026478 | WELD-FRAME,WINDOW,REAR,LH | 1 | $209.99 | NLA | |
| 29 | 1026479 | WELD-FRAME,WINDOW,REAR,RH | 1 | $199.99 | NLA | |
| 30 | 5465123-894 | PNL-DR,EXT,RR T,PNT,LH,M.S.GR [AJ] [BJ] [SUPER GRAPHITE] | 1 | $409.99 | In stock | |
| 30 | 5465123-799 | PNL-DR,EXT,RR T,PNT,LH,PER.RED [AS] [BS] [PERFORMANCE RED] | 1 | $409.99 | In stock | |
| 30 | 5465123-A29 | PNL-DR,EXT,RR T,PNT,LH,H.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $409.99 | In stock | |
| 30 | 5465124-894 | PNL-DR,EXT,RR T,PNT,RH,M.S.GR [AJ] [BJ] [SUPER GRAPHITE] | 1 | $409.99 | In stock | |
| 30 | 5465124-799 | PNL-DR,EXT,RR T,PNT,RH,PER.RED [AS] [BS] [PERFORMANCE RED] | 1 | $409.99 | In stock | |
| 30 | 5465124-A29 | PNL-DR,EXT,RR T,PNT,RH,H.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $409.99 | In stock | |
| 31 | 5458475-070 | PNL-DOOR,REAR,EXT,FILLR,LH,BLK | 1 | $69.99 | In stock | |
| 31 | 5458476-070 | PNL-DOOR,REAR,EXT,FILLR,RH,BLK | 1 | $69.99 | In stock | |
| 32 | 5459569 | HANDLE-ACTUATOR,EXT | 1 | $44.99 | In stock | |
| 32 | 7528227 | SCR-HANDLE,DOOR | 1 | $2.99 | In stock | |
| 33 | 5457811 | HANDLE-ACTUATOR,EXT,PLUG | 1 | $13.99 | In stock | |
| 34 | 7521141 | SCR-TXPH-1/4X1/2 ZBK SPC | 4 | Price TBD | Out of stock | |
| 35 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 36 | 2638472 | ASM-STRIKER | 1 | $34.99 | In stock | |
| 37 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 38 | 5271393 | BRKT-STRAP,LIMIT | 2 | $6.99 | In stock | |
| 39 | 5345470 | WIREFORM-HINGE,DOOR | 1 | $5.99 | In stock | |
| 40 | 7661637 | RIVET-3/16-.090-.290 | 2 | Price TBD | Out of stock |
