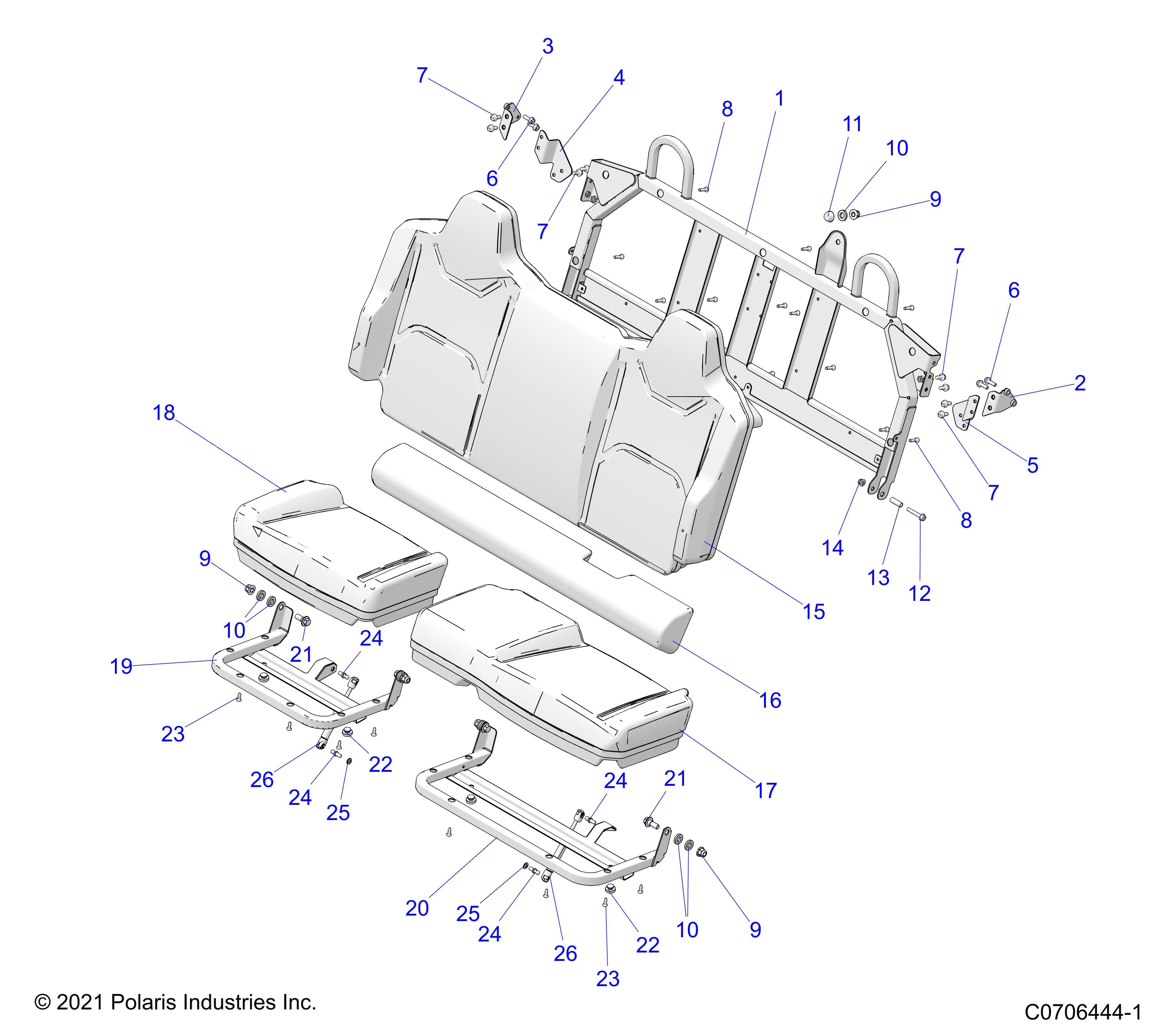

Schematic diagram
Polaris•Schematic assembly
BODY, SEAT ASM., REAR
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION XP5 NORTHSTAR Assembly ID: 242611
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION XP5 NORTHSTAR
Checkout Note
Please note that 17 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1027883-458 | WELD-SEAT,MIDGATE,BLK | 1 | $449.99 | In stock | |
| 2 | 1028818-458 | WELD-MOUNT,MIDGATE,LH,BLK | 1 | $64.99 | In stock | |
| 3 | 1028819-458 | WELD-MOUNT,MIDGATE,RH,BLK | 1 | $64.99 | In stock | |
| 4 | 5274565-458 | BRKT-SEAT,MIDGATE,RH,BLK | 1 | $39.99 | In stock | |
| 5 | 5274564-458 | BRKT-SEAT,MIDGATE,LH,BLK | 1 | $39.99 | In stock | |
| 6 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 7 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 8 | Price TBD | Out of stock | |
| 8 | 7518158 | SCR-#14X1 HI/LO-PH-PN TRX-M | 16 | Price TBD | Out of stock | |
| 9 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 10 | 5813829 | WASHER-SEATBELT,RUBBER | 1 | Price TBD | Out of stock | |
| 11 | 5455285 | CAP-BOLT HEAD | 1 | Price TBD | Out of stock | |
| 12 | 7521332-50 | SCR-HXFL-M8X1.25X50 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 13 | 5144355-329 | SPACER-SEAT PIVOT,ECOAT | 2 | $10.99 | In stock | |
| 14 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 15 | 2693657 | COVER-SEAT,REAR,FULL,BACK,IRED [COVER ONLY] [AS] [BS] | 1 | $209.99 | Out of stock Est. Aug 6, 2026 | |
| 15 | 2693427 | COVER-SEAT,REAR,FULL,BACK,TTM [COVER ONLY] [AJ] [BJ] [AH] [BH] | 1 | $209.99 | In stock | |
| 16 | 2692247 | COVER-SEAT CENTER ROLL,BLK | 1 | Price TBD | Out of stock | |
| 16 | 5815191 | BUN-SEAT,CENTER ROLL | 1 | $219.99 | In stock | |
| 17 | 2693659 | COVER-SEAT,REAR,60,BTM,I-RED,G [COVER ONLY] [AS] [BS] | 1 | Price TBD | Out of stock Est. Dec 11, 2026 | |
| 17 | 2693428 | COVER-SEAT,REAR,60,BTM,TTM,GST [COVER ONLY] [AJ] [BJ] [AH] [BH] | 1 | $159.99 | In stock | |
| 18 | 2693661 | COVER-SEAT,REAR,40,BTM,I-RED,G [COVER ONLY] [AS] [BS] | 1 | Price TBD | Out of stock | |
| 18 | 2693429 | COVER-SEAT,REAR,40,BTM,TTM,GST [COVER ONLY] [AJ] [BJ] [AH] [BH] | 1 | $124.99 | In stock | |
| 19 | 1025590-329 | WELD-SEAT BASE,REAR,40,ECOAT | 1 | $144.99 | In stock | |
| 20 | 1025589-329 | WELD-SEAT BASE,REAR,60,ECOAT | 1 | $169.99 | In stock | |
| 21 | 7519770 | SCR-HXFLSH-M12X1.75-M14X9 ZOD | 4 | Price TBD | Out of stock | |
| 22 | 5412067 | BUMPER-RUBBER | 4 | Price TBD | Out of stock | |
| 23 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 12 | Price TBD | Out of stock | |
| 24 | 7083089 | BALL-END | 4 | Price TBD | Out of stock | |
| 25 | 7557234 | WSHR-FLAT-M8X1.6 ZTB | 2 | Price TBD | Out of stock | |
| 26 | 7046187 | SHOCK-GAS,230.20MM | 2 | $54.99 | In stock |
