Schematic diagram

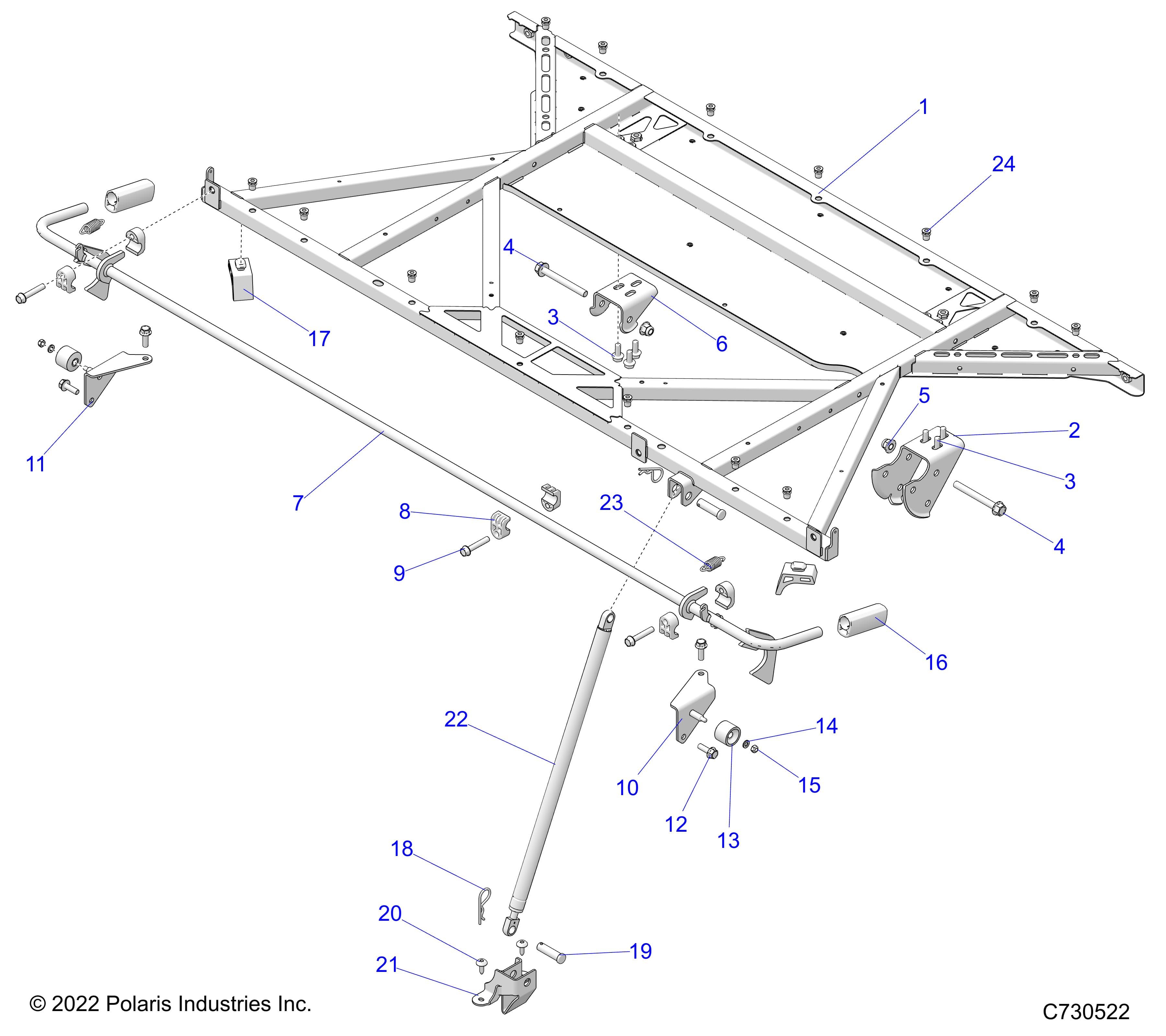

Polaris•Schematic assembly
BODY, BOX, MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION XP NORTHSTAR Assembly ID: 242753
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION XP NORTHSTAR
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1028452-458 | WELD-BOX,CARGO,TIP,BLK | 1 | $429.99 | Out of stock | |
| 2 | 5273964-458 | BRKT-HINGE,CHASSIS,TILTBOX,BLK | 1 | $39.99 | In stock | |
| 3 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 6 | Price TBD | Out of stock | |
| 4 | 7521333-90 | SCR-HXFL-M10X1.5X90 10.9 ZPB | 2 | Price TBD | Out of stock | |
| 5 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 6 | 5271896-458 | BRKT-HINGE,CHASSIS,BLK | 1 | $15.99 | In stock | |
| 7 | 1027724-458 | WELD-BOX LATCH,BLK | 1 | $144.99 | In stock | |
| 8 | 5434226 | BUSHING-BOX,LATCH | 6 | Price TBD | Out of stock | |
| 9 | 7516732 | SCR-SH-M8X1.25X30 8.8 ZPC | 3 | Price TBD | Out of stock | |
| 10 | 1027193-458 | WELD-ROLLER,STRIKER,LH,BLK | 1 | $39.99 | In stock | |
| 11 | 1027194-458 | WELD-ROLLER,STRIKER,RH,BLK | 1 | $39.99 | In stock | |
| 12 | 7518514 | BOLT-M8X1.25X25,HXFLG-OLIVE D | 4 | Price TBD | Out of stock | |
| 13 | 5459572 | ROLLER-CAM,LATCH | 2 | $10.99 | In stock | |
| 14 | 7556337 | WASHER-FLAT | 2 | $2.29 | In stock | |
| 15 | 7547120 | NUT-HEX-M6X1.0 8 SPC | 2 | Price TBD | Out of stock | |
| 16 | 5450278 | HANDLE-BOX, LATCH | 2 | Price TBD | Out of stock | |
| 17 | 5417966 | BUMPER-CARGO BOX | 2 | $5.99 | In stock | |
| 18 | 7661067 | CLIP-HITCHPIN .148X3 1/16 | 2 | Price TBD | Out of stock | |
| 19 | 7661878 | PIN-CLEVIS,1/2 X 1 3/4 | 2 | Price TBD | Out of stock | |
| 20 | 7519112 | SCREW-TXTH-M6X1.0X20 T40 ZPB | 2 | Price TBD | Out of stock | |
| 21 | 5272821-458 | BRKT-MOUNT,BOX SHOCK, BLK | 1 | $39.99 | In stock | |
| 22 | 7046189 | SHOCK-BOX,XP | 1 | $104.99 | Out of stock Est. Aug 10, 2026 | |
| 23 | 7041687 | SPRING-EXHAUST | 2 | Price TBD | Out of stock | |
| 24 | 7547790 | NUT-RIVNUT,HEX,M6X1.00 | 14 | Price TBD | Out of stock |
