Schematic diagram
Polaris•Schematic assembly
BODY, HVAC CONDENSER AND HOSES
Product Description

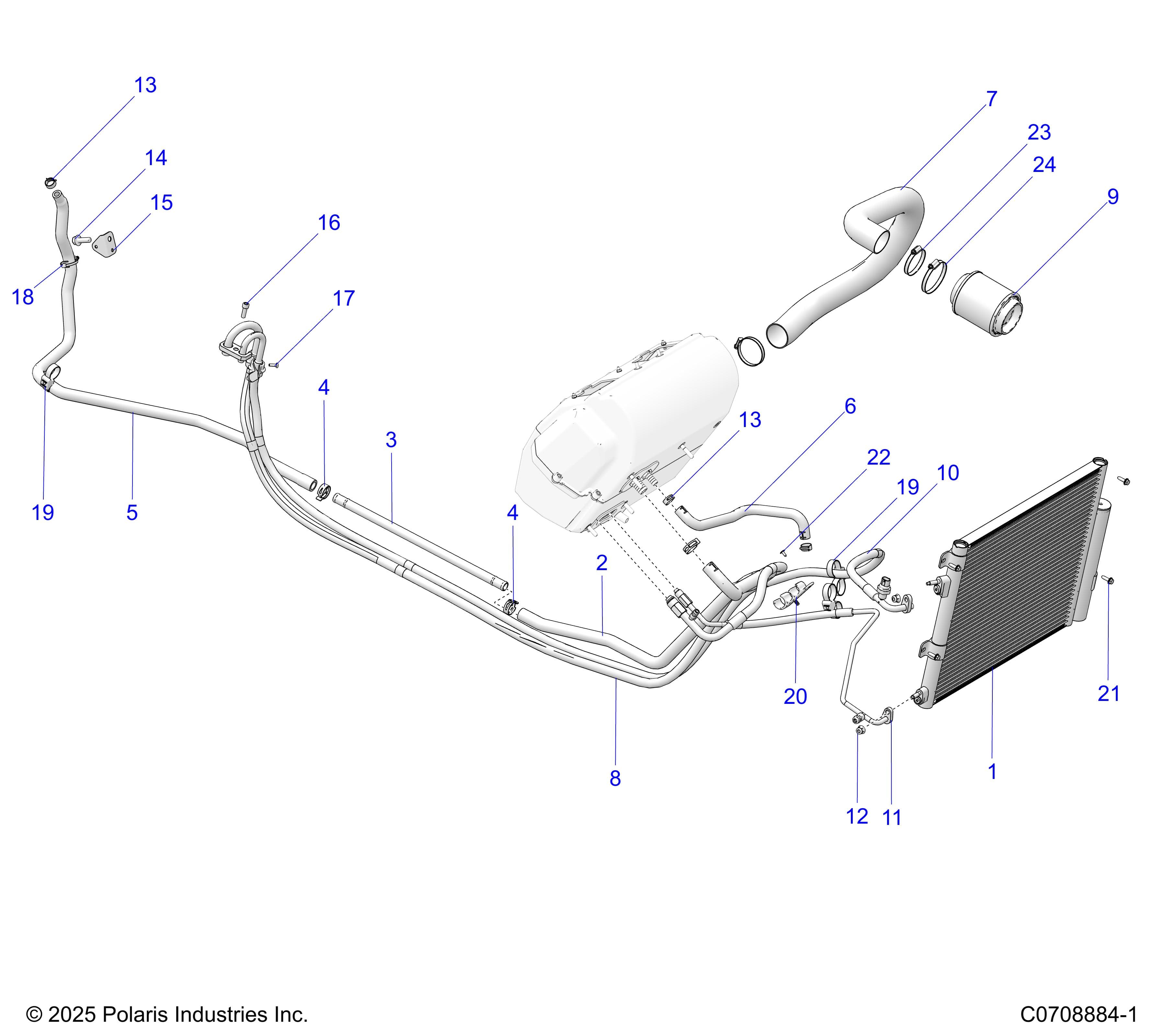

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 243161
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1244932 | CONDENSER-HVAC | 1 | $924.99 | In stock | |
| 2 | 1241453 | ASM-HOSE,HEATER [INCLUDES 2, 3 & QTY 1 OF 4] | 1 | $154.99 | Out of stock Est. Aug 3, 2026 | |
| 2 | 5417311 | HOSE-HEATER FRONT | 1 | $54.99 | In stock | |
| 3 | 5342561 | TUBE-HVAC,COOLANT,2P | 1 | $114.99 | In stock | |
| 4 | 7080841 | SPRINGBAND-CLAMP 27/12,GREEN | 3 | Price TBD | Out of stock | |
| 5 | 5417312 | HOSE-HEATER REAR | 1 | $119.99 | In stock | |
| 6 | 5417313 | HOSE-HEATER RETURN | 1 | $17.99 | In stock | |
| 7 | 5417314 | HOSE-FRESH AIR | 1 | $17.99 | In stock | |
| 8 | 5419270 | HOSE-ASM,A/C #10 HVAC [INCLUDES SEAL & CAP] | 1 | $319.99 | In stock | |
| 8 | 3610362 | SEAL-WASHER,#10 | 1 | $3.99 | In stock | |
| 8 | 5457935 | CAP-HVAC,SERVICE PORT LOW [CAP ONLY] | 1 | $2.99 | In stock | |
| 9 | 1262218 | ASM-FILTER,AIR BOX | 1 | Price TBD | Out of stock | |
| 10 | 5419280 | HOSE-ASM,A/C #8 [INCLUDES SEAL] | 1 | $324.99 | In stock | |
| 10 | 3610361 | SEAL-WASHER,#8 | 1 | $4.99 | In stock | |
| 11 | 5419271 | HOSE-ASM,A/C #6 HVAC [INCLUDES CAP] | 1 | $174.99 | In stock | |
| 11 | 5457936 | CAP-HVAC,SERVICE PORT HIGH [CAP ONLY] | 1 | $4.99 | In stock | |
| 12 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 13 | 7081026 | CLAMP-HOSE,SPRING .81 | 3 | Price TBD | Out of stock | |
| 14 | 7521333-30 | SCR-HXFL-M10X1.5X30 10.9 ZFB | 1 | $2.99 | In stock | |
| 15 | 5272002-329 | BRACKET-HEATER HOSE,ECOAT | 1 | $15.99 | In stock | |
| 16 | 7519859 | SCREW-SH-M8X1.25X25 8.8 ZPC | 1 | Price TBD | Out of stock | |
| 17 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 1 | Price TBD | Out of stock | |
| 18 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 19 | 7081807 | CABLE-TIE,DIA14-45MM,DUAL-LOOP | 3 | Price TBD | Out of stock | |
| 20 | 5458511 | CLIP-ROUTING,HVAC | 1 | $4.99 | In stock | |
| 21 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 22 | 7662408 | RIVET-POP 5/32(.188-.250)-LF-B | 1 | Price TBD | Out of stock | |
| 23 | 7080511 | CLAMP-NARROW BAND, 1.38/2.38 | 2 | Price TBD | Out of stock | |
| 24 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | Price TBD | Out of stock |
