Schematic diagram
Polaris•Schematic assembly

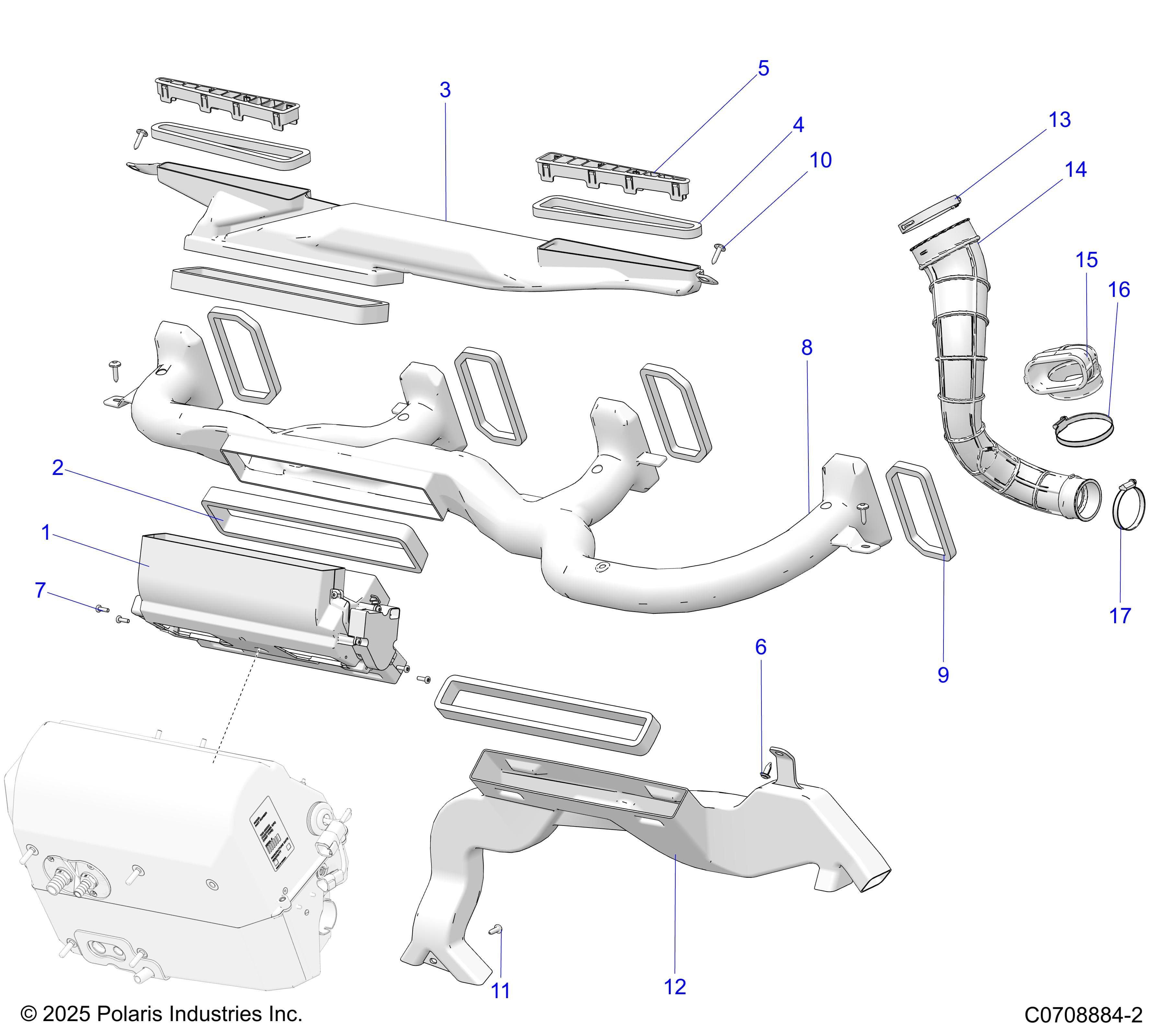

BODY, HVAC DUCTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 243162
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1241456 | ASM-MODE CONTROL [SEE BODY, HVAC ASM-MODE CONTROL INTERNALS] | 1 | $329.99 | In stock | |
| 2 | 5815649 | GASKET-DUCT | 3 | $11.99 | In stock | |
| 3 | 5467024 | DUCT-AIR,DEFROST | 1 | $119.99 | Out of stock | |
| 4 | 5815161 | GASKET-DASH,DEFROST | 2 | $6.99 | In stock | |
| 5 | 5465247 | VENT-DEFROST | 2 | $44.99 | In stock | |
| 6 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 1 | Price TBD | Out of stock | |
| 7 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 4 | Price TBD | Out of stock | |
| 8 | 5467025 | DUCT-AIR,PANEL | 1 | $139.99 | In stock | |
| 9 | 5815160 | GASKET-PANEL,DASH | 4 | $8.99 | In stock | |
| 10 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 4 | Price TBD | Out of stock | |
| 11 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 1 | Price TBD | Out of stock | |
| 12 | 5457006 | DUCT-AIR,FLOOR | 1 | $109.99 | In stock | |
| 13 | 7082805 | CLAMP-HOSE SLOTTED,84-96 DIA | 1 | Price TBD | Out of stock | |
| 14 | 5417567 | DUCT-ALTERNATOR,INLET | 1 | $144.99 | In stock | |
| 15 | 5417845 | DUCT-ALTERNATOR,AIR OUTLET | 1 | Price TBD | Out of stock | |
| 16 | 7081279 | CLAMP-BAND,NARROW 70-90MM | 1 | Price TBD | Out of stock | |
| 17 | 7080511 | CLAMP-NARROW BAND, 1.38/2.38 | 1 | Price TBD | Out of stock |
