Polaris•Schematic assembly

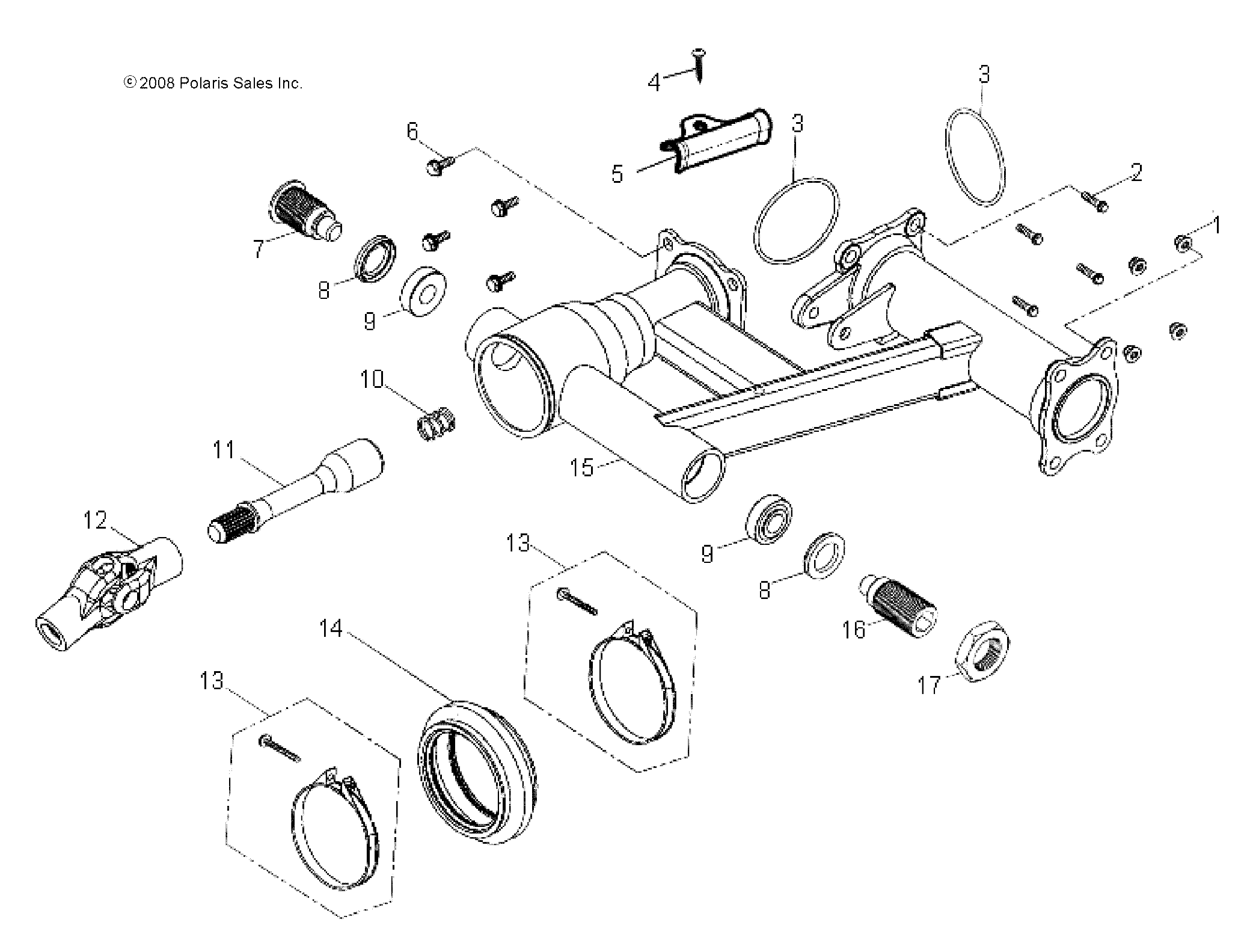

CHASSIS, REAR SWING ARM - A26YPA20A4 (49ATVSWINGARMRR07PHX)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 PHOENIX 200 R01 - A26YPA20A4 Assembly ID: 243289
Vehicle Compatibility
- 2026 Polaris PHOENIX 200 R01 - A26YPA20A4
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 0453866 | NUT | 4 | $1.99 | In stock | |
| 2 | 0452615 | BOLT | 4 | $5.99 | In stock | |
| 3 | 0452613 | O-RING | 2 | $3.49 | In stock | |
| 4 | 0451703 | Screw, Tapping w/Washer | 1 | $4.99 | In stock | |
| 5 | 0453763 | RETAINER, BRAKE CABLE, REAR | 1 | $9.99 | In stock | |
| 6 | 0452614 | BOLT | 4 | $4.99 | In stock | |
| 7 | 0452610 | BOLT, PIVOT | 1 | $84.99 | In stock | |
| 8 | 0452609 | SEAL, OIL | 2 | $24.99 | In stock | |
| 9 | 0452608 | BEARING | 2 | $79.99 | In stock | |
| 10 | 0452605 | SPRING | 1 | $8.99 | In stock | |
| 11 | 0452606 | SHAFT, DRIVE | 1 | $104.99 | In stock | |
| 12 | 0452607 | JOINT, UNIVERSAL | 1 | $274.99 | In stock | |
| 13 | 0452617 | CLAMP | 2 | $12.99 | In stock | |
| 14 | 0452616 | BOOT | 1 | $16.99 | In stock | |
| 15 | 0453764-067 | ARM, SWING, BLACK | 1 | $364.99 | In stock | |
| 16 | 0452611 | BOLT, PIVOT | 1 | $44.99 | In stock | |
| 17 | 0452612 | NUT, LOCK | 1 | $29.99 | In stock |
