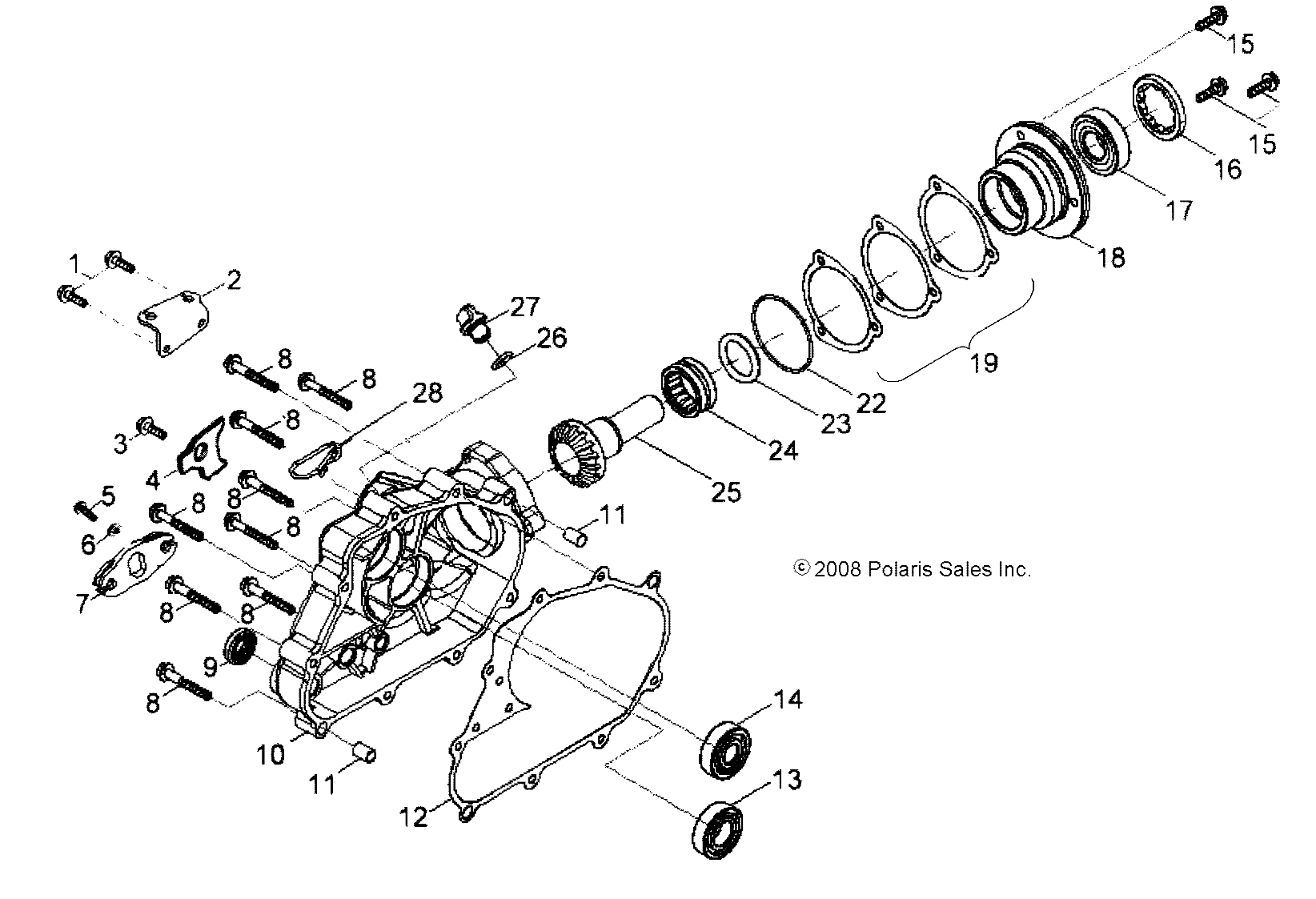

2026 PHOENIX 200 R01 - A26YPA20A4 — DRIVE TRAIN, REAR DRIVE ASSEMBLY - A26YPA20A4 (49ATVDRIVERR09PHX) diagram

Schematic diagram

Polaris•Schematic assembly

DRIVE TRAIN, REAR DRIVE ASSEMBLY - A26YPA20A4 (49ATVDRIVERR09PHX)

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 PHOENIX 200 R01 - A26YPA20A4 Assembly ID: 243291

Vehicle Compatibility

  • 2026 Polaris PHOENIX 200 R01 - A26YPA20A4

Checkout Note

Add all available parts in this assembly to your cart. You can also add individual parts using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
10453814BOLT2$4.99
In stock
20454223BRACKET, GEARCASE1$14.99
In stock
30453505BOLT1$4.99
In stock
40453245RETAINER, SIGHT GLASS1$5.99
In stock
50454011BOLT, HEX WASHER1$4.99
In stock
60452337WASHER, FLAT1$4.99
In stock
70454224DETENT, SHIFT LEVER1$44.99
In stock
80452343BOLT, FLANGE9$4.99
In stock
90452175SEAL, OIL1$14.99
In stock
100454225COVER, TRANSMISSION1$369.99
In stock
110450142PIN, DOWEL2$4.99
In stock
120455490GASKET-TRANSMISSION COVER1$13.99
In stock
130452346BEARING, BALL, ID 20MM1$39.99
In stock
140452347BEARING, BALL, ID 15MM1$39.99
In stock
150452350BOLT3$4.99
In stock
160452355NUT, LOCK1$34.99
In stock
170452354BEARING, BALL1$54.99
In stock
180452351COLLAR, GEAR SHAFT1$114.99
In stock
190452352SHIM, SET1$16.99
In stock
220452353O-RING1$2.99
In stock
230452357SEAL, OIL1$19.99
In stock
240452358BEARING, NEEDLE, ID 30MM1$89.99
In stock
250452356GEAR, SHAFT, OUTPUT1$134.99
In stock
260452394O-Ring, Head Cover Cap1$1.99
In stock
270451813PLUG, OIL1$6.99
In stock
280454226RETAINER, GUIDE1$13.99
In stock
