Polaris•Schematic assembly

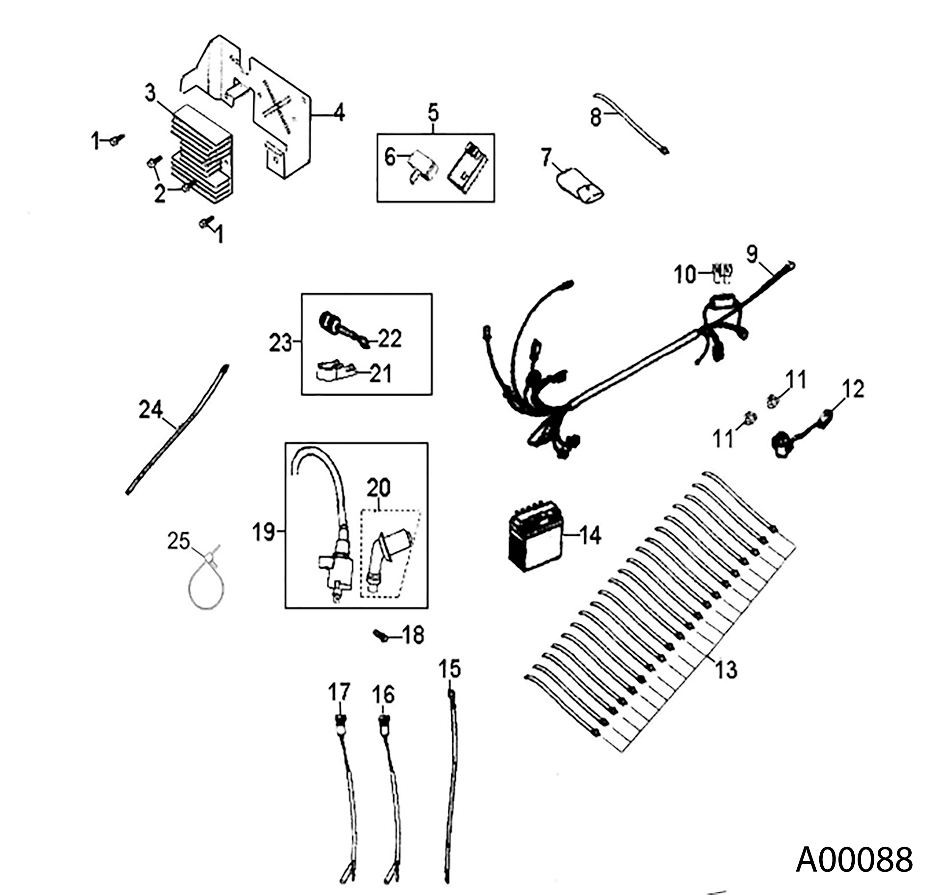

ELECTRICAL PARTS - A26YPA20A4 (A00088)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 PHOENIX 200 R01 - A26YPA20A4 Assembly ID: 243294
Vehicle Compatibility
- 2026 Polaris PHOENIX 200 R01 - A26YPA20A4
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 0453372 | KEY-BLANK,2006,LH,GRV [NOT PICTURED] | 1 | $39.99 | In stock | |
| - | 0453143 | KEY-BLANK,2006,RH GRV [NOT PICTURED] | 1 | $17.99 | In stock | |
| 1 | 0452917 | Bolt, Hex, Washer Face | 2 | $4.99 | In stock | |
| 2 | 0450701 | Bolt, Washer Face, Hex | 2 | $1.49 | In stock | |
| 3 | 0455311 | RECTIFIER/REGULATOR-PHOENIX | 1 | $131.49 | In stock | |
| 4 | 0452764 | BRACKET, ELECTRICAL | 1 | $79.99 | In stock | |
| 5 | 0455470 | ASM-CDI,200 [INCL. 6] | 1 | $354.99 | In stock | |
| 6 | 0453473 | PAD, RUBBER, CDI | 1 | $29.99 | In stock | |
| 7 | 0454245 | ASM., POUCH, TOOL | 1 | $74.99 | In stock | |
| 8 | 0450721 | STRAP | 1 | $3.99 | In stock | |
| 9 | 0455296 | ASM-HARNESS,MAIN,PHOENIX | 1 | Price TBD | Out of stock | |
| 10 | 0452744 | FUSE, MAIN HARNESS | 1 | $4.99 | In stock | |
| 11 | 0450150 | Nut, Hex, Flange | 2 | $1.49 | In stock | |
| 12 | 0452761 | ASM., STARTER RELAY | 1 | $109.99 | In stock | |
| 13 | 0450559 | STRAP-90569-131-000 | 20 | $2.99 | In stock | |
| 14 | 0455167 | Battery [TO 7/1/2024] | 1 | Price TBD | Out of stock | |
| 14 | 0455526 | BATTERY-AEON,RZR170 [FRM 7/1/2024] | 1 | $119.99 | In stock | |
| 15 | 0452767 | ASM., BATTERY CABLE | 1 | $59.99 | In stock | |
| 16 | 0454669 | INDICATOR, NEUTRAL | 1 | $39.99 | In stock | |
| 17 | 0454670 | INDICATOR, REVERSE | 1 | $29.99 | In stock | |
| 18 | 0452763 | BOLT-HEX,SEMS | 1 | $3.99 | In stock | |
| 19 | 0452309 | Asm., Ignition Coil | 1 | $134.99 | In stock | |
| 20 | 0453364 | CAP, SPARK PLUG | 1 | $44.99 | In stock | |
| 21 | 0450886 | Clip, Main Switch | 1 | $6.99 | In stock | |
| 22 | ------- | Switch, Main | 1 | Price TBD | Out of stock | |
| 23 | 0455547 | Asm., Switch, Main [INCL. 21,22,26,27] | 1 | $89.99 | In stock | |
| 24 | 0453144 | CABLE, ETC, CONNECTING | 1 | $39.99 | In stock | |
| 25 | 7082003 | CABLE-TIE,DIA2.5-34MM,FIR-TREE | 1 | Price TBD | Out of stock |
