Schematic diagram

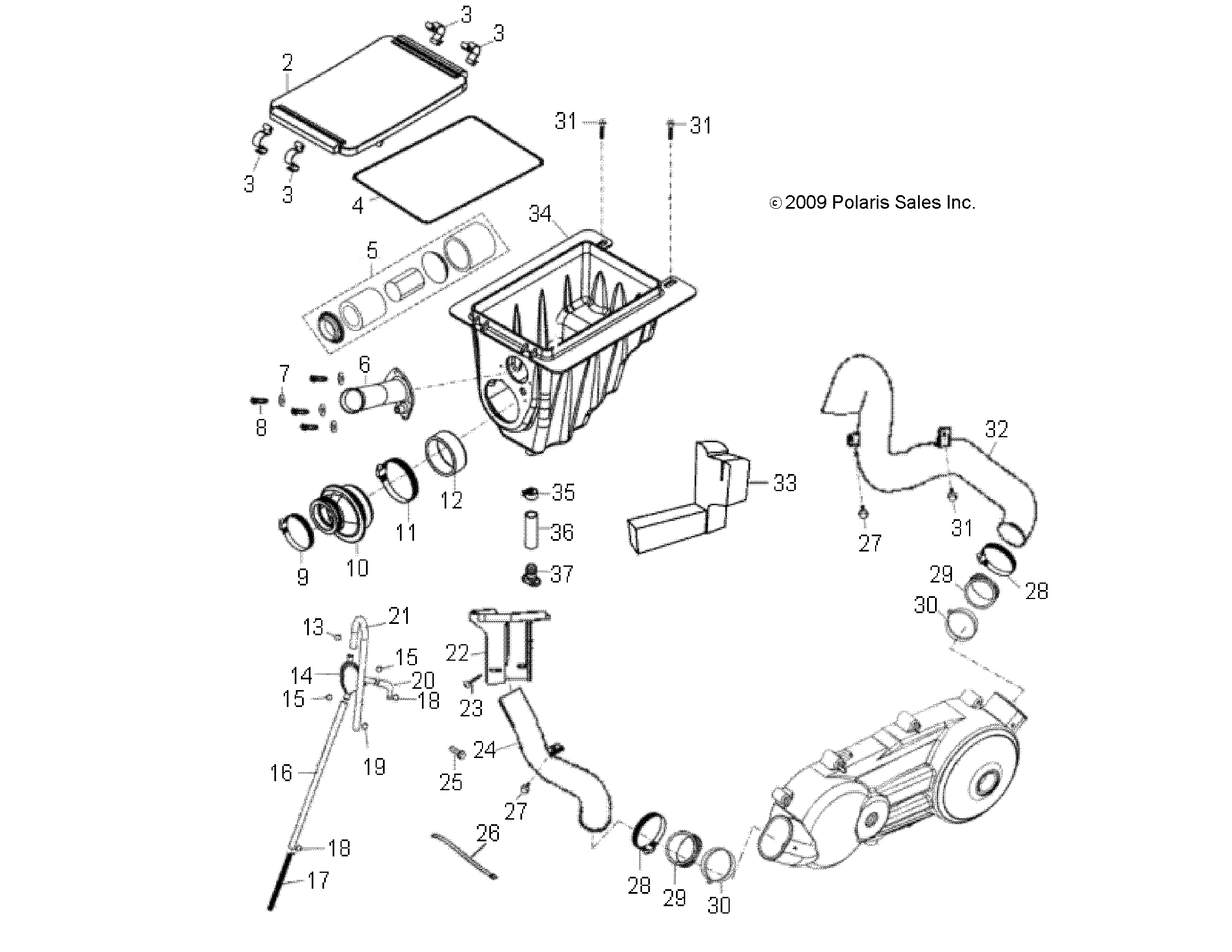

Polaris•Schematic assembly
ENGINE, AIR INTAKE SYSTEM - A26YPA20A4 (49ATVAIRBOX10PHX)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 PHOENIX 200 R01 - A26YPA20A4 Assembly ID: 243295
Vehicle Compatibility
- 2026 Polaris PHOENIX 200 R01 - A26YPA20A4
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 2 | 0452560 | COVER, AIR BOX | 1 | $49.99 | In stock | |
| 3 | 0452565 | CLIP, AIR BOX | 4 | $5.99 | In stock | |
| 4 | 0452569 | GASKET, COVER | 1 | $12.99 | In stock | |
| 5 | 0452306 | Element, Air Cleaner | 1 | Price TBD | Out of stock | |
| 6 | 0453085 | Inlet, Air Box | 1 | Price TBD | Out of stock | |
| 7 | 0453098 | WASHER, FLAT | 4 | $4.99 | In stock | |
| 8 | 0453097 | RIVET | 4 | $3.99 | In stock | |
| 9 | 0452562 | Clamp | 2 | $9.99 | In stock | |
| 10 | 0452563 | Boot, Carb | 1 | $34.99 | In stock | |
| 11 | 0452561 | CLAMP | 1 | $9.99 | In stock | |
| 12 | 0452557 | SPACER, AIR FILTER | 1 | $29.99 | In stock | |
| 13 | 0452796 | CLIP | 1 | $4.99 | In stock | |
| 14 | 0453184 | SEPARATOR, OIL | 1 | $84.99 | In stock | |
| 15 | 0450865 | Asm., Fuel Line and Clip | 2 | $14.99 | In stock | |
| 16 | 0452794 | TUBE, BREATHER, VENTILATED | 1 | $64.99 | In stock | |
| 17 | 0452793 | SPRING | 1 | $8.99 | In stock | |
| 18 | 0450054 | CLIP-94510-08000 | 2 | $1.49 | In stock | |
| 19 | 0452795 | Clip | 1 | $4.99 | In stock | |
| 20 | 0450363-083 | Tube, Breather, Inlet | 1 | $7.99 | In stock | |
| 21 | 0450363-475 | Tube, Breather, Outlet | 1 | $44.99 | In stock | |
| 22 | 0452579 | Cover, Duct, Inlet | 1 | $44.99 | In stock | |
| 23 | 0451703 | Screw, Tapping w/Washer | 1 | $4.99 | In stock | |
| 24 | 0452575 | Duct, Inlet, Air Box | 1 | $104.99 | In stock | |
| 25 | 0454011 | BOLT, HEX WASHER | 1 | $4.99 | In stock | |
| 26 | 0450559 | STRAP-90569-131-000 | 1 | $2.99 | In stock | |
| 27 | 0450824 | Bolt, Hex, Washer Face | 2 | $2.99 | In stock | |
| 28 | 0452578 | CLAMP | 2 | $6.99 | In stock | |
| 29 | 0453190 | BOOT, DUCT | 2 | $16.99 | In stock | |
| 30 | 0452577 | CLAMP | 2 | $12.99 | In stock | |
| 31 | 0452216 | BOLT-HEX | 3 | $4.99 | In stock | |
| 32 | 0452576 | DUCT, OUTLET | 1 | $124.99 | In stock | |
| 33 | 0453760 | FILTER, FOAM | 1 | $39.99 | Out of stock Est. Sep 30, 2026 | |
| 34 | 0452559 | Box, Air Intake | 1 | $169.99 | In stock | |
| 35 | 0452566 | CLAMP | 1 | $5.99 | In stock | |
| 36 | 0452567 | HOSE, DRAIN | 1 | $5.99 | In stock | |
| 37 | 0452568 | PLUG, TRAP | 1 | $16.99 | Out of stock Est. Sep 28, 2026 |
