Polaris•Schematic assembly

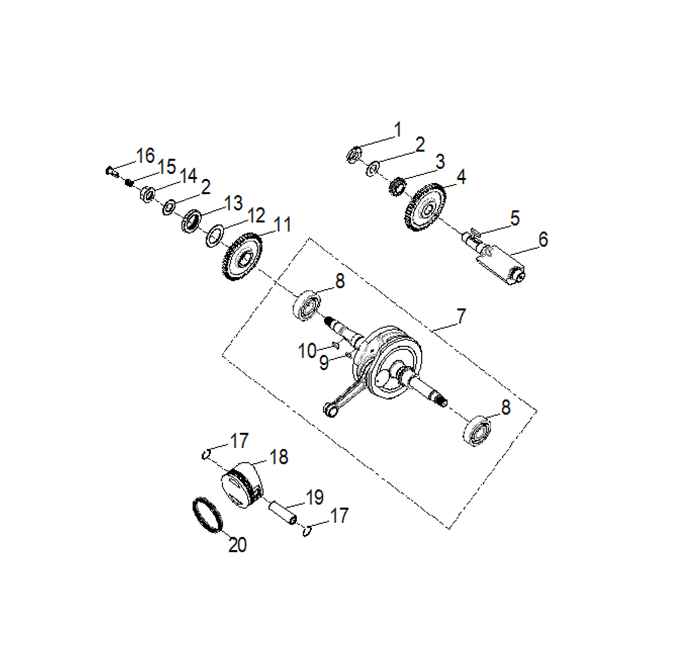

ENGINE, CRANKSHAFT and PISTON - A26YPA20A4 (A00035)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 PHOENIX 200 R01 - A26YPA20A4 Assembly ID: 243300
Vehicle Compatibility
- 2026 Polaris PHOENIX 200 R01 - A26YPA20A4
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 0452438 | NUT, LOCK | 1 | $8.99 | In stock | |
| 2 | 0450264 | WASHER | 2 | $4.99 | In stock | |
| 3 | 0452436 | SPROCKET, OIL PUMP, DRIVE | 1 | $49.99 | Out of stock Est. Nov 6, 2026 | |
| 4 | 0452437 | GEAR, BALANCE, DRIVEN | 1 | $94.99 | In stock | |
| 5 | 0452439 | KEY, WOODRUFF | 1 | $9.99 | In stock | |
| 6 | 0452435 | Shaft, Balance | 1 | $84.99 | In stock | |
| 7 | 0453020 | ASM., CRANKSHAFT [INCL. 8,9,10] | 1 | $829.99 | In stock | |
| 8 | 0452427 | Bearing, Ball | 2 | $59.99 | In stock | |
| 9 | 0452430 | Key, Woodruff | 1 | $6.99 | In stock | |
| 10 | 0452429 | Key, Woodruff | 1 | $6.99 | In stock | |
| 11 | 0452434 | Gear, Balance | 1 | $109.99 | In stock | |
| 12 | 0452440 | Washer, Gear | 1 | $5.99 | In stock | |
| 13 | 0452441 | Nut, Lock | 1 | $8.99 | In stock | |
| 14 | 0452442 | Nut, Flange | 1 | $9.99 | In stock | |
| 15 | 0452444 | Spring, Oil | 1 | $6.99 | In stock | |
| 16 | 0452445 | TUBE, OIL, CRANKSHAFT | 1 | Price TBD | Out of stock | |
| 17 | 0452443 | Clip, Piston Pin | 2 | $4.99 | In stock | |
| 18 | 0452432 | Piston | 1 | $129.99 | In stock | |
| 19 | 0452433 | Pin, Piston | 1 | $29.99 | In stock | |
| 20 | 0452431 | Ring | 1 | $74.99 | In stock |
